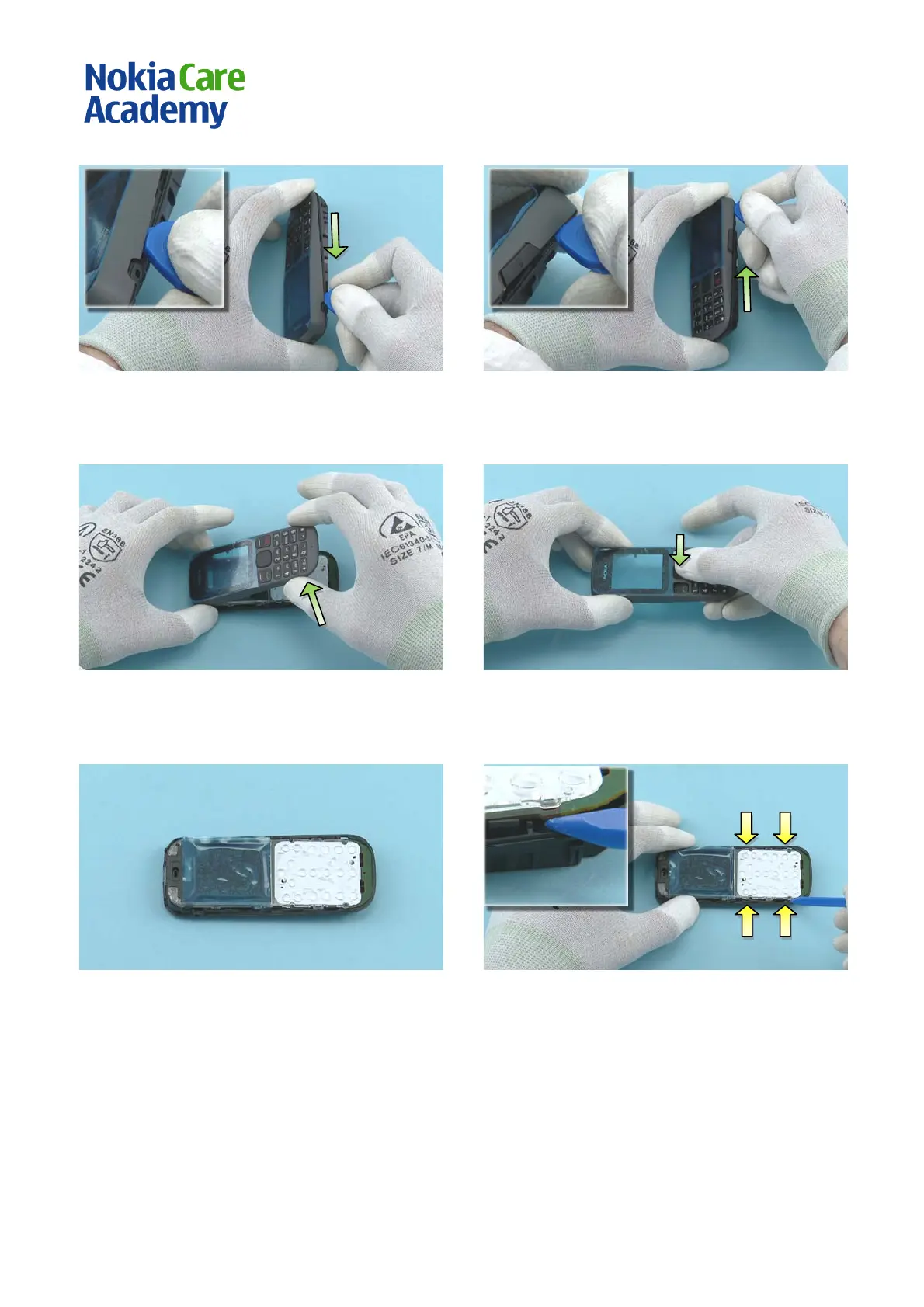

7) Open the left side of the A-COVER by sliding the
SRT-6 to direction shown.
8) Open also the right side of the A-COVER by sliding
the SRT-6 to direction shown.
9) Flip the A-COVER open from the bottom side and
remove it.
10) Push down remove the KEYMAT.
11) Protect the DI SPL AY with protective film.
12) Lift the ENGINE BOARD up from the bottom side
by releasing the four shown clips with the sharp end
of the SS-93.
