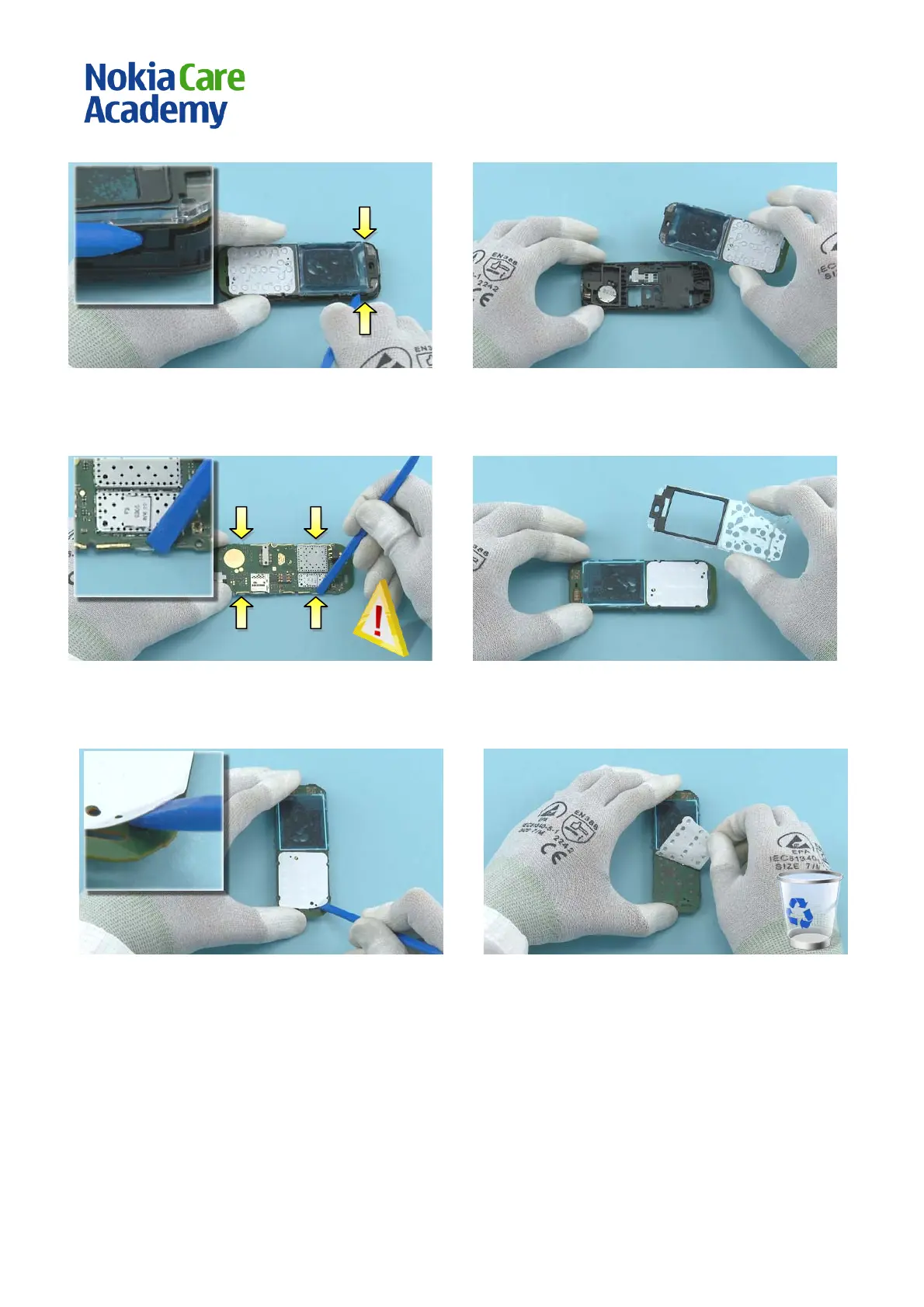

13) Lif t up the ENGI NE BOARD from the top side by
releasing the two shown clips with the sharp end of
the SS-93.
14) Remove the ENGINE BOARD.
15) Use the SS-93 to release the four shown clips
holding the LIGHT GUIDE. Be careful not to damage
any nearby components.
16) Remove the LIGHT GUIDE.
17) Peel off one corner of the DOMESHEET with the
SS-93.
18) Peel off and remove the DOMESHEET. Do not use
it again. Discard it.
