Nokia 101 (RM-769)
Nokia 100 (RH-130/RH-131)
L1L2 Service Manual
9
Co nf id e nt ial | Co p yrig ht © 2011 Nokia | A ll rights reserved
V e rsion 1 .0

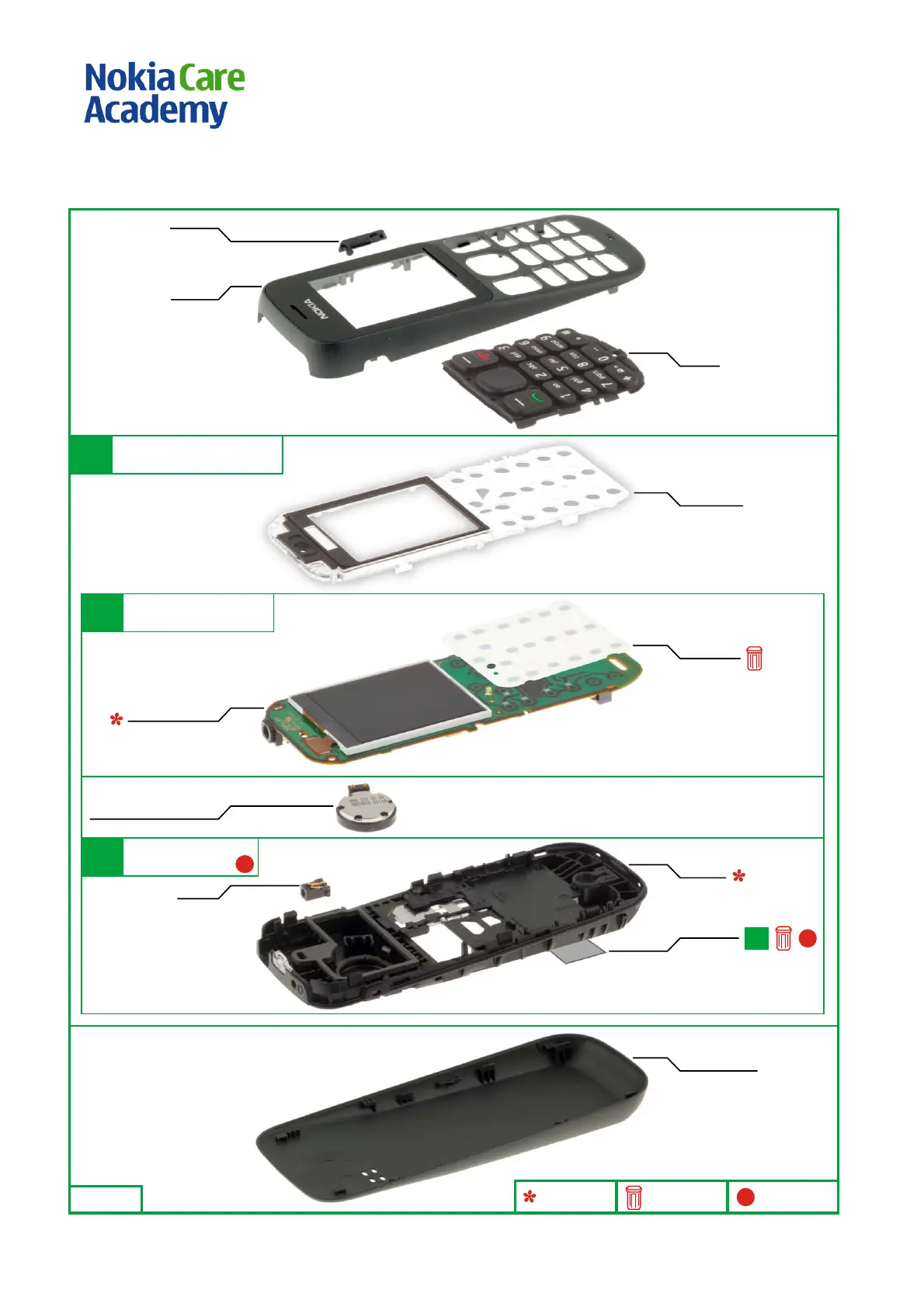

6. EXPLODED VIEW NOKIA 101 RM-769
Ver. 1.0
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
L3
L3
L3
A1
ATO SWAP PACKAGE
(I0004, A2, I0008, A3)
A2
A2
LIGHT SWAP PACKAGE
(I0005 - I0007)
A3
D-COVER ASSEMBLY
(I0009 - I0010)
A-COVER
I0001
LIGHT SWAP PWB
I0006
EARPIECE/SPEAKER/VIBRA
I0008
DC JACK
I0009
KEYMAT
I0003
LIGHT GUIDE
I0004
DOMESHEET
I0005
D-COVER
I0010
BATTERY COVER
I0011
TYPE LABEL
I0007
SD DOOR
I0002
