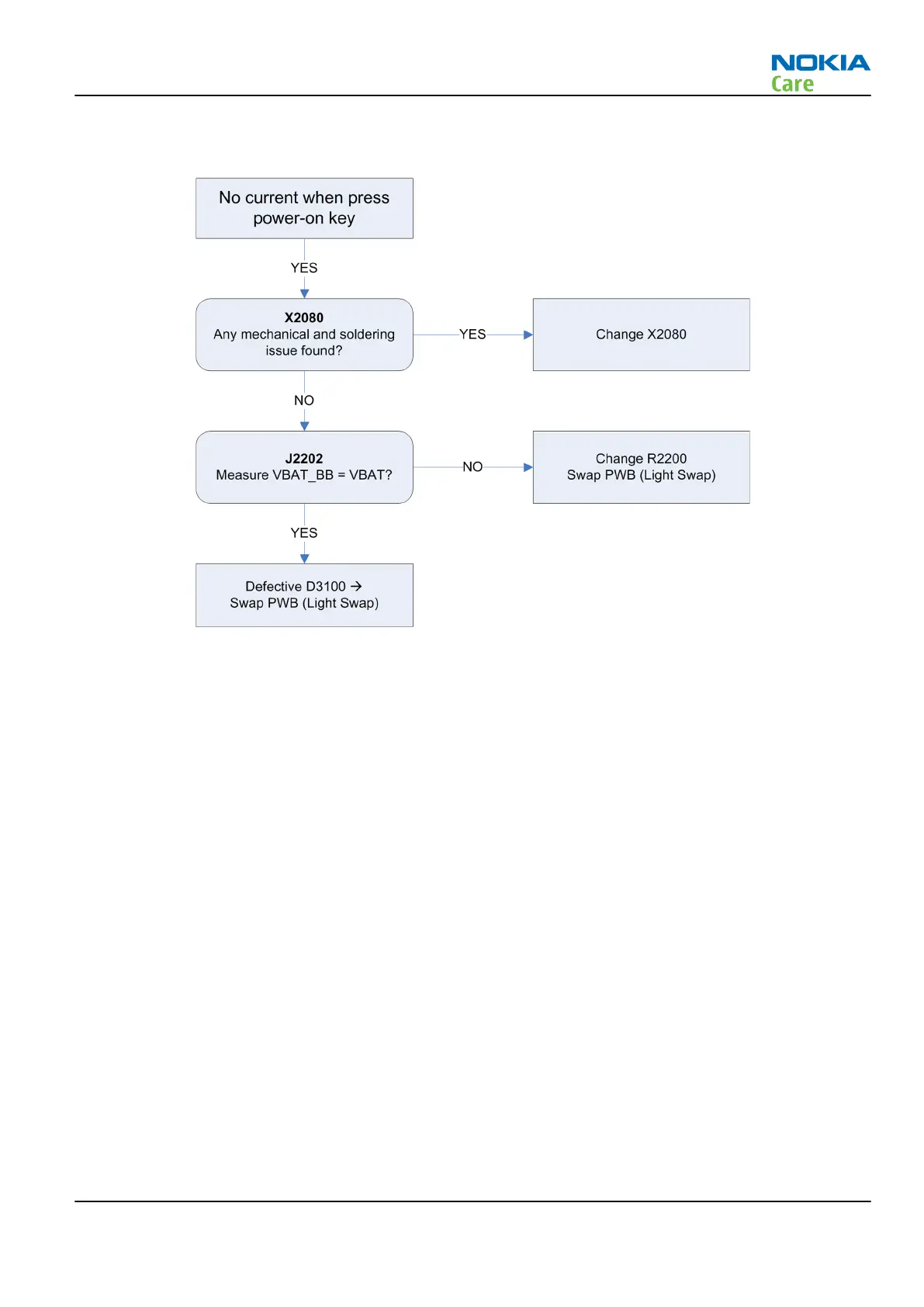

No current when pressing power on key
Figure 8 No current when pressing power on key
Clocking system troubleshooting
26 MHz clock does not work
If the 26 MHz crystal does not work, it may be due to B7100 malfunction or a soldering defect.
RM-761; RM-799; RM-800
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 – 9
Copyright © 2011 Nokia. All rights reserved.
