Audio troubleshooting
Audio troubleshooting test instructions
Audio troubleshooting using phoenix:

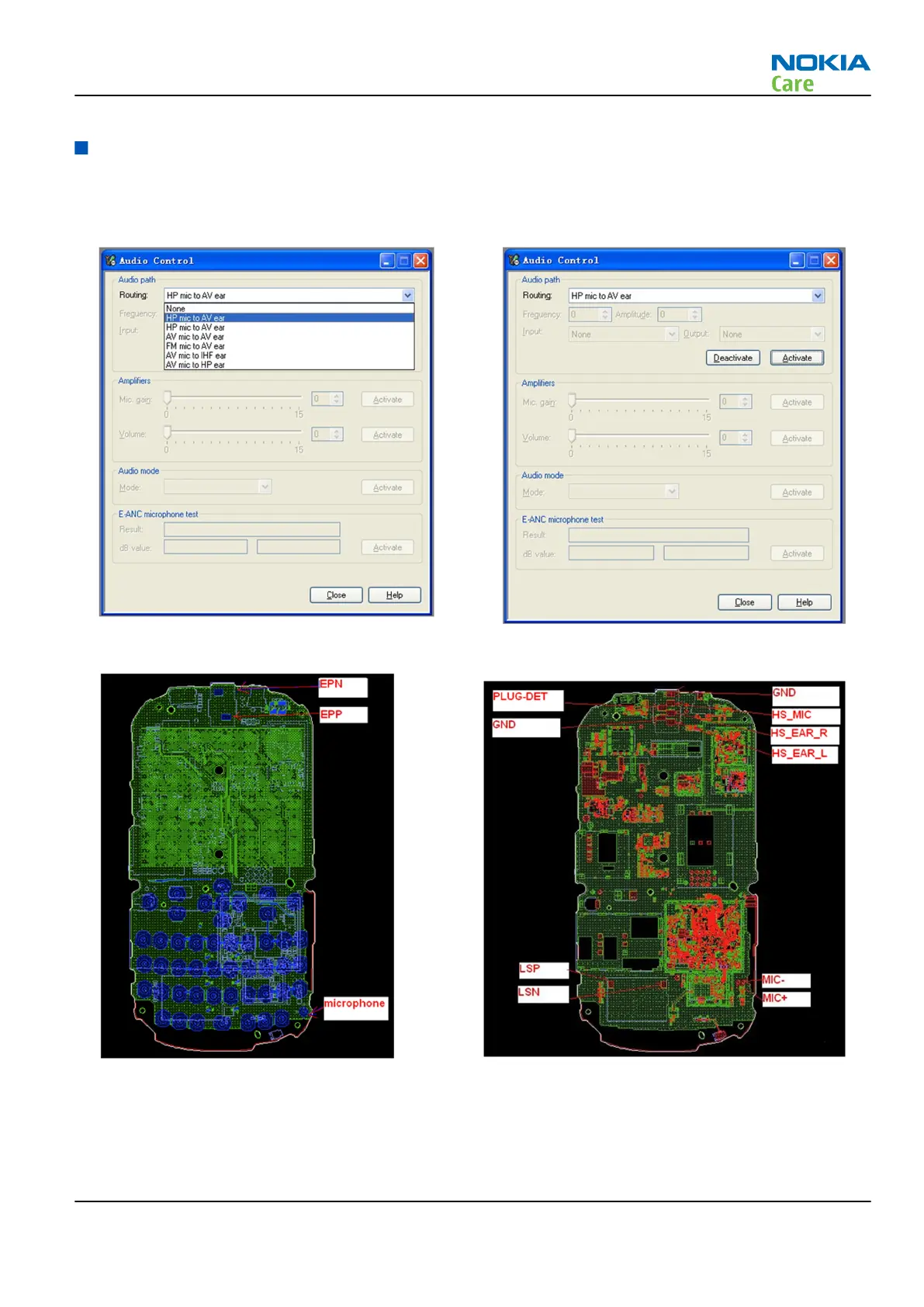

Figure 23 Phoenix audio control window
Figure 24 PWB audio test point
Internal microphone troubleshooting
Steps:
1 Connect phone with Phoenix.
RM-761; RM-799; RM-800
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 – 25
Copyright © 2011 Nokia. All rights reserved.
