Nokia 2630 RM-298 User Manual

7. Check if signal is detected at HS EAR L/R, shown in Figure 4-pole jack plug for audio accessory above.

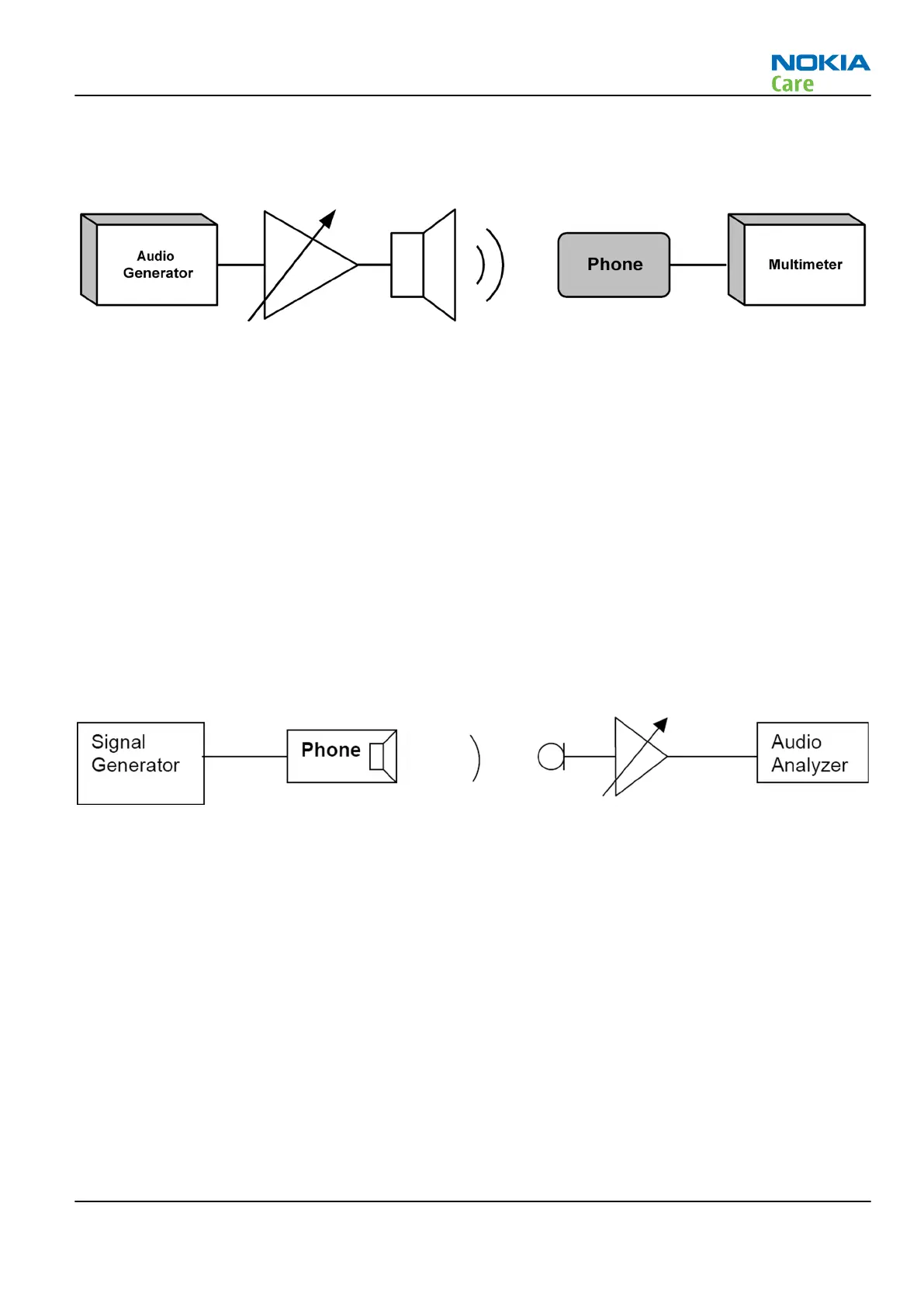

Figure 20 Test arrangement for microphone
Check earpiece using "Ext microphone in Hp speaker out" loop
Steps
1. Connect phone with Phoenix.
2. Open the
Audio Test window from Testing→ Audio test , as shown in Figure Phoenix audio test
window above.
3. Select Ext microphone in Hp speaker out.
4. Select Acc.Detection as Off.
5. Select Loop as On.
6. Input signal to HS MIC, as shown in Figure 4-pole jack plug for audio accessory above, for example
100mVpp, 1kHz.
7. Check if sound is heard in the earpiece.
Figure 21 Test arrangement for of earpiece
Check IHF & ringing tone function using "Buzzer"
Steps
1. Connect phone with Phoenix.
2. Open “audio test” window from “Testing -> Audio test”, as shown in Figure Phoenix audio test window
above.
3. In “Buzzer” area, select suitable signal to be played, for example 1 kHz, Strength 5”
4. Select “Volume” as “On”
RM-298; RM-299
Baseband Troubleshooting Instructions
Issue 1 COMPANY CONFIDENTIAL Page 3 –21
Copyright © 2007 Nokia. All rights reserved.

Nokia 2630 RM-298 Specifications

General

Network	GSM 900 / 1800
Status	Discontinued
Weight	66 g (2.33 oz)
SIM	Mini-SIM
Type	TFT, 65K colors
Memory Card slot	No
Phonebook	500 entries
Call records	20 dialed, 20 received, 20 missed calls
Internal	11 MB
Camera	VGA
Video	Yes
Alert types	Vibration; Downloadable polyphonic, MP3 ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Bluetooth	v2.0, A2DP
Radio	FM radio
Browser	WAP 2.0/xHTML
Games	Yes + Downloadable
Java	Yes, MIDP 2.0
Battery	Removable Li-Ion 700 mAh battery (BL-4B)
Stand-by	Up to 300 h
Talk time	Up to 6 h
Size	1.8 inches
Resolution	128 x 160 pixels
USB	Yes
Messaging	SMS, MMS
Colors	Black, Blue, Red
Dimensions	105 x 45 x 9.9 mm, 44 cc (4.13 x 1.77 x 0.39 in)
