Introduction
Phone description
RAP is the main digital baseband ASIC in the phone. It contains functionality for GSM EDGE. The hardware
accelerator is used as a camera accelerator.
N2200 (AVILMA) is mainly the audio ASIC in the phone and N2300 (BETTY) is basically the energy management
controller for the phone.
Key components
Function Description Item ref
Main board 2zu
Energy management ASIC AVILMA
BETTY
N2200
N2300
RF ASIC RF IC N1001
Processor RAPS_V3.03-PA D2800
PA GSM Front end module (FEM), quad band N1002
Memory 512 Mbit NOR + 256 Mbit DRAM Combo (Stacked with RAP) D3000
Bluetooth BCM2048 N6000
Battery BL-5C 1020 mAh/BL-5CA 700 mAh
Battery connector Lynx interface X2070
µUSB connector For data, support USB full speed AV flex:
X2002

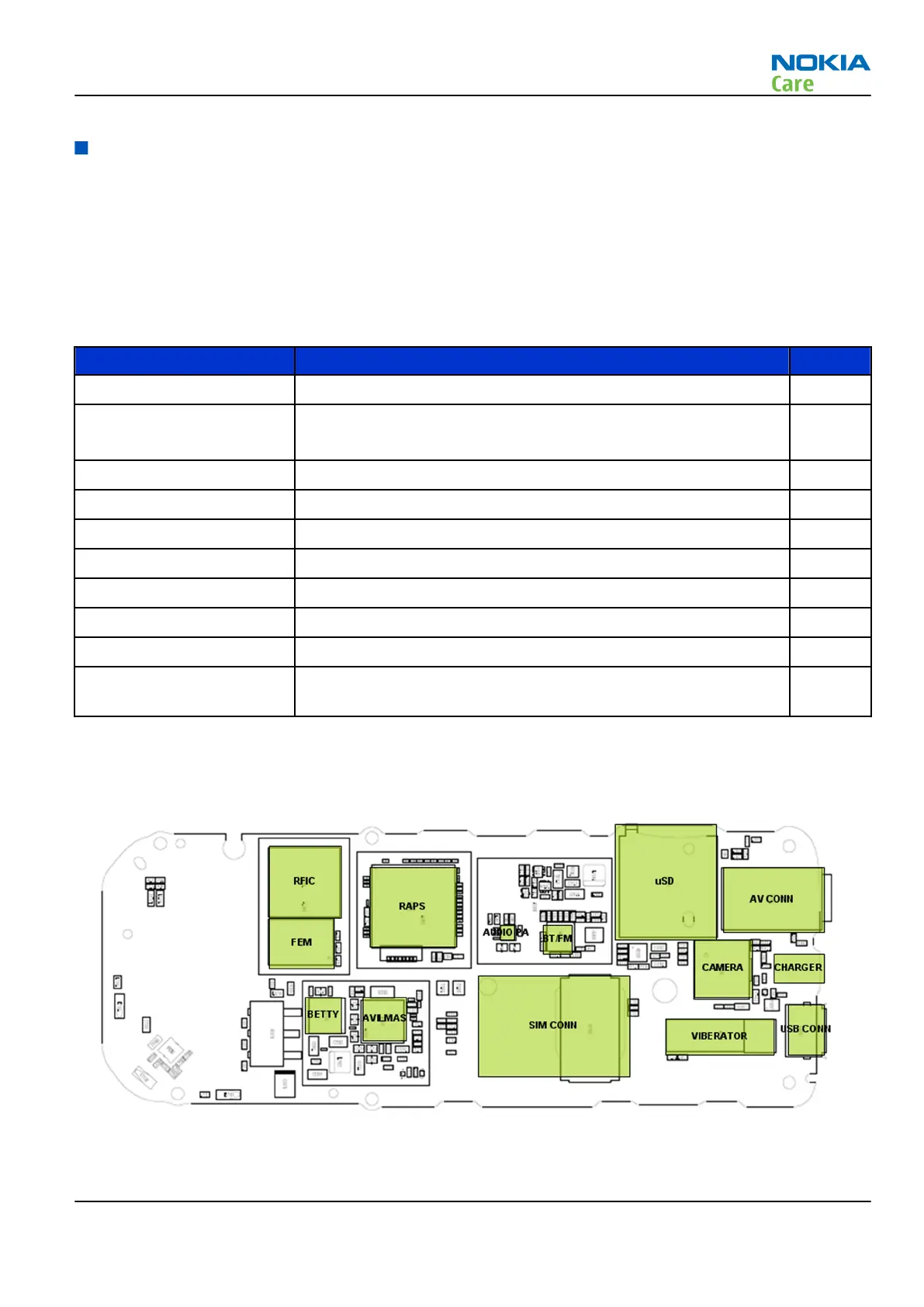

Key component placement
RM-561
System Module
Issue 1 COMPANY CONFIDENTIAL Page 5 –5
Copyright © 2009 Nokia. All rights reserved.
