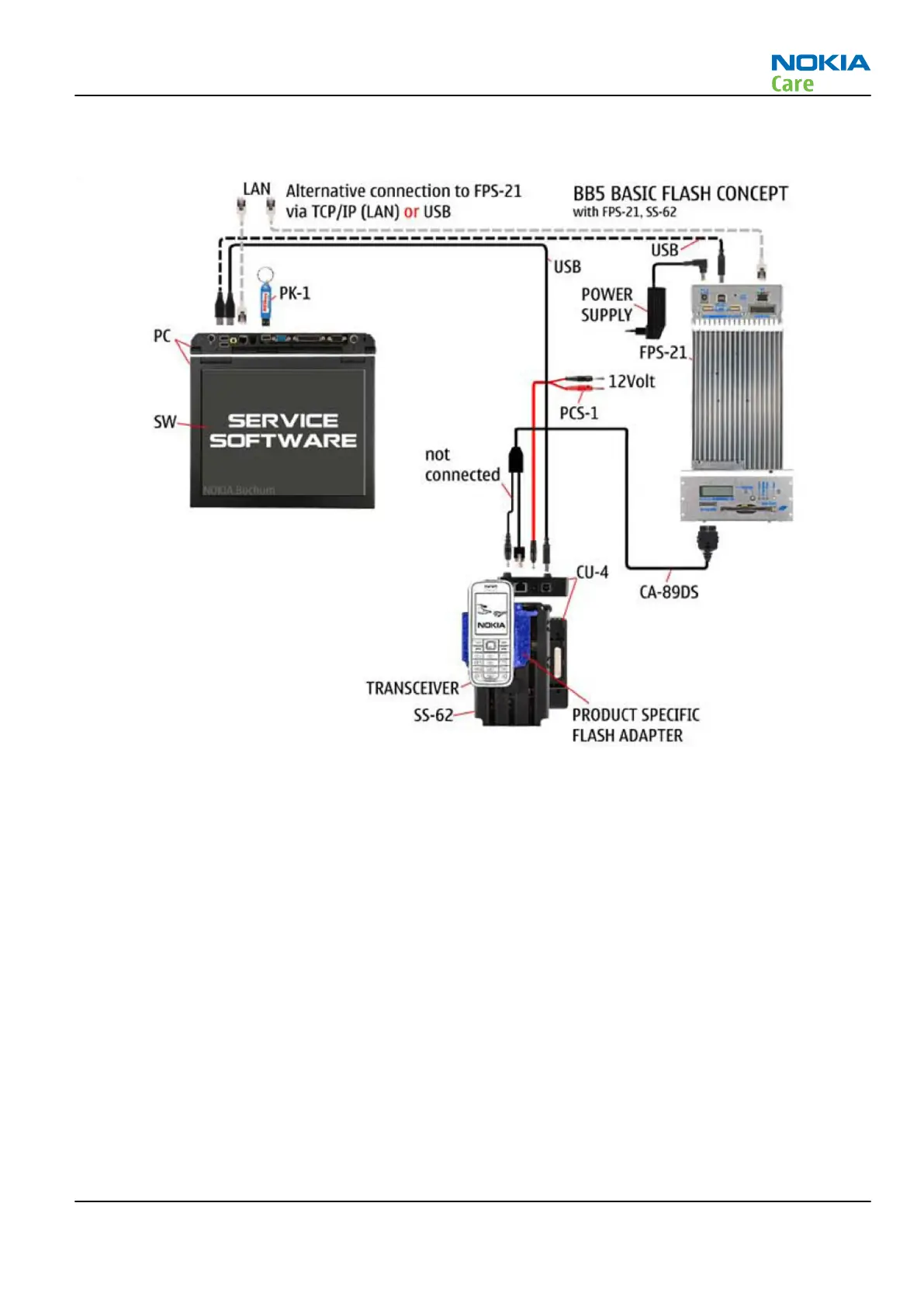

BB5 Basic Flash Concept with FPS-21, SS-62
Figure 8 BB5 Basic Flash Concept with FPS-21, SS-62
RM-561
Service Devices and Service Concepts
Issue 1
COMPANY CONFIDENTIAL
Page 2 –21
Copyright © 2009 Nokia. All rights reserved.
40
42
Table of Contents
Table of Contents
15
Product Selection
17
Phone Features
17
Figure 1 RM-561 (Nokia 2700C-2) Product Picture
17
User Interface and Software Features
18
Accessories
18
Table 1 Battery and Chargers
18
Table 2 Headsets
18
Technical Specifications
19
General Specifications
19
Battery Endurance
19
Table 3 Data Cables
19
Table of Contents
23
General Devices
25
Product Specific Devices
25
Service Devices
25
Fps-21
28
Cables
31
Ca-112Ds
32
Ca-35S
32
Ca-89Ds
32
Ca-99Ps
33
POS (Point of Sale) Flash Concept
35
Service Concepts
35
Flash Concept with FPS-10
36
Flash Concept with FPS-10
37
Module Jig Service Concept
38
RF Testing Concept with RF Coupler
39
BB5 Basic Flash Concept with FPS-21, SS-46
40
BB5 Basic Flash Concept with FPS-21, SS-62
41
BB5 Basic RF & BB Tune Concept with
42
BB5 Basic RF&BB Tune Concept with MJ-248
43
List of Figures
47
Baseband Self Tests in Phoenix
49
Dead or Jammed Device Troubleshooting
51
Power and Charging Troubleshooting
51
Charging Troubleshooting
53
General Power Checking
53
Flash Programming Fault Troubleshooting
55
Interface Troubleshooting
55
Combo Memory Troubleshooting
58
USB Interface Troubleshooting
59
SIM Card Troubleshooting
60
Keypad Troubleshooting
62
User Interface Troubleshooting
62
Display Module Troubleshooting
64
General Instructions for Display Troubleshooting
64
Display Troubleshooting
65
Keyboard Backlight Troubleshooting
66
SD Card Troubleshooting
67
Camera Troubleshooting
68
Audio Troubleshooting
70
Audio Troubleshooting Test Instructions
70
Internal Earpiece Troubleshooting
74
Internal Microphone Troubleshooting
75
Internal Handsfree (IHF) Troubleshooting
76
External Earpiece Troubleshooting
77
External Microphone Troubleshooting
78
Vibra Troubleshooting
79
Baseband Manual Tuning Guide
80
Certificate Restoring for BB5 Products
80
Energy Management Calibration
85
Table of Contents
89
General RF Troubleshooting
91
Introduction to RF Troubleshooting
91
Auto Tuning for RF
92
RF Key Components
92
General Voltage Checking
93
RF Selftests
94
Selftest Troubleshooting
94
Fatal Selftests Troubleshooting
96
Introduction to Receiver (RX) Troubleshooting
100
Receiver Troubleshooting
100
GSM RX Chain Activation for Manual Measurements/Gsm RSSI Measurement
101
General Instructions for Transmitter (TX) Troubleshooting
102
GSM Transmitter Troubleshooting
102
Transmitter Troubleshooting
102
Bluetooth and FM Radio Troubleshooting
104
Bluetooth Troubleshooting
104
FM Radio Troubleshooting
105
Table of Contents
109
Introduction
111
Phone Description
111
Battery and Charging
113
Energy Management
113
Normal and Extreme Voltages
114
Micro USB Interface
115
Modes of Operation
115
Power Key and System Power-Up
115
USB, SIM, Μsd
115
SIM Interface
116
Μsd Card Interface
116
Backlight and Illumination
117
Display Module
117
Keyboard
117
User Interface
117
Audio Concept
118
AV Connector
118
Receiver (RX)
119
RF Description
119
Bluetooth
120
Transmitter (TX)
120
Main RF Characteristics for GSM Band Phone
121
Technical Specifications
121
Environmental Conditions
