VMMC: 2.85 V (from level shifter)
•
VIO: 1.8 V (from AVILMA)
The card removal is detected by a push detect switch.
User interface
Display module
The interconnection between the LCD module and the engine is implemented with a 24-pin board-to-board
connector.
The LCD module does not require any tuning in service.
Keyboard
Table 8 Key signal matrix
GENIO ROW Col_0
(GENIO-39)
Col_1
(GENIO-40)
Col_2
(GENIO-41)
Col_3
(GENIO-42)
32 ROW0 Left SK Left Right SK Right
33 ROW1 Send UP Action Down
34 ROW2 1 4 7 *
35 ROW3 2 5 8 0
36 ROW4 3 6 9 #

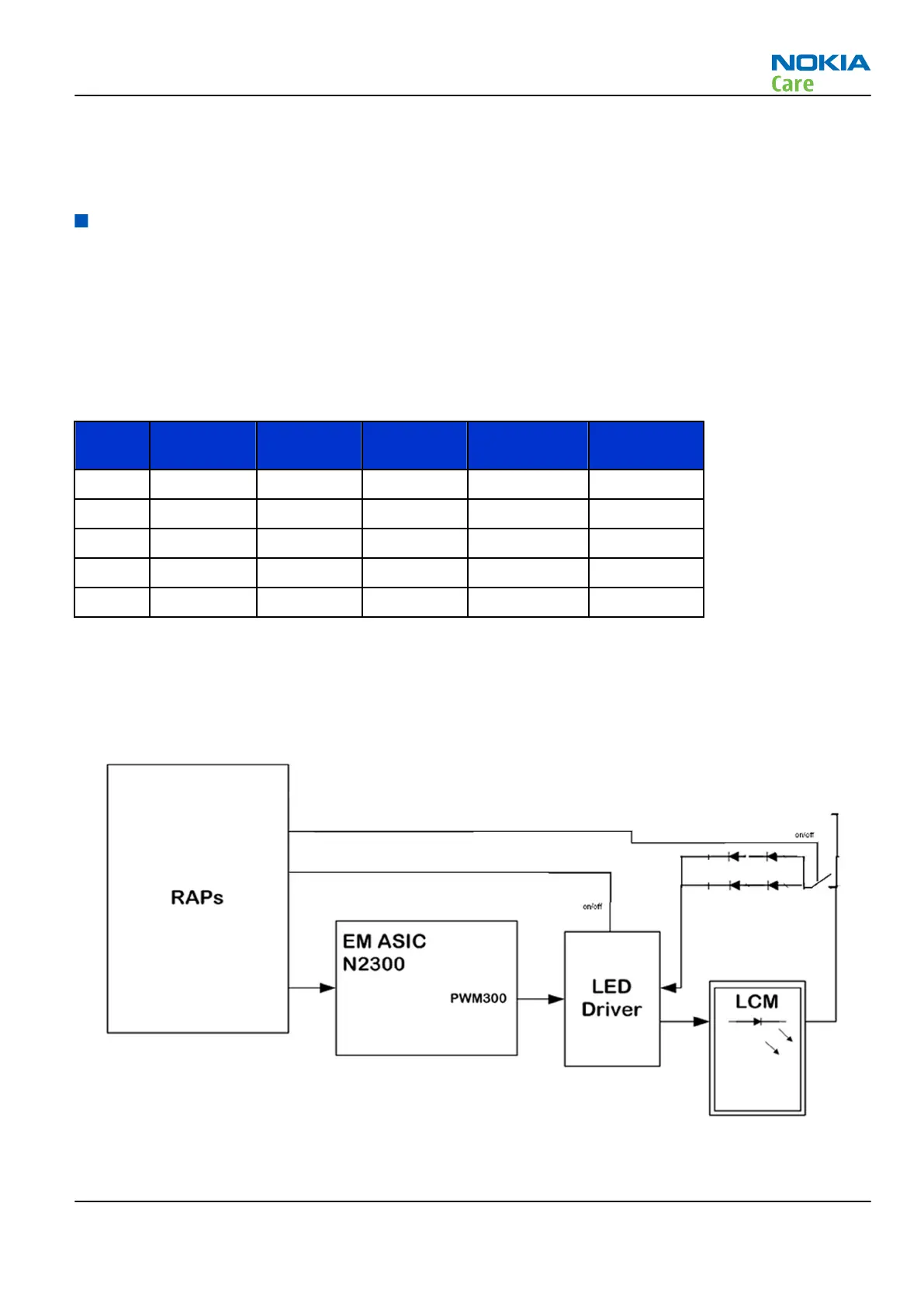

Backlight and illumination
There is backlight illuminating for the display consisting of 2 LEDs.
The keypad is side lit by 4 LEDs with film lightguide.
RM-561
System Module
Issue 1 COMPANY CONFIDENTIAL Page 5 –11
Copyright © 2009 Nokia. All rights reserved.
