Nokia 301 Service Manual

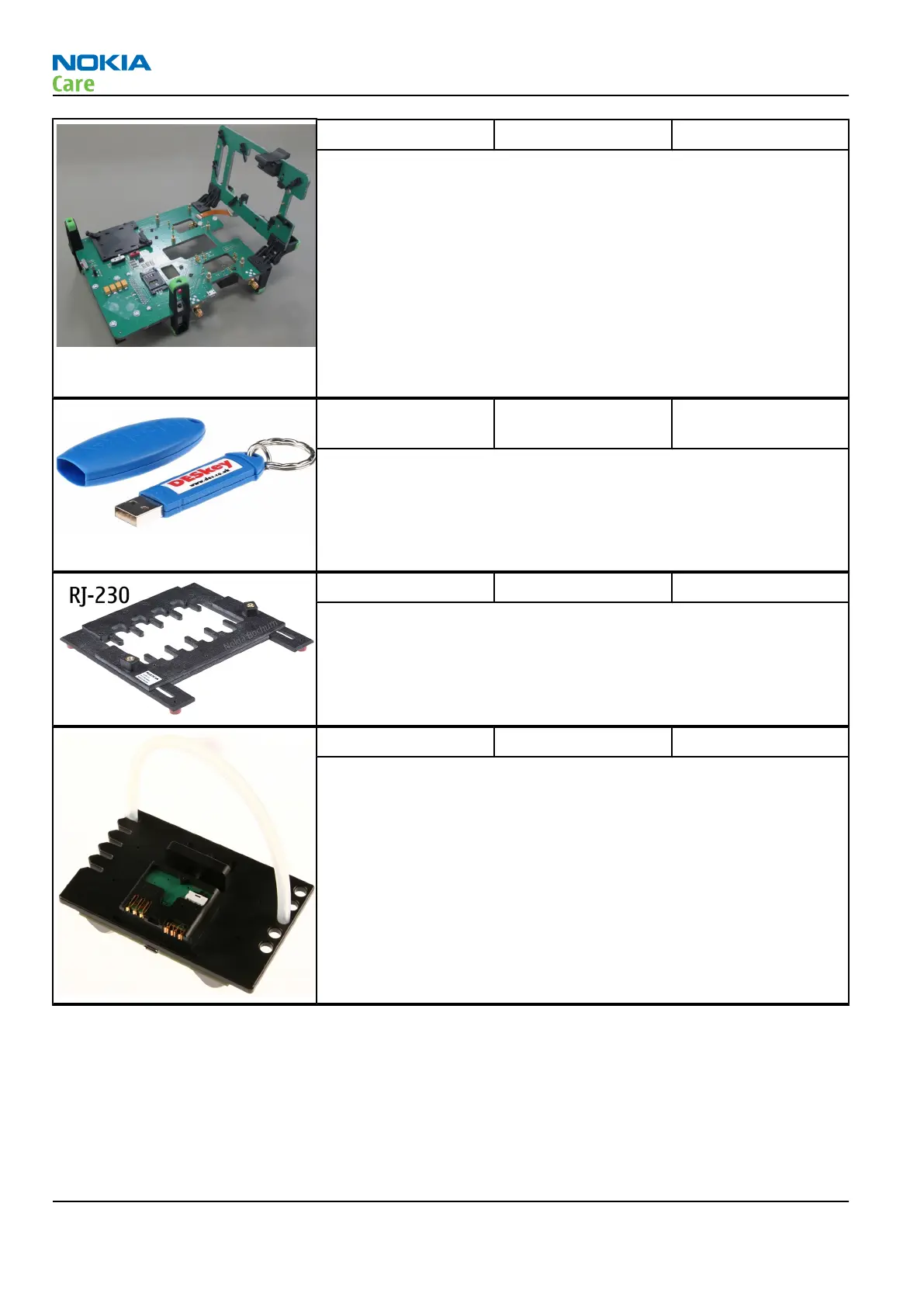

MJ-345 Module jig
Module jig MJ-345 can be used for flashing via USB and RF, battery and
system testing.
The main functions are:
•
Powering with external power
•
CU-4 interface
•
GSM/WCDMA RF-interfaces with probes
•
BSI mode selector (Tabby and Lynx interface, selected with battery
cable)
•
VBATT interface (Tabby and Lynx interface, selected with battery
cable)
PK-1 Software protection
key
PK-1 is a hardware protection key with a USB interface. It has the same
functionality as the PKD-1 series dongle.
PK-1 is meant for use with a PC that does not have a series interface.
To use this USB dongle for security service functions please register
the dongle in the same way as the PKD-1 series dongle.
RJ-230 Soldering jig
RJ-230 is a soldering jig used for soldering and as a rework jig for the
engine module.
SD-63 Dummy battery
SD-63 is designed to support mass SW flashing which enables local
mode while connecting the phone.
RM-839; RM-840; RM-841
Service Tools and Service Concepts
Page 2 – 8 NOKIA INTERNAL USE ONLY Issue 1
Copyright © 2013 Nokia. All rights reserved.

Nokia 301 Specifications

General

Display type	LCD
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	262144 colors
Internal memory	64 MB
Flash card support	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Digital zoom	3 x
Photo effects	Grey, Negative film, Sepia
White balance	Cloudy, Daylight, Fluorescent, Incandescent, Shade, Tungsten
Rear camera resolution	2048 x 1536 pixels
Image formats supported	BMP, GIF, JPG, WBMP
Rear camera resolution (numeric)	3.2 MP
Data network	3.5G, GPRS, GSM, HSDPA, HSUPA, WCDMA
SIM card capability	Single SIM
WCDMA bands supported	900, 2100 MHz
2G bands (primary SIM)	850, 900, 1800, 1900 MHz
Mobile network generation	3G
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, GAVDP, HFP, HSP, OPP, PBAP, SAP, SDAP, SPP
USB version	2.0
USB connector type	Micro-USB B
Headphone connectivity	3.5 mm
Email protocols	IMAP4, POP3, SMTP
Multimedia Messaging Service (MMS)	-
Maximum frame rate	30 fps
Video compression formats	3GP, ASF, AVI, H.263, H.264, MP4, MPEG4
Video capture resolution (max)	320 x 240 pixels
Ringer type	Polyphonic
Voice codecs	AMR-NB, AMR-WB, G.711, G.726, G.729, iLBC
Audio formats supported	3GPP, AAC, AMR, M4A, MP3, MP4, WAV, WMA
Polyphonic rings quantity	32
Battery type	BL-4U
Talk time (2G)	20 h
Talk time (3G)	6 h
Battery voltage	3.7 V
Battery capacity	1200 mAh
Standby time (2G)	888 h
Standby time (3G)	936 h
Subscription type	No subscription
Product color	Black
Form factor	Bar
Phonebook capacity	2000 entries
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Converter, Notes, Recorder, To-do list

Weight and Dimensions

Depth	12.5 mm
Width	50 mm
Height	114 mm
Volume	104.2 cm³
Weight	100.5 g
