Nokia 301 Service Manual

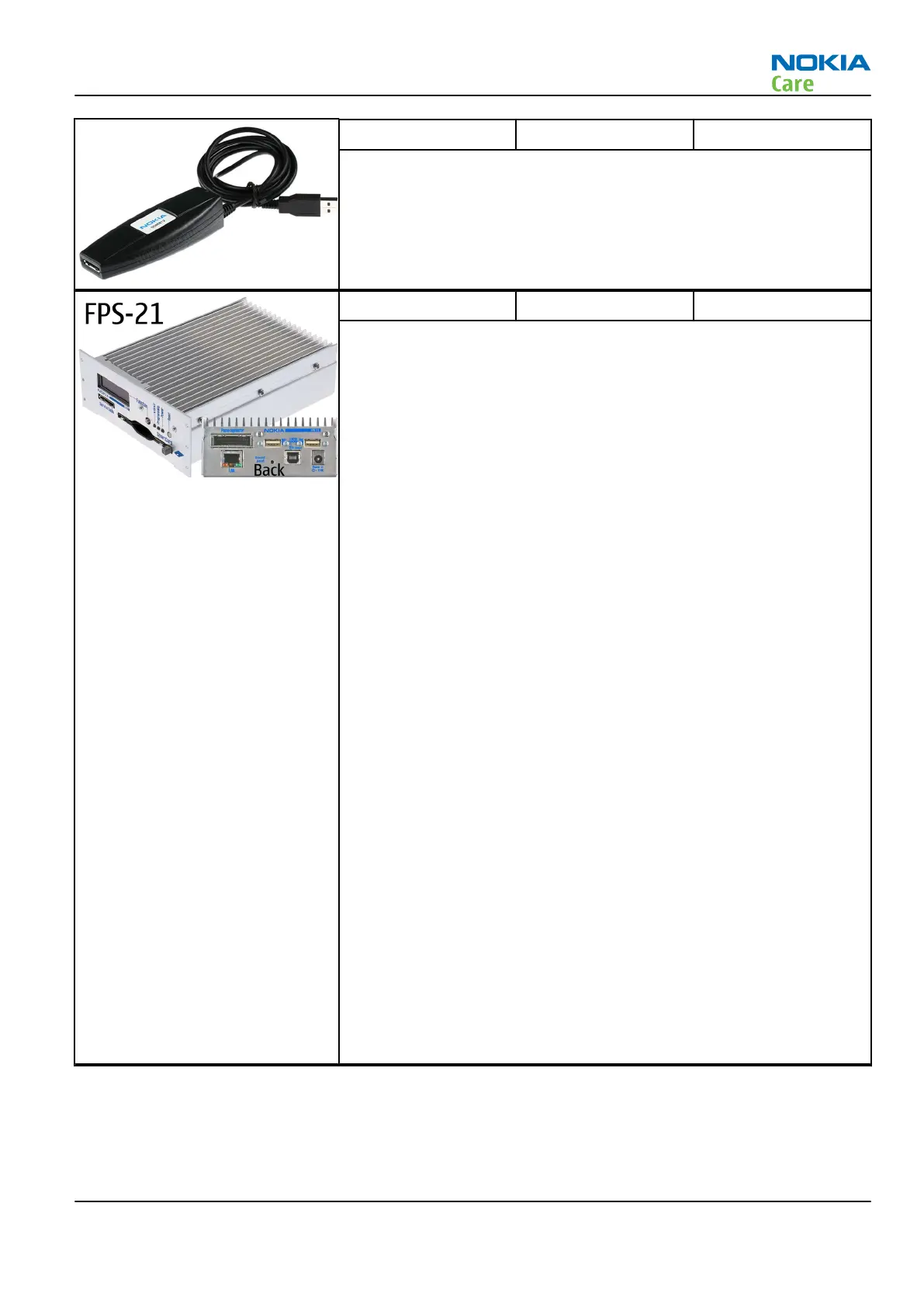

FLS-5 Flash device
FLS-5 is a dongle and flash device incorporated into one package,
developed specifically for POS use.
Note: FLS-5 can be used as an alternative to PK-1.
FPS-21 Flash prommer
FPS-21 sales package:
•
FPS-21 prommer
•
AC-35 power supply
•
CA-31D USB cable
FPS-21 interfaces:
Front
•
Service cable connector
Provides Flashbus, USB and VBAT connections to a mobile device.
•
SmartCard socket
A SmartCard is needed to allow DCT-4 generation mobile device
programming.
Rear
•
DC power input
For connecting the external power supply (AC-35).
•
Two USB A type ports (USB1/USB3)
Can be used, for example, for connecting external storage memory
devices or mobile devices
•
One USB B type device connector (USB2)
For connecting a PC.
•
Phone connector
Service cable connection for connecting Flashbus/FLA.
•
Ethernet RJ45 type socket (LAN)
For connecting the FPS-21 to LAN.
Inside
•
Four SD card memory slots
For internal storage memory.
Note: In order to access the SD memory card slots inside
FPS-21, the prommer needs to be opened by removing the
front panel, rear panel and heatsink from the prommer body.
RM-839; RM-840; RM-841
Service Tools and Service Concepts
Issue 1 NOKIA INTERNAL USE ONLY Page 2 – 7
Copyright © 2013 Nokia. All rights reserved.

Nokia 301 Specifications

General

Display type	LCD
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	262144 colors
Internal memory	64 MB
Flash card support	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Digital zoom	3 x
Photo effects	Grey, Negative film, Sepia
White balance	Cloudy, Daylight, Fluorescent, Incandescent, Shade, Tungsten
Rear camera resolution	2048 x 1536 pixels
Image formats supported	BMP, GIF, JPG, WBMP
Rear camera resolution (numeric)	3.2 MP
Data network	3.5G, GPRS, GSM, HSDPA, HSUPA, WCDMA
SIM card capability	Single SIM
WCDMA bands supported	900, 2100 MHz
2G bands (primary SIM)	850, 900, 1800, 1900 MHz
Mobile network generation	3G
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, GAVDP, HFP, HSP, OPP, PBAP, SAP, SDAP, SPP
USB version	2.0
USB connector type	Micro-USB B
Headphone connectivity	3.5 mm
Email protocols	IMAP4, POP3, SMTP
Multimedia Messaging Service (MMS)	-
Maximum frame rate	30 fps
Video compression formats	3GP, ASF, AVI, H.263, H.264, MP4, MPEG4
Video capture resolution (max)	320 x 240 pixels
Ringer type	Polyphonic
Voice codecs	AMR-NB, AMR-WB, G.711, G.726, G.729, iLBC
Audio formats supported	3GPP, AAC, AMR, M4A, MP3, MP4, WAV, WMA
Polyphonic rings quantity	32
Battery type	BL-4U
Talk time (2G)	20 h
Talk time (3G)	6 h
Battery voltage	3.7 V
Battery capacity	1200 mAh
Standby time (2G)	888 h
Standby time (3G)	936 h
Subscription type	No subscription
Product color	Black
Form factor	Bar
Phonebook capacity	2000 entries
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Converter, Notes, Recorder, To-do list

Weight and Dimensions

Depth	12.5 mm
Width	50 mm
Height	114 mm
Volume	104.2 cm³
Weight	100.5 g
