Nokia 301 Service Manual

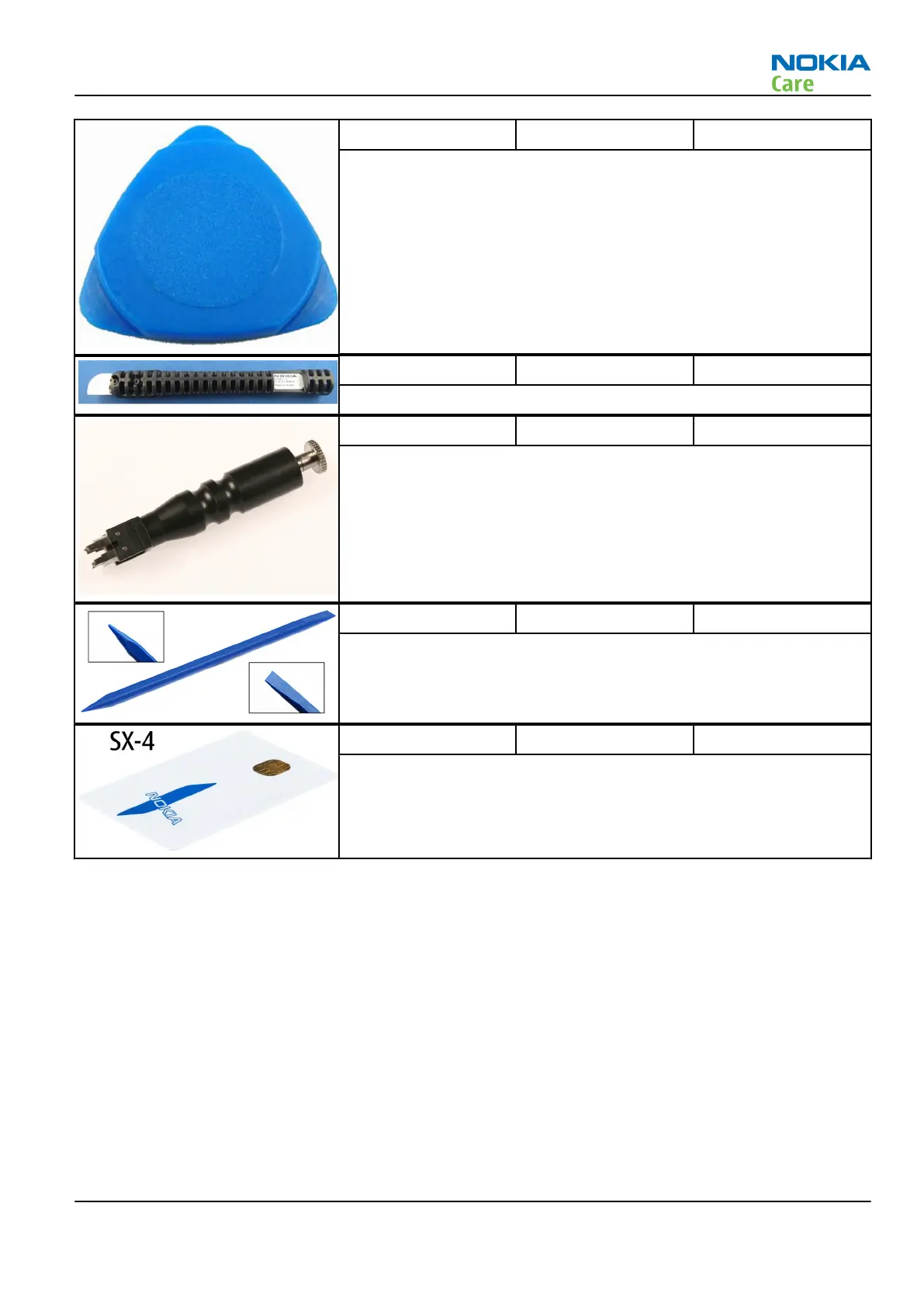

SRT-6 Opening tool
SRT-6 is used to open phone covers.
Note: The SRT-6 is included in the Nokia Standard Toolkit.
SS-264 Peeling tool
The peeling tool SS-264 is used to peel off the shielding.
SS-276 camera removal tool
The camera removal tool SS-276 is used to remove the camera module
from the camera socket of the phone PWB.
SS-93 Opening tool
SS-93 is used for opening JAE connectors.
Note: The SS-93 is included in Nokia Standard Toolkit.
SX-4 Smart card
SX-4 is a BB5 security device used to protect critical features in tuning
and testing.
SX-4 is also needed together with FPS-21 when DCT-4 phones are
flashed.
Cables
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-839; RM-840; RM-841. For the correct use of the service devices, and the best effort of
workbench setup, please refer to various concepts.
RM-839; RM-840; RM-841
Service Tools and Service Concepts
Issue 1 NOKIA INTERNAL USE ONLY Page 2 – 9
Copyright © 2013 Nokia. All rights reserved.

Nokia 301 Specifications

General

Display type	LCD
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	262144 colors
Internal memory	64 MB
Flash card support	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Digital zoom	3 x
Photo effects	Grey, Negative film, Sepia
White balance	Cloudy, Daylight, Fluorescent, Incandescent, Shade, Tungsten
Rear camera resolution	2048 x 1536 pixels
Image formats supported	BMP, GIF, JPG, WBMP
Rear camera resolution (numeric)	3.2 MP
Data network	3.5G, GPRS, GSM, HSDPA, HSUPA, WCDMA
SIM card capability	Single SIM
WCDMA bands supported	900, 2100 MHz
2G bands (primary SIM)	850, 900, 1800, 1900 MHz
Mobile network generation	3G
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, GAVDP, HFP, HSP, OPP, PBAP, SAP, SDAP, SPP
USB version	2.0
USB connector type	Micro-USB B
Headphone connectivity	3.5 mm
Email protocols	IMAP4, POP3, SMTP
Multimedia Messaging Service (MMS)	-
Maximum frame rate	30 fps
Video compression formats	3GP, ASF, AVI, H.263, H.264, MP4, MPEG4
Video capture resolution (max)	320 x 240 pixels
Ringer type	Polyphonic
Voice codecs	AMR-NB, AMR-WB, G.711, G.726, G.729, iLBC
Audio formats supported	3GPP, AAC, AMR, M4A, MP3, MP4, WAV, WMA
Polyphonic rings quantity	32
Battery type	BL-4U
Talk time (2G)	20 h
Talk time (3G)	6 h
Battery voltage	3.7 V
Battery capacity	1200 mAh
Standby time (2G)	888 h
Standby time (3G)	936 h
Subscription type	No subscription
Product color	Black
Form factor	Bar
Phonebook capacity	2000 entries
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Converter, Notes, Recorder, To-do list

Weight and Dimensions

Depth	12.5 mm
Width	50 mm
Height	114 mm
Volume	104.2 cm³
Weight	100.5 g
