Nokia 301 Service Manual

Note: The window appearance may differ depending on the Nokia Care Suite and Testing And Tuning
Tool versions
7 RF tunings will be ready when all the tunings and measurements are green in the tool window and no
errors occur.

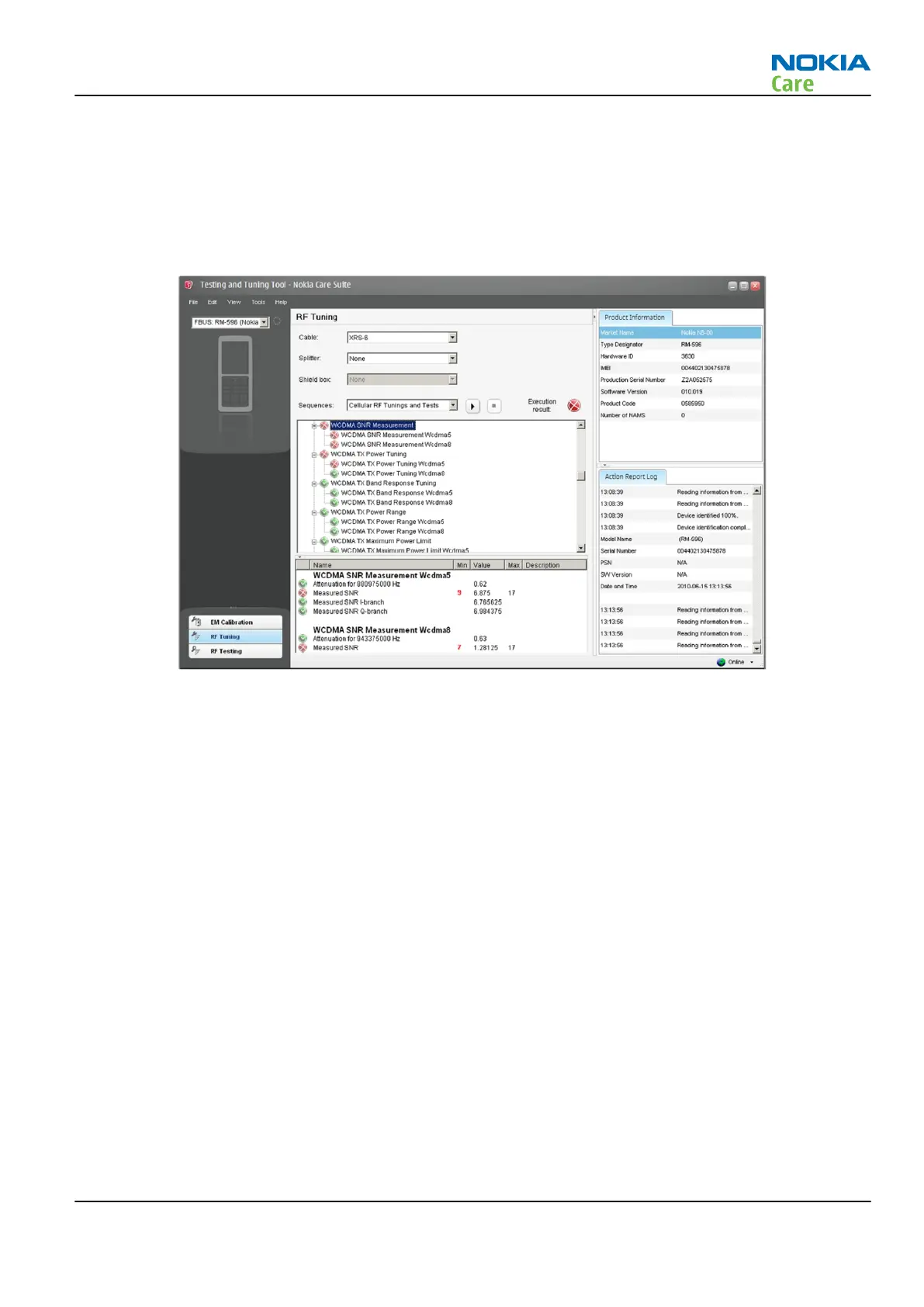

8 If errors do happen, failed tuning/testing steps are marked with a red color and more detailed results are
shown on the screen. An example fail case is shown below:
Note: The window appearance may differ depending on the Nokia Care Suite and Testing And Tuning
Tool versions.
Automatic RF testing with Nokia Care Suite
Testing And Tuning Tool add-on application can be used also for non-signalling RF tests. The automatic RF
testing procedure is the same as explained in the chapter RF auto tuning procedure , but RF Testing should
be selected in the Testing And Tuning Tool main window instead of RF Tuning .
RM-839; RM-840; RM-841
Cellular RF troubleshooting
Issue 1 NOKIA INTERNAL USE ONLY Page 4 – 11
Copyright © 2013 Nokia. All rights reserved.

Nokia 301 Specifications

General

Display type	LCD
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	262144 colors
Internal memory	64 MB
Flash card support	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Digital zoom	3 x
Photo effects	Grey, Negative film, Sepia
White balance	Cloudy, Daylight, Fluorescent, Incandescent, Shade, Tungsten
Rear camera resolution	2048 x 1536 pixels
Image formats supported	BMP, GIF, JPG, WBMP
Rear camera resolution (numeric)	3.2 MP
Data network	3.5G, GPRS, GSM, HSDPA, HSUPA, WCDMA
SIM card capability	Single SIM
WCDMA bands supported	900, 2100 MHz
2G bands (primary SIM)	850, 900, 1800, 1900 MHz
Mobile network generation	3G
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, GAVDP, HFP, HSP, OPP, PBAP, SAP, SDAP, SPP
USB version	2.0
USB connector type	Micro-USB B
Headphone connectivity	3.5 mm
Email protocols	IMAP4, POP3, SMTP
Multimedia Messaging Service (MMS)	-
Maximum frame rate	30 fps
Video compression formats	3GP, ASF, AVI, H.263, H.264, MP4, MPEG4
Video capture resolution (max)	320 x 240 pixels
Ringer type	Polyphonic
Voice codecs	AMR-NB, AMR-WB, G.711, G.726, G.729, iLBC
Audio formats supported	3GPP, AAC, AMR, M4A, MP3, MP4, WAV, WMA
Polyphonic rings quantity	32
Battery type	BL-4U
Talk time (2G)	20 h
Talk time (3G)	6 h
Battery voltage	3.7 V
Battery capacity	1200 mAh
Standby time (2G)	888 h
Standby time (3G)	936 h
Subscription type	No subscription
Product color	Black
Form factor	Bar
Phonebook capacity	2000 entries
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Converter, Notes, Recorder, To-do list

Weight and Dimensions

Depth	12.5 mm
Width	50 mm
Height	114 mm
Volume	104.2 cm³
Weight	100.5 g
