Nokia 3210 Service & Repair Manual

CONFIDENTIAL
Service & Analysis Center Europe
Training Team
version 1.0 / 05.11.1999 Page 18 of 37
N100 CCONT Faulty
• Check if 3,2V on R413 drops to 0V during pressing the Power on button
• Check if there is a 32.768 kHz square wave on C149
• Check if PURX on R303 goes up to 2.8 V DC
• Check if VXO on C102 goes up to 2.8 V DC
• Check if VBB on C117 goes to 2,8V DC
• Check if Vref on C123 goes to 1,5V DC
• Change the CCONT

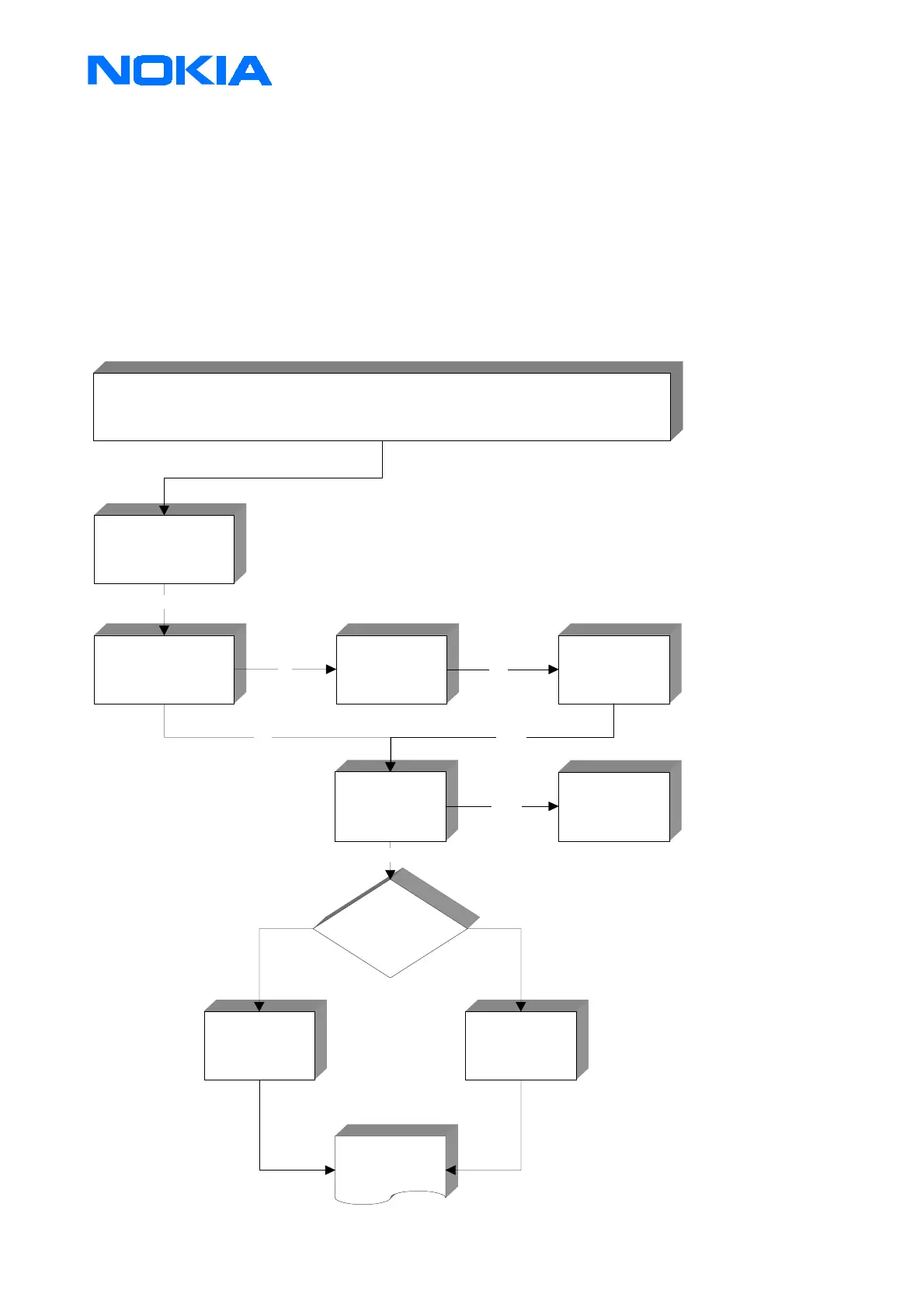

Contact service – Eeprom checksum fail
EEPROM
internal fault
Reset the phone
(don't use the full
factory set if it is not
permitted to you to
rewrite the IMEI)
EEPROM tune
checksum fail
Check via WINTESLA >
product information, if any
phone data, like: IMEI,
product code, PSN, etc. is
corrupted
Contact Service
Check via WINTESLA / Testing / Selftest
which kind of selftest is failed
Phone is Ok, if
CONTACT
SERVICE dissapears
No
check 2,8V DC on pin
8 of Eeprom
Check VBB on C117
send this phones to
the SACE Bochum
if it is not permitted to
you to rewrite the
IMEI
change the EEPROM
if it is permitted to
you, to rewrite the
IMEI
Service Bulletin
general 26
Yes
Yes not oK
Yes
not oK
oK

Nokia 3210 Specifications

General

Release Year	1999
Dimensions	123.8 x 50.5 x 16.7 mm (4.87 x 1.99 x 0.66 in)
Display Type	Monochrome graphic
Display Size	5 lines
Stand-by Time	Up to 260 h
Talk Time	Up to 4 h 30 min
Network Technology	GSM
2G bands	GSM 900 / 1800
Announced	1999
Status	Discontinued
SIM	Mini-SIM
Resolution	84 x 48 pixels
Memory Card slot	No
Call records	10 dialed, 10 received, 10 missed calls
Alert types	Vibration; Monophonic ringtones
Loudspeaker	No
3.5mm jack	No
Messaging	SMS
Radio	No
Clock	Yes
Alarm	Yes
Java	No
Battery Type	Removable Li-Ion 1250 mAh battery
Games	Memory, Snake
Weight	151 g
