8. SW-UPDATE
To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the
latest version of flash software, which is available on
NOKIA Online.

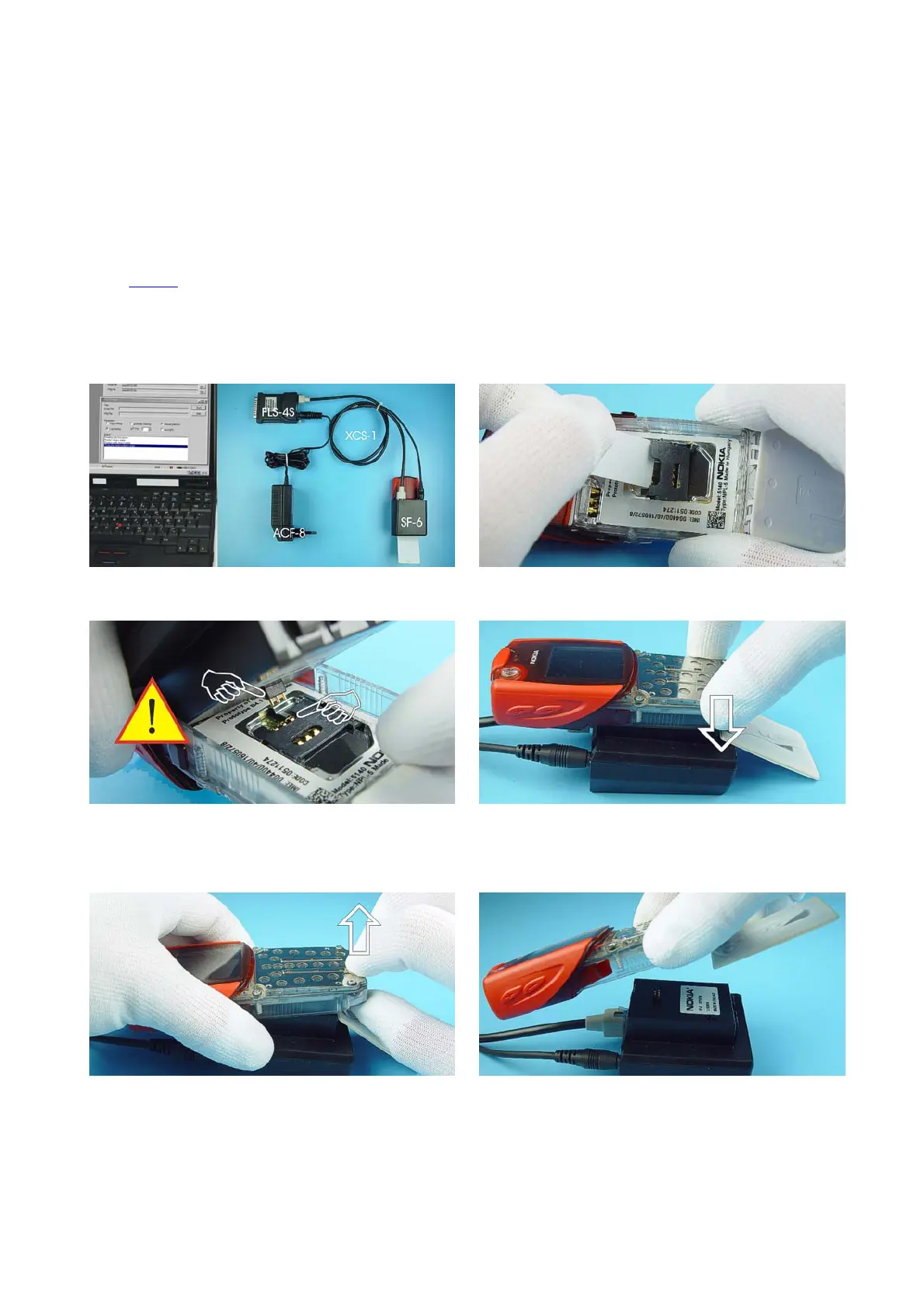

Flash Concept – (Point of Sales)
It is very important to follow this insertion and removal procedure, otherwise the contact pins of Flash Adapter
will be damaged.
Remove SIM Card and close SIM Cover before inserting
the Flash Adapter!
Insert the Flash Adapter SF-6 like a battery, start at the
Battery Connector side. Take care not damage the contact
pins of Flash Adapter and the spring contacts of SIM Card
reader
Now, push down the bottom side of the phone, do not
use too much force.
When removing the phone, always start from the bottom
side of the unit.
Take away the unit now.
