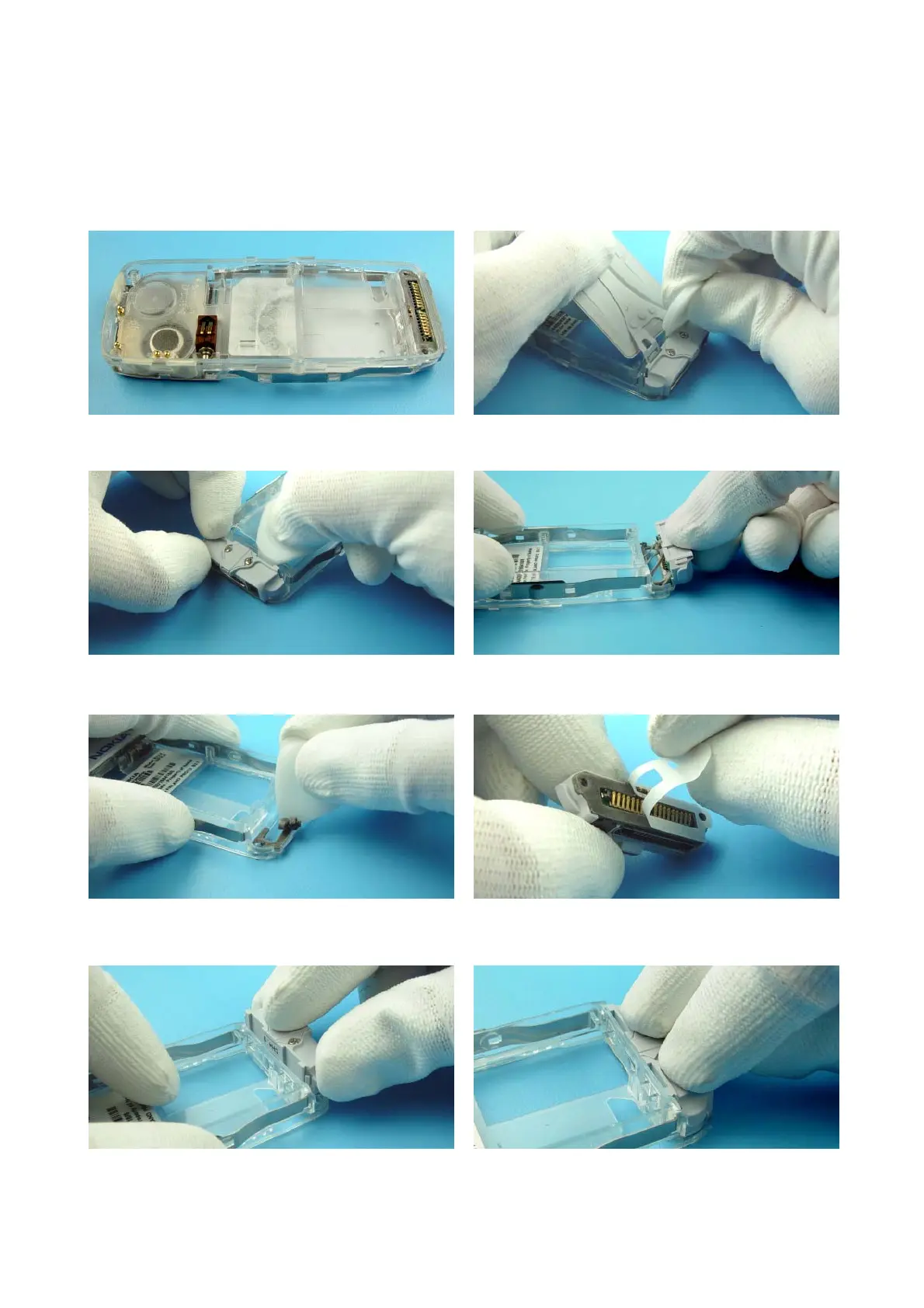

10. EXCHANGE OF SYSTEM CONNECTOR
(PICTURE EXAMPLES TAKEN FROM 5100)
1.) The System Connector Assy is attached with
double-sided adhesive gasket to C-Cover. Also note the
gasket on C-Cover.
2.) Press SRT-6 between C-Cover and System
Connector Assy and remove the Battery Cover Assy.
3.) Press again SRT-6 between C-Cover and System
Connector Assy and remove the System Connector
Assy.
4.) Remove the System Connector Assy.
5.) To remove the remaining adhesive gasket use SRT-
6 only.
Do not use sharp-edged tools for this procedure.
6.) Remove protection foil from System Connector
Assy.
7.) Place the System Connector Assy to its guidance
exactly.
8.) Now press connector to C-Cover firmly, while
taking care not to slip C-Cover on your table.
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.
