PAGE 19 (23) Approved 4.0
CMO Operations & Logistics
MGR
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 14.7.2005
Service Manual 5140/5140i Level 1&2 Copyright © 2004-2005 NOKIA Corporation. All rights reserved.
15. CAMERA GONOGO TEST

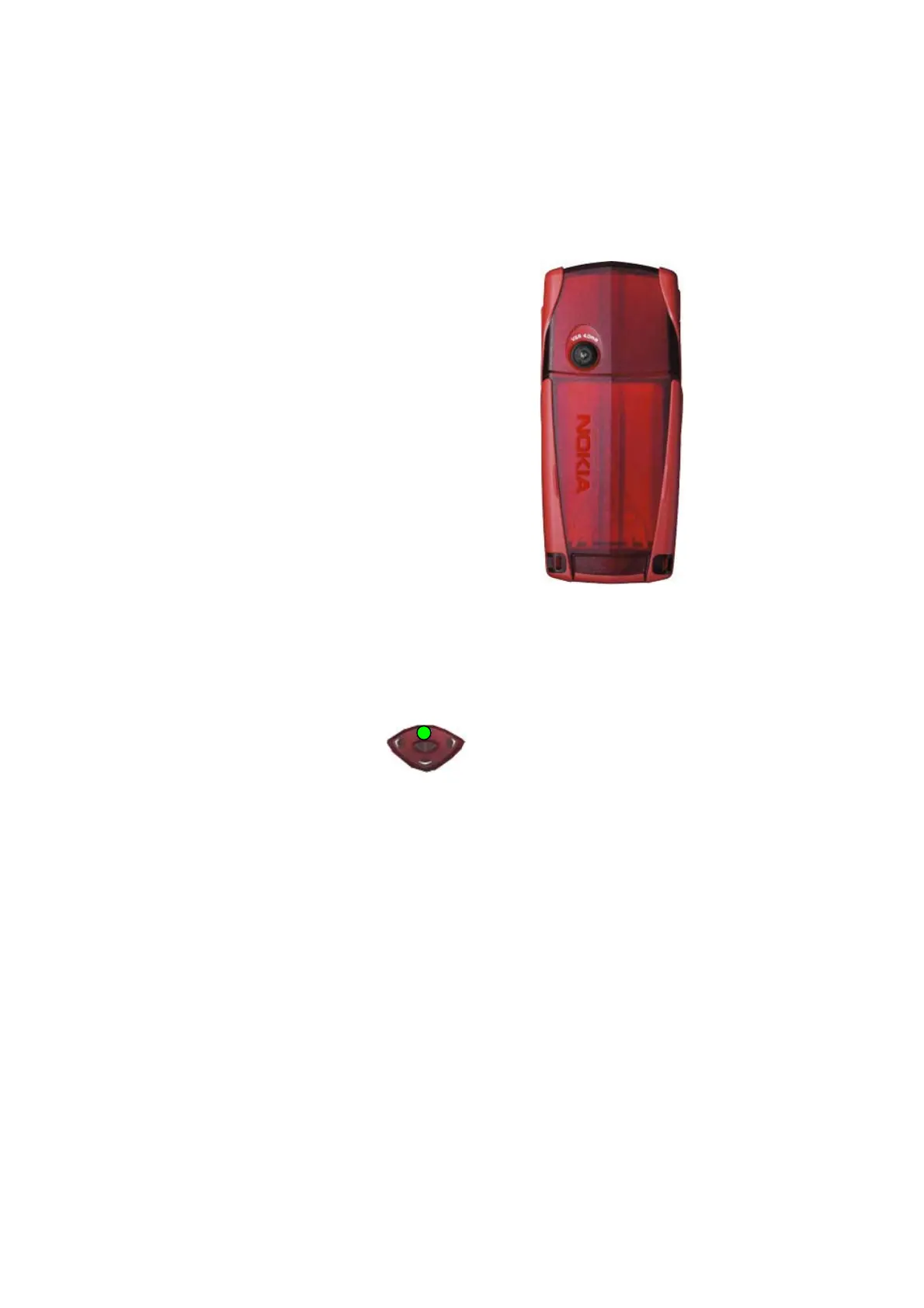

Before starting the GoNoGo
test, check that camera
window is clean. If not, clean
the window with cloth.
• Press the red receiver button to reach the Home Menu
• From Home Menu, select the Menu key
• Press Capture to take a photo
This Image will be saved to Gallery into the Photos folder automatically.
Test was successful, if the Image appears on your Display. The camera is ok.
• Select Options
• Select Delete
• Select Yes
• Select Exit for Home Menu
If the test is failed see Quick Trouble Shooter.
