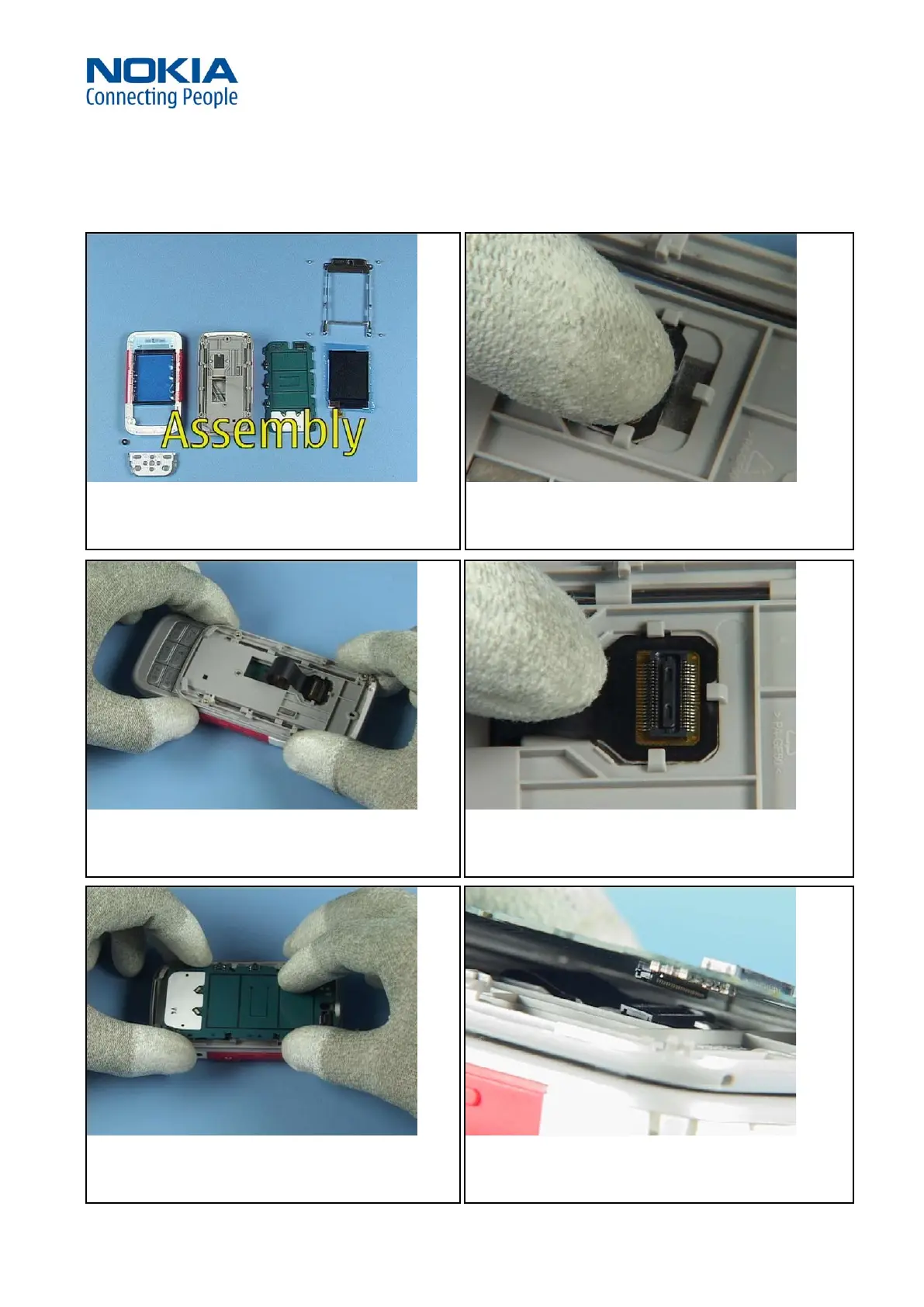

UPPER BLOCK ASSEMBLY INSTRUCTION9.
1. Assembly
2. Place the SIDE FLEX into its compartment.
3. Now close the slide mechanism.
4. Push the connector into position shown.
5. Place the UI MODULE exactly as shown.
6. Check the positioning of the connector before continue.
To Next Page
