Service Manual 5200 RM-174/RM-181 / 5300 RM-146/RM-147
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page
(46)
9.2 Microphone
9.3 1TG UI Module Assembly
9.4 1TG UI Module Assembly
9.5 Slide Flex
9.6 Connector (X2402)

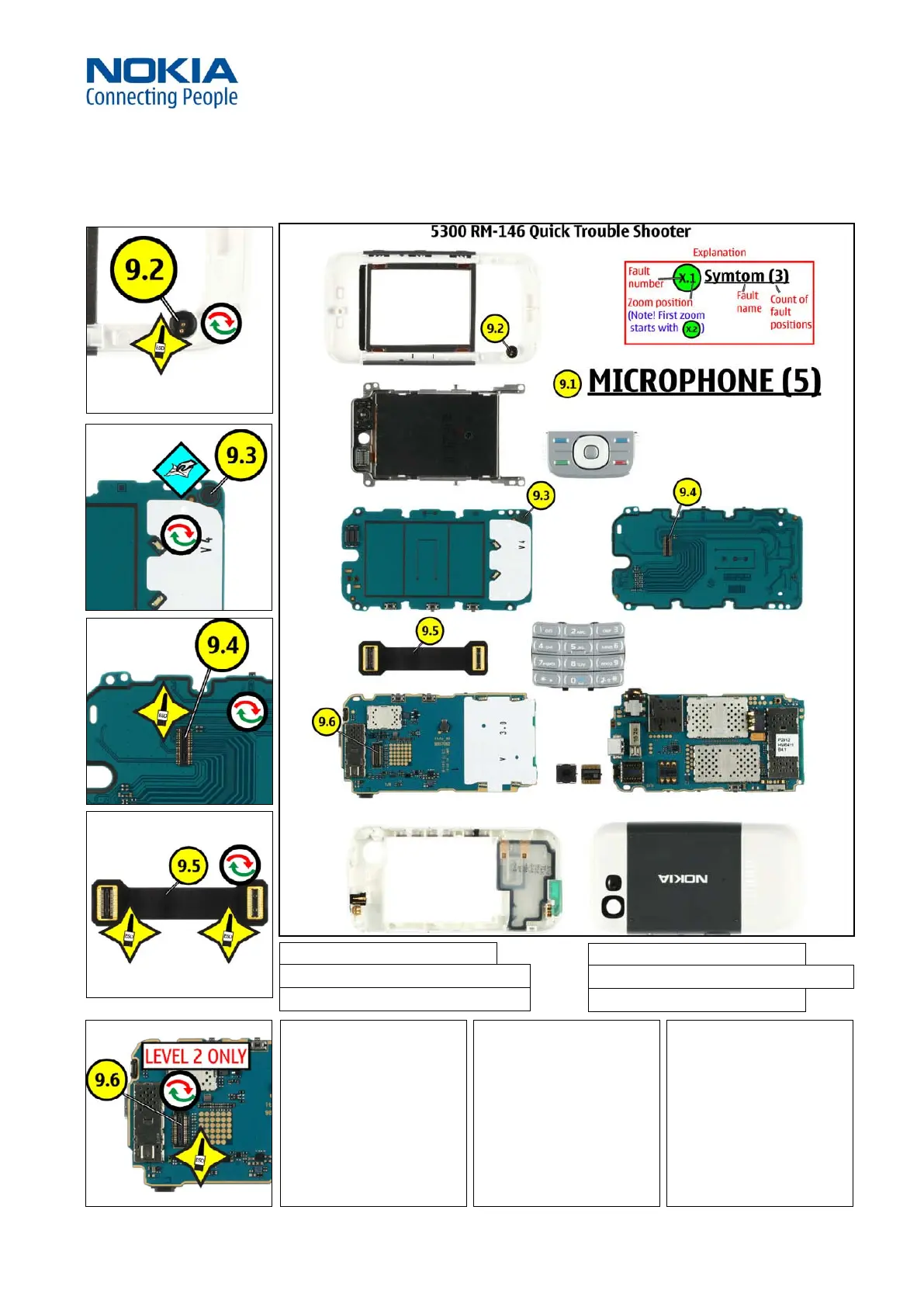

QUICK TROUBLE SHOOTER - MICROPHONE 21.
