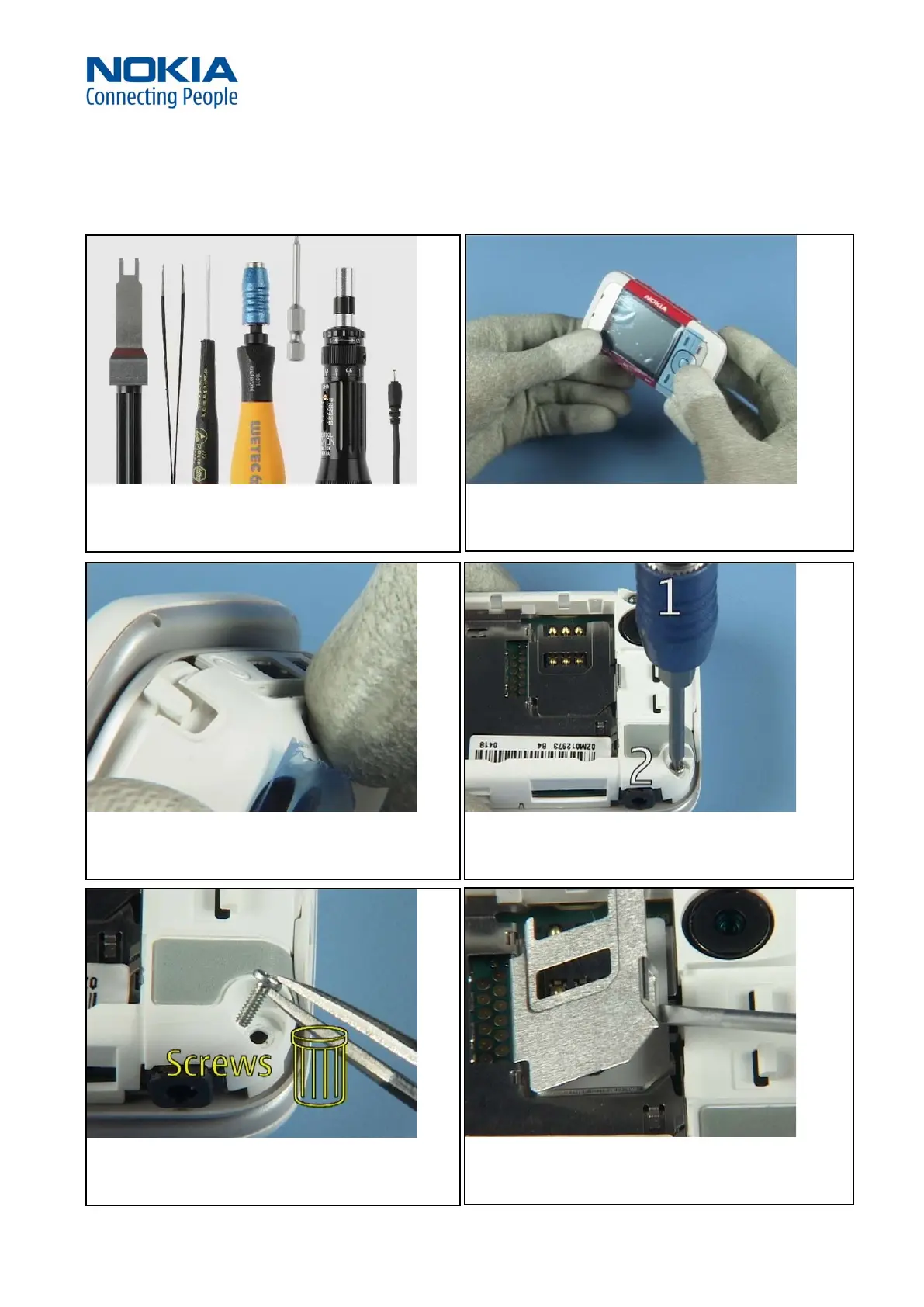

LOWER BLOCK DISASSEMBLY INSTRUCTION10.
1. Needed tools: The SS-45 & SS-88 camera removal tool, metal
tweezers, a straight bladed screwdriver, a bitholder with a
Torx plus size 6 bit, a torque driver, and a DC plug.
2. Always cover the windows with a protective lm.
3. Unlock and remove the E-COVER. Remove the battery if it is
still inserted.
4. Unscrew the torx plus size 6 screws in the order shown.
5. Remove all screws and discard them. Do not use them
again.
6. Before removing the LABEL COVER, open the SIM ip rst...
