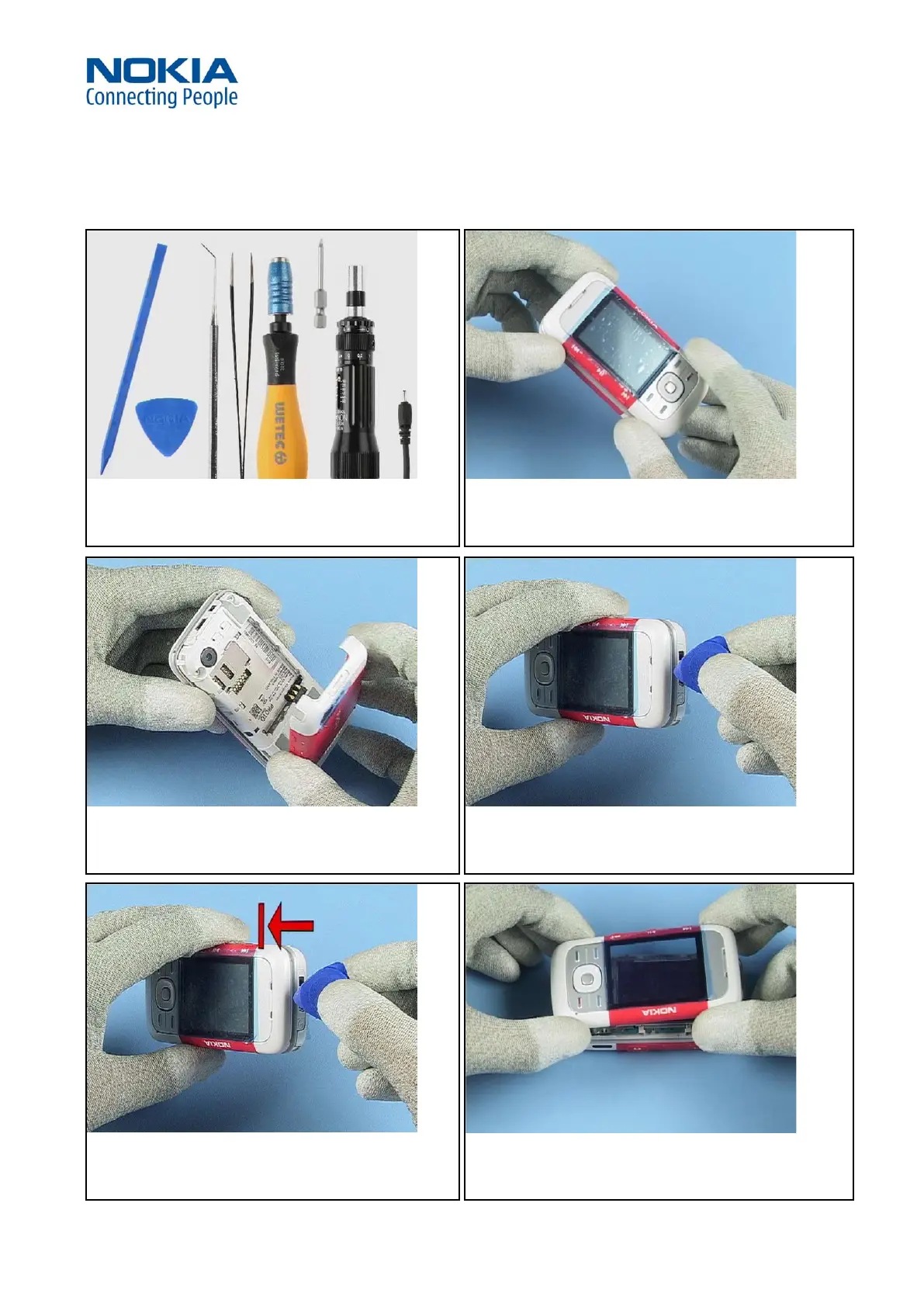

UPPER BLOCK DISASSEMBLY INSTRUCTION8.
1. Needed tools: The SS-93, the dental pick, metal tweezers, a
bit holder with a Torx Plus size 6 bit, a torque driver, and a DC
plug.
2. Always cover the windows with a protective lm.
3. Open the E-COVER Assembly. Remove the battery if it is still
inserted.
4. Use the SRT-6 to pry open the A-COVER assembly.
5. Use the SRT-6 only in direction shown. Do not shift the SRT-6
along the side where the keys are located
6. Lift up the A-COVER Assembly.
To Next Page
