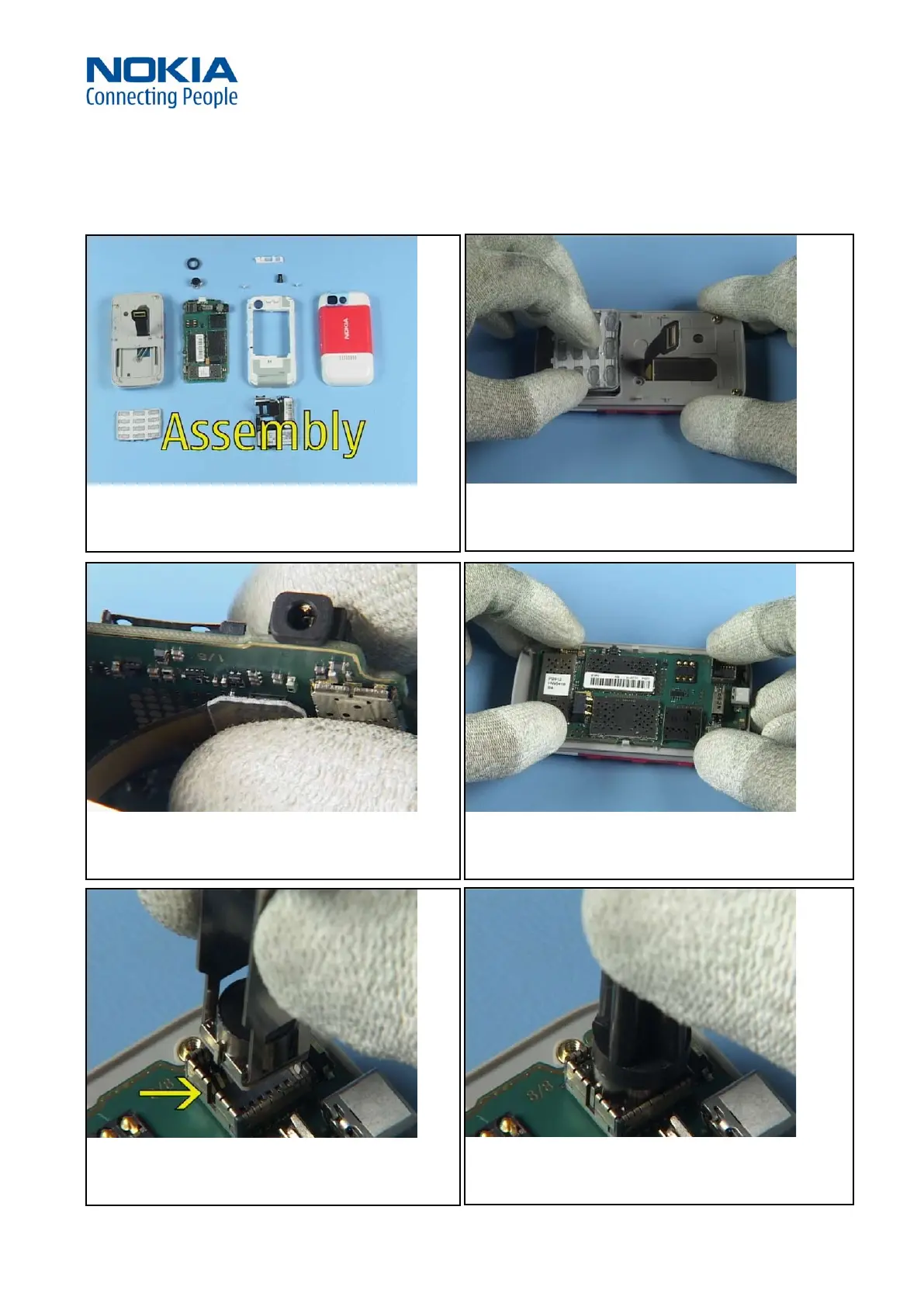

LOWER BLOCK ASSEMBLY INSTRUCTION11.
1. Assembly
2. Insert the NUMERIC KEYMAT.
3. Connect the ex foil.
4. Position the ENGINE MODULE correctly.
5. Insert the CAMERA. Mind the correct positioning. Use the SS-
88 for the smaller camera of the 5200.
6. Carefully push it into its place.
