Service Manual 5200 RM-174/RM-181 / 5300 RM-146/RM-147
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 4.0
MGR
Page
(46)

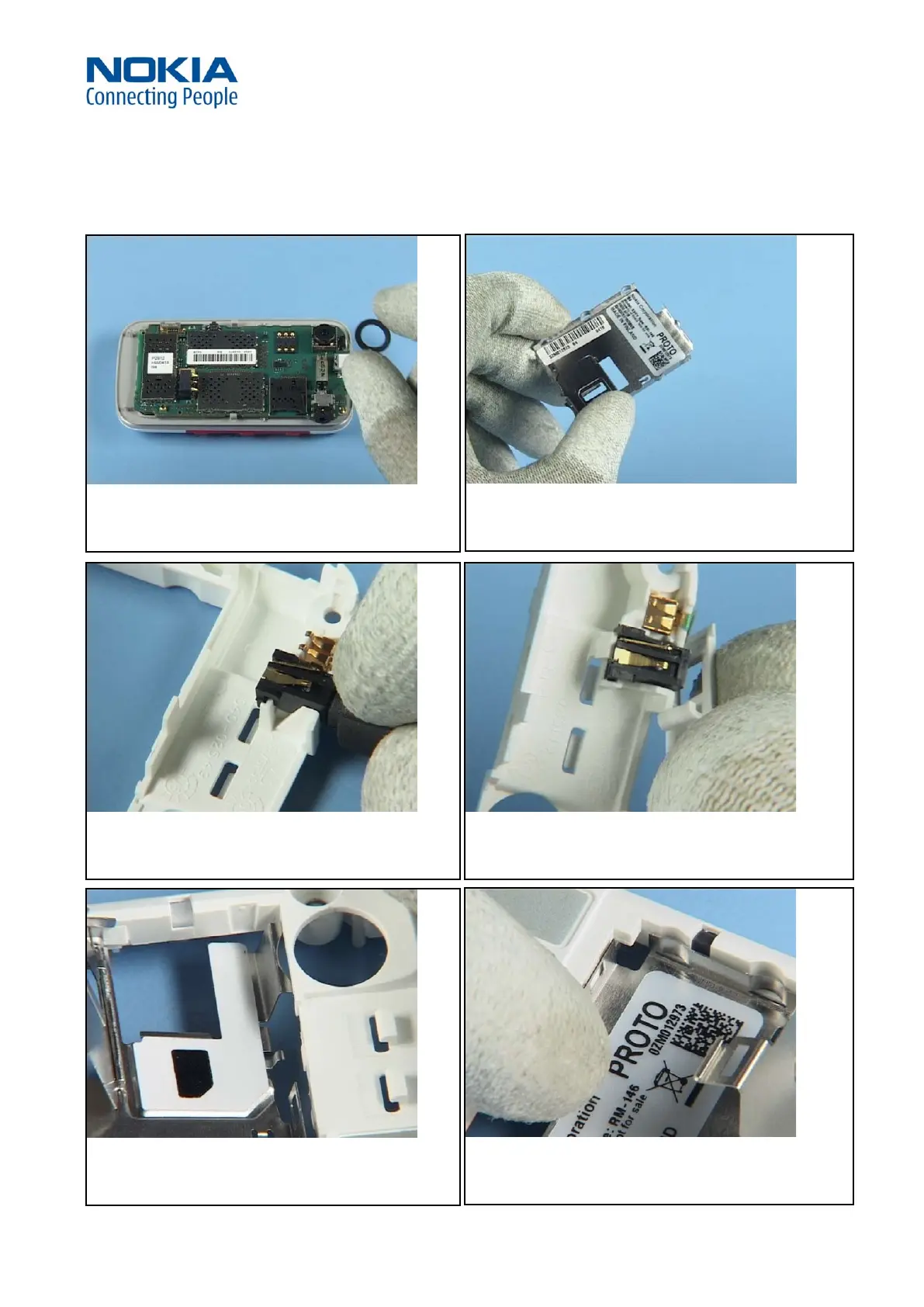

7. Place the CAMERA GASKET.
8. When replacing the D-COVER assembly, the delivered LABEL
COVER must be replaced with the original labeled one. Never
deliver a Product without its Type Label.
9. Insert the DC JACK with the DC Plug.
10. Place the POWER KEY, mind the correct placement.
11. Insert the LABEL COVER, tted with the original TYPE LABEL.
12. Click all snaps into their places.
