WW Competence Transfer
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
6.Apr.2006
15
Service Manual 6131/6133 RM-115 - - 6126/H/6133/b/h RM-126
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (29)

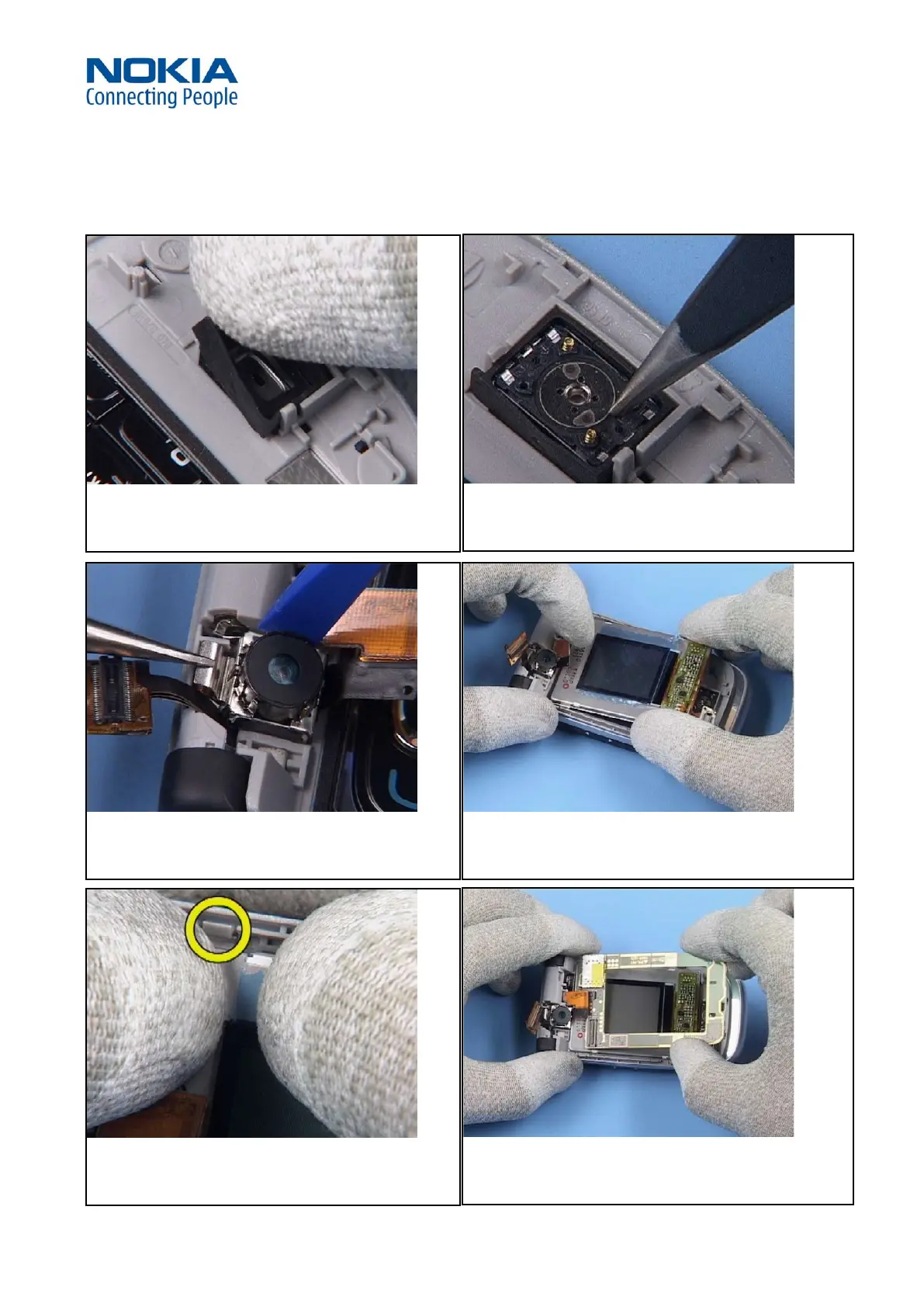

1. Insert the EARPIECE GASKET properly.
2. Ensure that the dust net is glued on the Earpiece, then place
the EARPIECE evenly into the Gasket.
3. Position the Camera Assembly into the guides of the B-
COVER. Take care not to damage the board to board or camera
ex foil.
4. Put the NAPA DISPLAY Main into the B-COVER guides.
5. Be sure to lock all the four clips of the DISPLAY. Ensure that
display connector is placed properly in the correct position of
the B-COVER.
6. Place the PCD PWB and pay attention to the ex connectors.
UPPER BLOCK ASSEMBLY9.
