UPPER BLOCK DISASSEMBLY8.

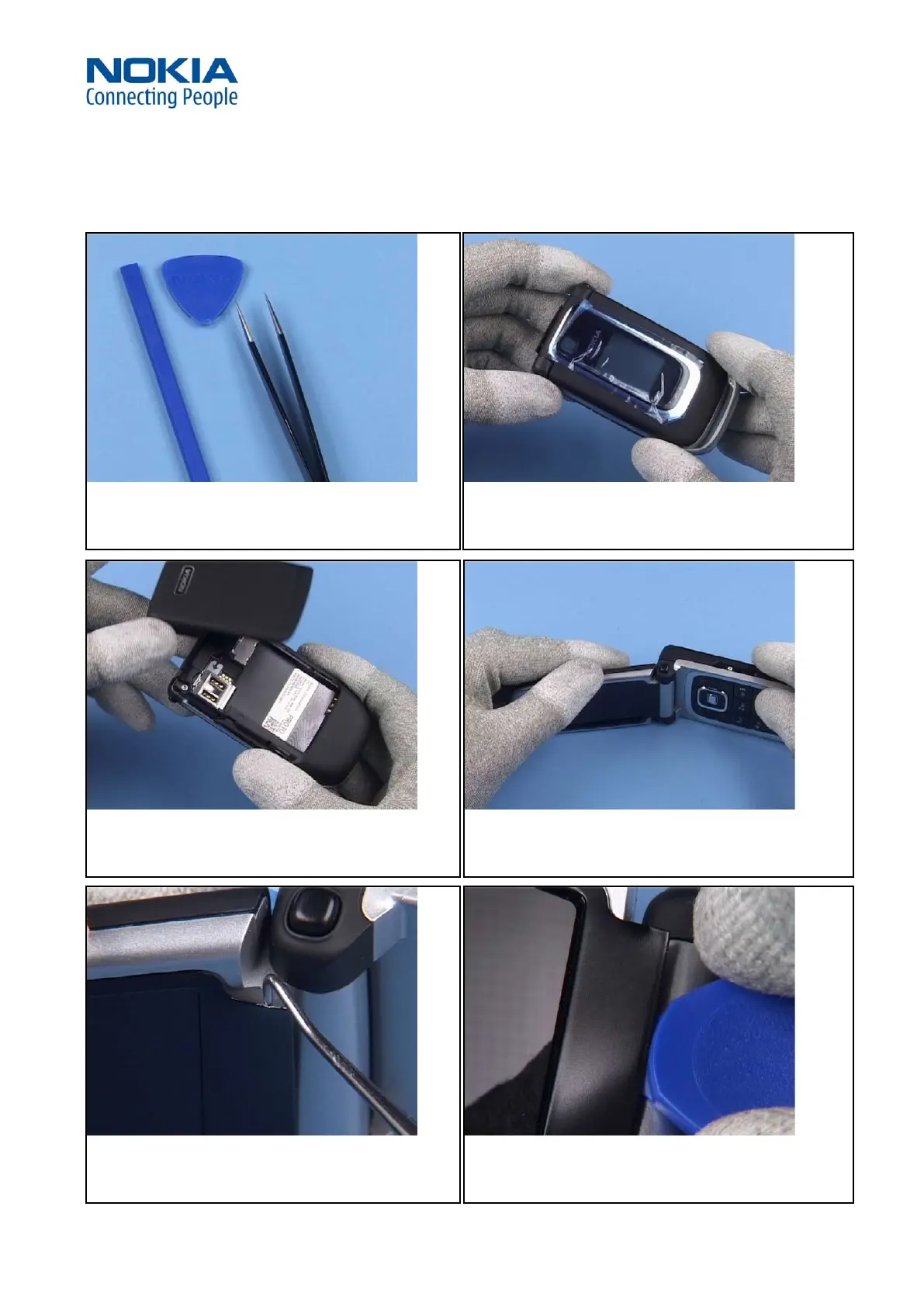

1. Needed tools.
2. Always protect all windows with protective lm against dust
and scratches.
3. Remove the battery, SIM, µSD card if still inside.
4. Open the phone and place it on the table sideways.
5. Carefully lift up the lower side of the DISPLAY BEZEL, rst
with the dental tool.
6. Now continue with the SRT-6 and remove the DISPLAY BEZEL.
Starting from the shown position up to the earpiece section.
SS-93
SRT-6
Metal tweezers
