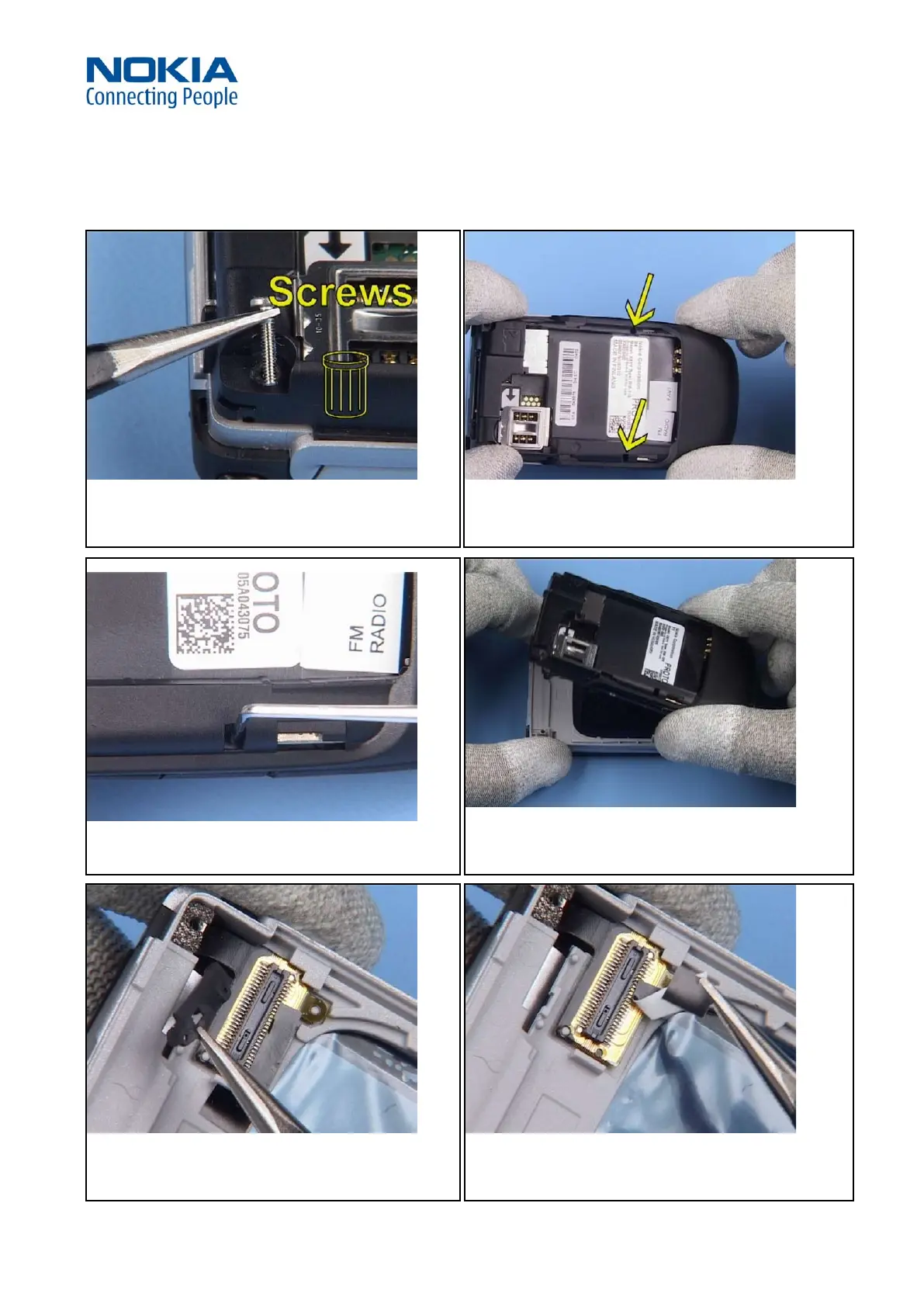

7. These screws are covered with locking compound and can’t
be reused again.
8. Hold the assembly as shown. Locate the 2 holes in the D-
COVER.
9. Use the dental pick to unlock the clips at both sides.
10. Separate the covers.
11. Remove the MIC-RUBBER with tweezers.
12. Peel up the L-ADHESIVE FOAM.
