NPE-4 6310/NPL-1 6310i Repair Hints
Customer Care Europe, Middle East & Africa Version 3.0 Approved
SCCE Training Group Date 22.04.2003
© NMP 2003
Checked by:
SCCE Training Group
Approved by:
SCCE
Additional Information

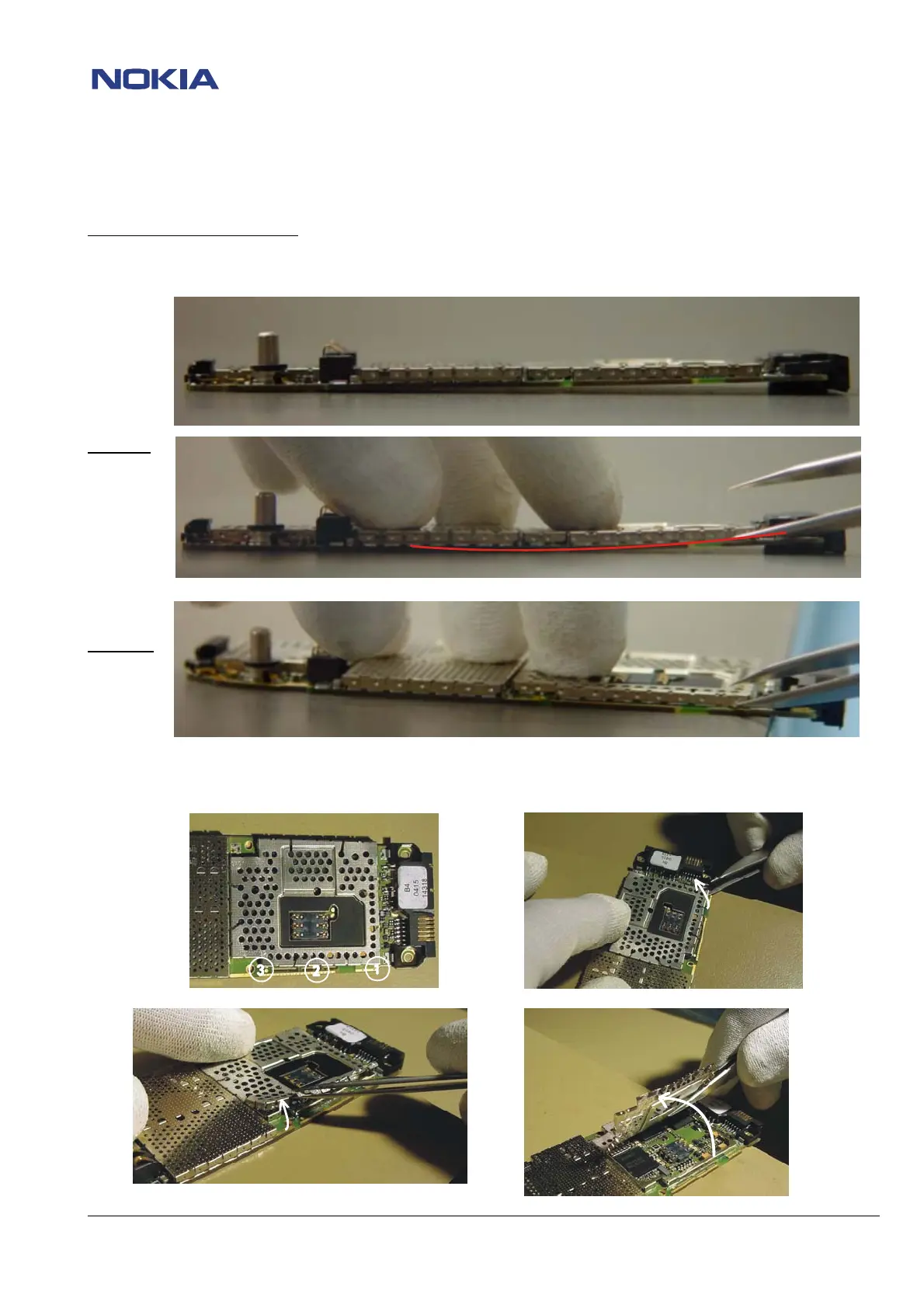

BB shield removing instructions
For BB shield removing it is important to lay the PWB on level surface in away that the bottom connector does not
touch the underground to prevent bending of PWB and cracking of the connector’s solderings (See pictures below).
Wrong
Correct
When removing the BB shield, be very careful because the Flash D450 could be damaged (see pictures on the next
page). Start by lifting and bending the lid with tweezers at the marked points 1- 3 (see pictures below).
Do not use too much force on the frame because it could be damaged and also the PWB could be mechanically stressed.
