CONFIDENTIAL
8 (29)
NPE-4 6310/NPL-1 6310i Repair Hints
Customer Care Europe, Middle East & Africa Version 3.0 Approved
SCCE Training Group Date 22.04.2003
© NMP 2003
Checked by:
SCCE Training Group
Approved by:
SCCE

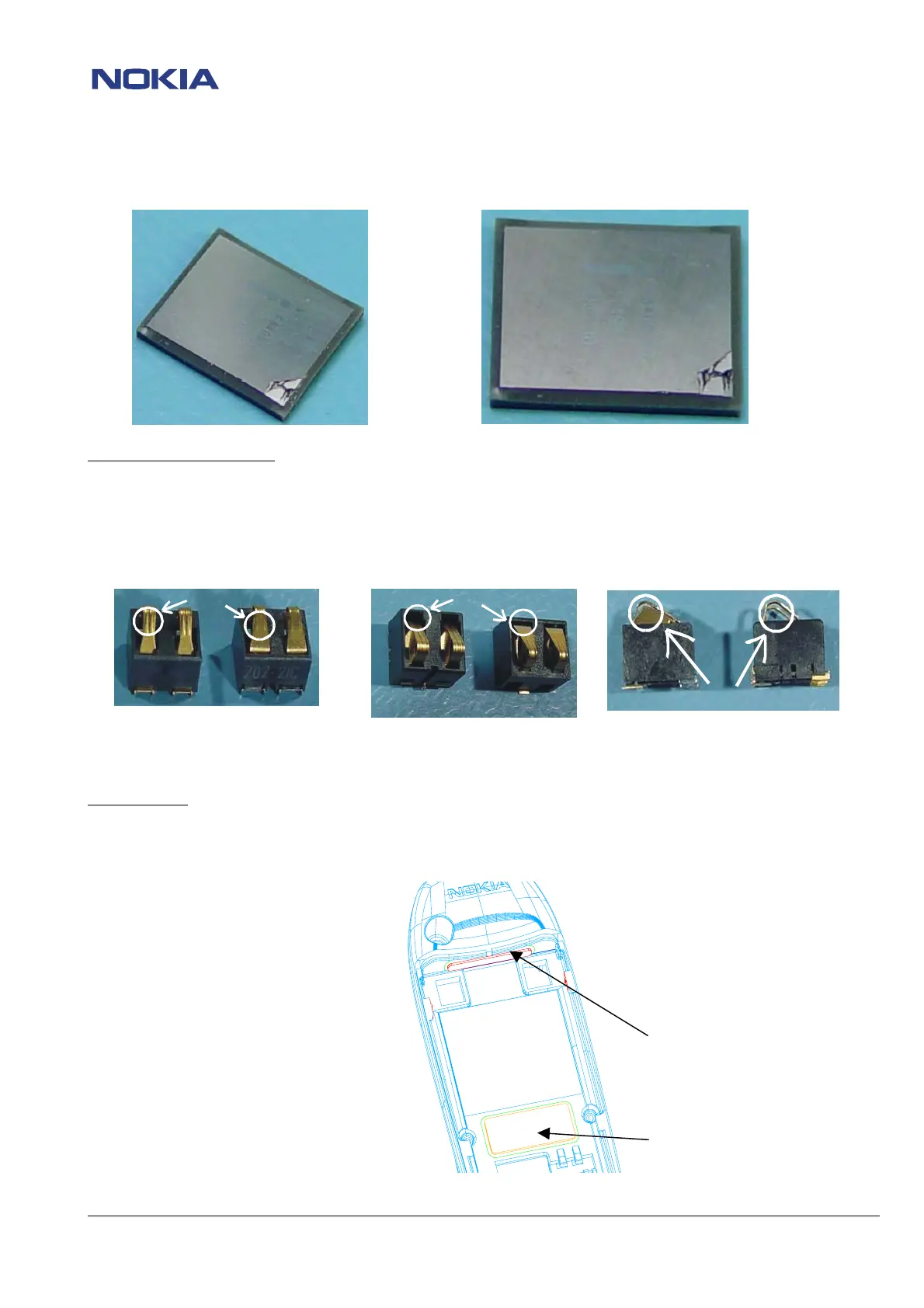

Example of a broken Flash D450:
Different battery connectors
There are two different battery connectors with the same part code 5400239 (see pictures below).
If it is necessary to exchange the battery connector X101/ X102, take care that you use the corresponding part.
Wrong replacement causes switch-off trouble.
Different surface, width and position of spring contacts:
Difference
Difference
Difference
Difference
Note! It is not allowed to use the battery connectors of NPE-3 (part code 5469069) because of smaller size.
Auto power off
The phone turns off, because the contact pads on the battery and the battery connectors are worn out so that the
phone has lost the contact to the battery.
Assemble the Y- and Z-Pads, as in the picture below.
For more information see SB-010 (NPE-4).
Battery Pad Y
Battery Pad Z
