7310 Supernova RM-378/RM-379
Page (14)
ISSUE 1
Service Manual Level 1&2

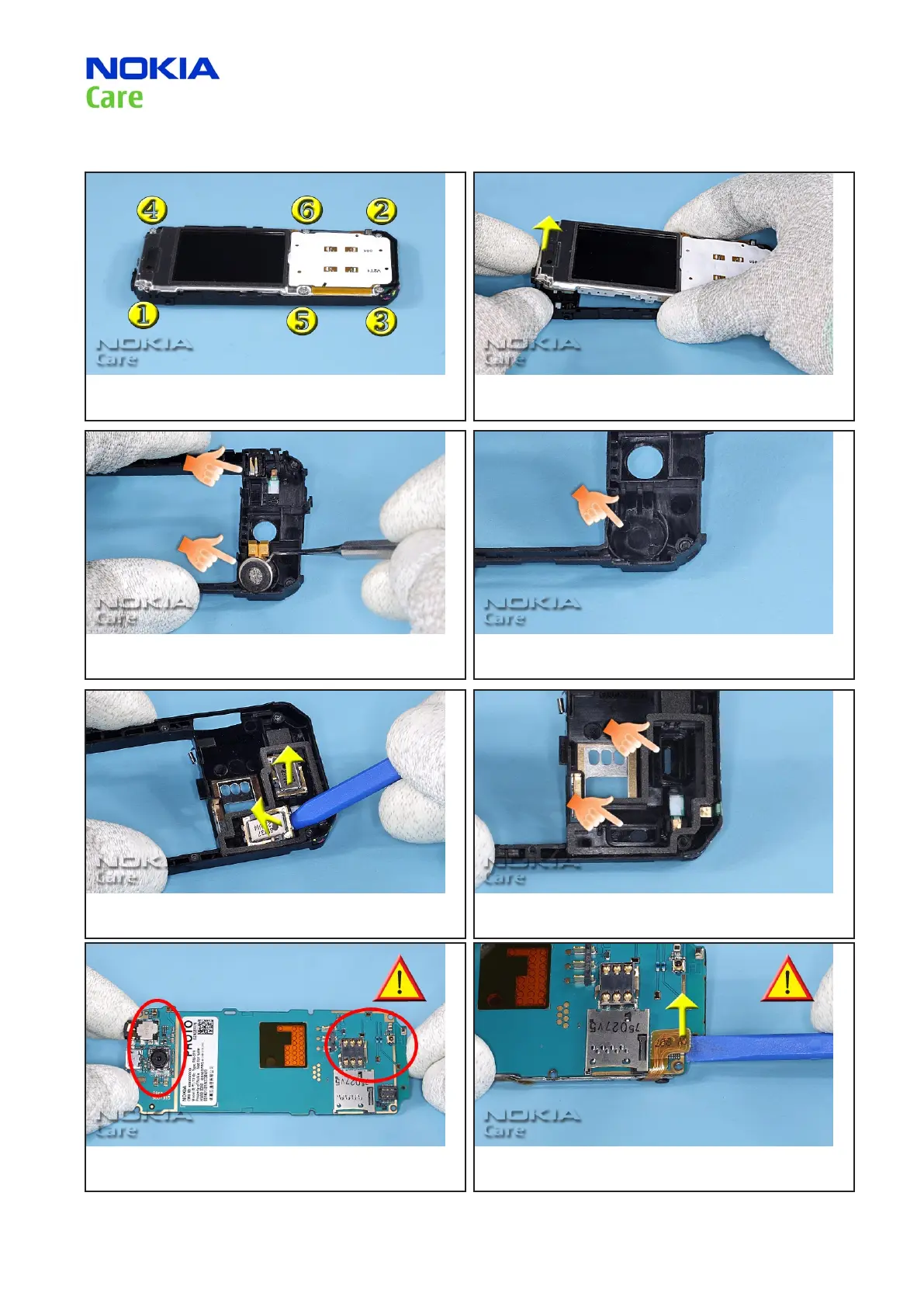

9. Uncsrew the six Torx Plus size 6 screws in the order shown. 10. Remove the B-Cover.
11. Remove the Vibra Motor. The DC-Jack can be removed easily. 12. Ensure that no adhesive remains.
13. Remove the IHF Speakers using the SS-93. 14. Ensure that no adhesive remanis.
15. Take special care to the spring contacts on the PWB. 16. Carefully open the UI ex connector.
