Nokia 7360 Service Manual

WW Competence Transfer
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
21.11.2005
15
Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page
(26)

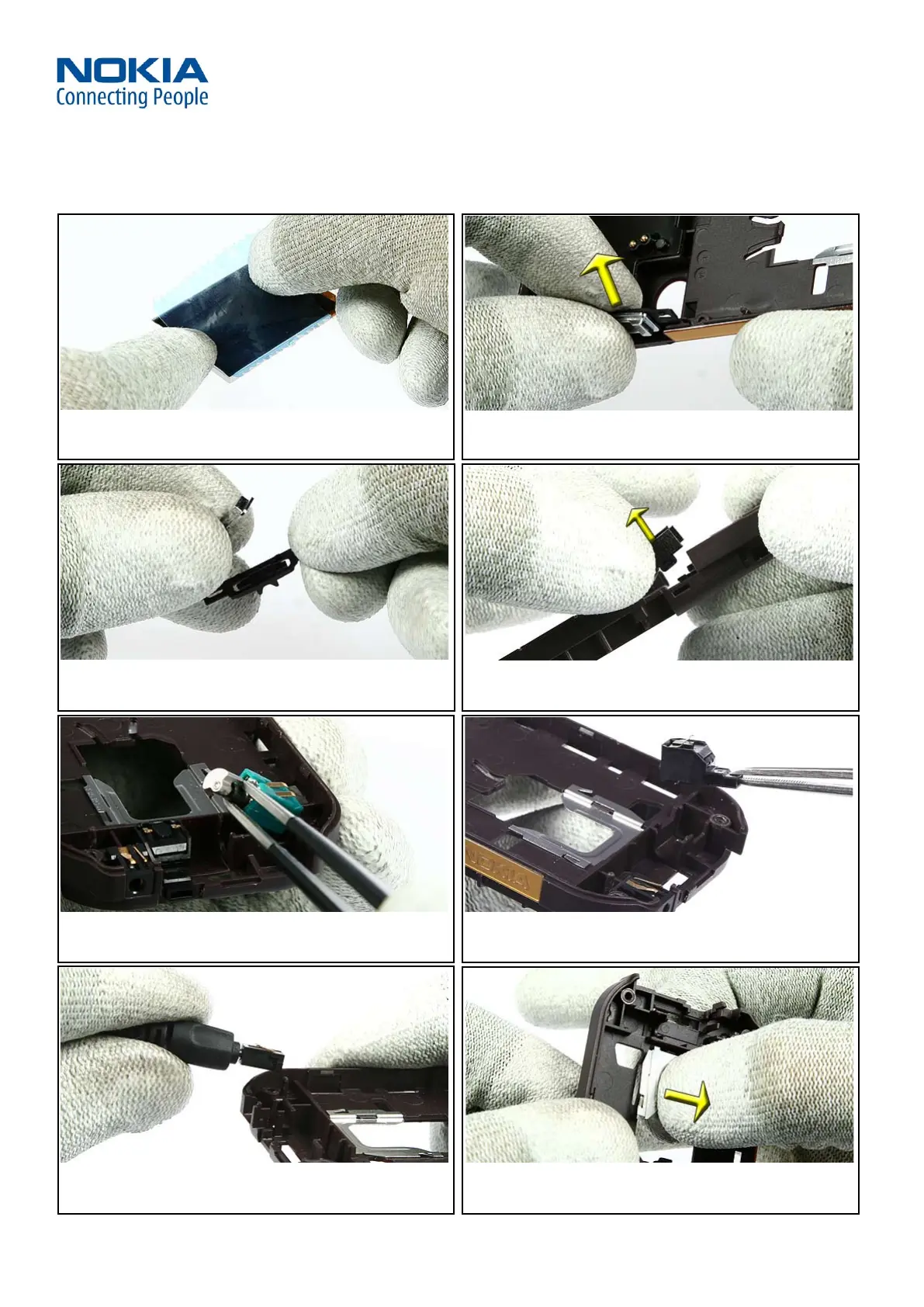

25. Protect the LCD MODULE with a plastic film. 26. Remove the VOLUME KEY ACTUATOR including the VOLUME
KEY from the B-COVER ASSY.
27. Separate the VOLUME KEY ACTUATOR from the VOLUME KEY. 28. Remove the IRDA WINDOW.
29. Remove the VIBRA MOTOR. 30. Remove the MICROPHONE.
31. Remove the DC-JACK with a DC PLUG.
32. Press the SIM-GRIP in the shown direction, and lift one side
of it out of the B-COVER ASSY.

Nokia 7360 Specifications

General

FM radio	Yes
Ringer type	Polyphonic
Polyphonic rings quantity	24
Rear camera resolution	640 x 480 pixels
Playback formats	MP3/AAC
Operating frequency	GSM 900/1800/1900 MHz
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
Internal memory	4 MB
Product color	Brown
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5B
Talk time (2G)	4 h
Battery capacity	760 mAh
Standby time (2G)	450 h
Data network	GPRS

Weight and Dimensions

Depth	45 mm
Width	105 mm
Height	18 mm
Weight	92 g
