11. Technical data
Battery voltage
12.6 VDC (10.8 – 13.5 V)
Negative potential to ground (GND).
Current carrying capacity
1.5 A (off mode 1 mA)
Transmitting power
EGSM 900: 3.2 mW – 2 W
DCS 1800: 1.0 mW – 1 W
System cable PCU-4

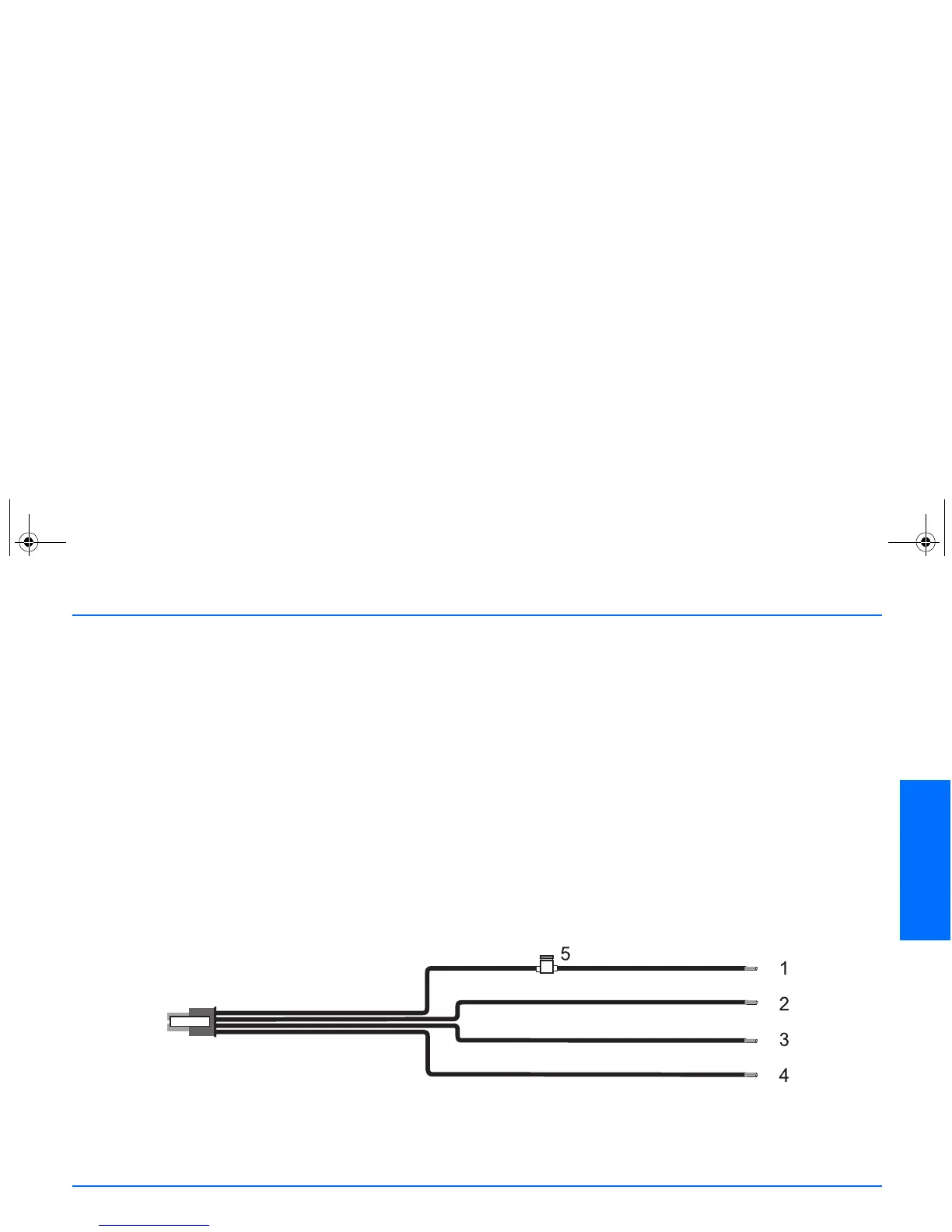

System cable wiring
1. Red, BATTERY, +12V
2. Black, GND, ground
3. Yellow, MUTE, radio mute
When call is set up, switch over from +12V to 0V.
4. Blue, ACC / IGN, ignition
5. 2A fuse
!
