Nokia C2-00 Service Manual

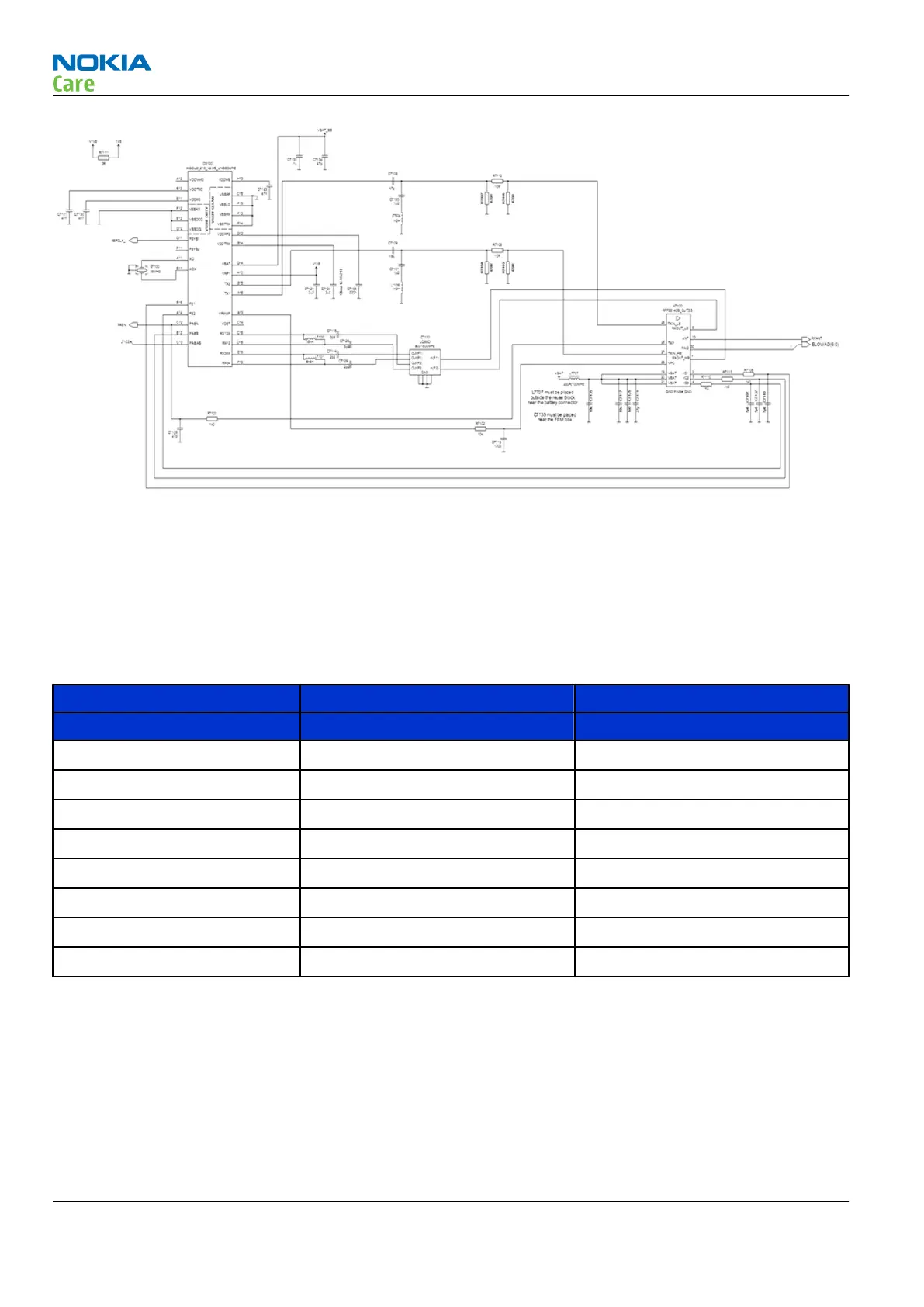

Figure 75 Quantum B2 RF schematic (For Release 3, see Table 2 for components values of the other releases)
BOM release version and RF part list
Quantum has four release versions in terms of the FEM suppliers and EU/US variation. Rel.1 and Rel.3 are for
EU (GSM900/1800) version and Rel.2 and Rel.4 are for US (GSM850/1900) version. The FEM, SAW filters, and
RX matching networks are different for each release as shown in the table below. The PA ID resistor embedded
in the FEM, makes it possible for the X-GOLD to determine which release is used.
Table 6 Schematic differences between releases
Rel.1 Rel.3
BAND EU EU
C7114 2p2(2320520) 2p2(2320520)
C7129 2p2(2320520) 2p2(2320520)
C7115 3p9(2320526) 3p9(2320526)
C7126 3p9(2320526) 3p9(2320526)
L7100 15nH(3640122) 18nH(3640171)
L7101 5n6H(3646059) 5n6H(3646059)
N7100 Sky 77535 (4355168) RPF88140B (4355148)
Z7100 Epcos(4511256) Murata(4511258)
RM-704
System Module
Page 5 – 28 COMPANY CONFIDENTIAL Issue 1
Copyright © 2011 Nokia. All rights reserved.

Nokia C2-00 Specifications

General

Display type	TFT
Display diagonal	1.8 \
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
User memory	10 MB
Internal memory	16 MB
Flash card support	Yes
Maximum memory card size	32 GB
Rear camera resolution	640 x 480 pixels
Rear camera resolution (numeric)	0.3 MP
Playback formats	MP3, WMA, AAC, eAAC, eAAC +
USB 2.0 ports quantity	1
USB version	2.0
Headphone connectivity	3.5 mm
Data network	CSD, GPRS, GSM, HSCSD
SIM card capability	Dual SIM
GPRS multislot class	12
2G bands (primary SIM)	900, 1800 MHz
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Maximum frame rate	10 fps
Video capture resolution (max)	128 x 96 pixels
Ringer type	Polyphonic
Audio formats supported	AAC, MP3, WMA
Form factor	Bar
Personalization	Menu, Themes
Phonebook capacity	500 entries
Text prediction system type	T9
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Converter, Notes, To-do list
Operating system installed	40
Product color	White
Battery type	BL-5C
Talk time (2G)	4 h
Battery capacity	1020 mAh
Standby time (2G)	396 h
Volume control	Digital
Subscription type	-
Bluetooth version	2.1+EDR

Weight and Dimensions

Depth	14.65 mm
Width	45 mm
Height	108 mm
Volume	67.9 cm³
Weight	74.1 g
