Nokia C2-00 Service Manual

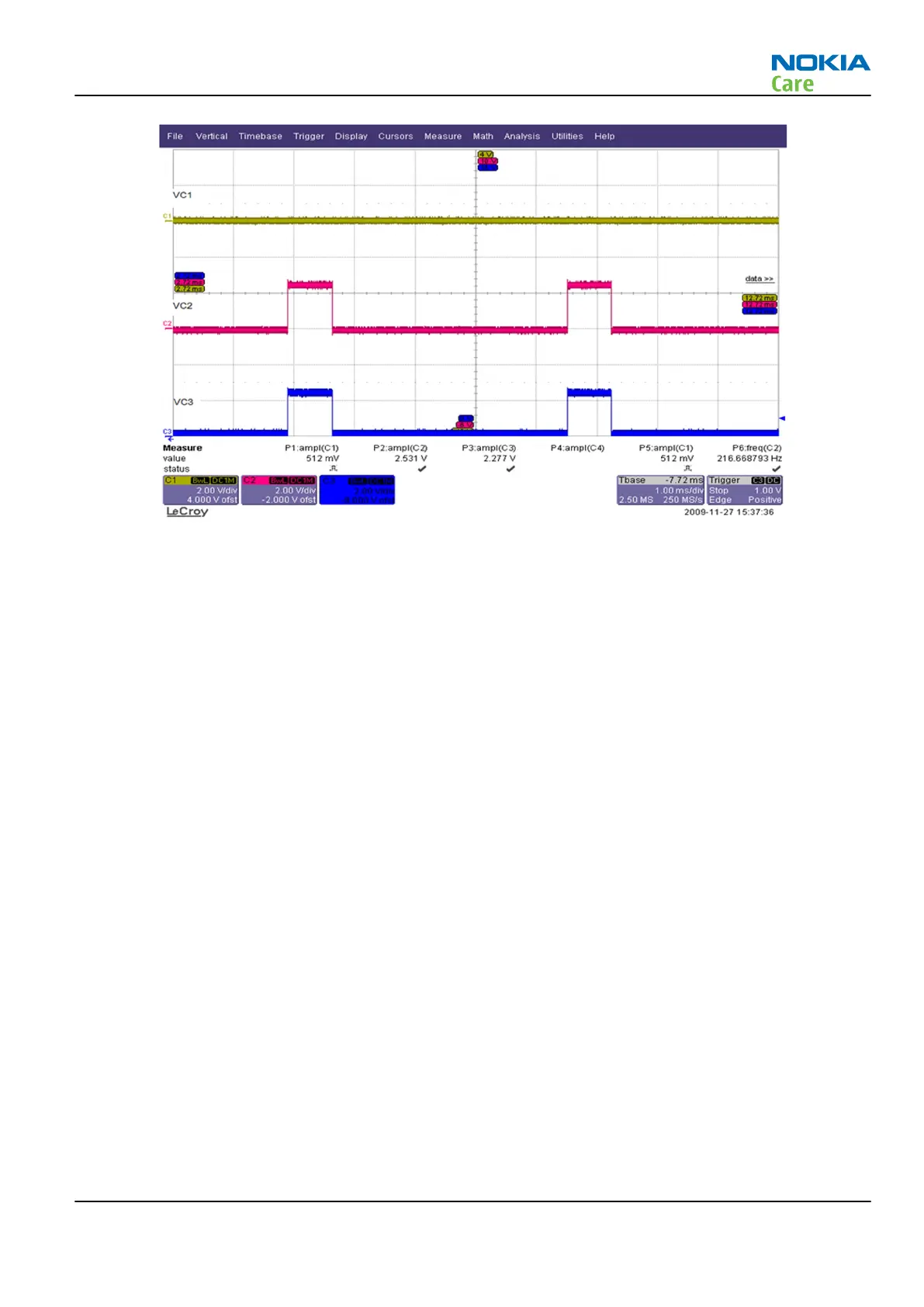

Figure 42 X-Gold RX pin volts @ L7100(LB) / L7101(HB)
Transmitter troubleshooting
Transmitter troubleshooting overview
If the phone failure identified at maintenance step1&3 is transmitter fail, and then the phone should be set
to the TX check mode, and then follow the corresponding workflow below for troubleshooting.
Abbreviation and terms:
Specific abbreviations used in TX troubleshooting workflow are described here:
Abbreviation Definition
TXLB_PI_ATT R7107, R7112, R7105
TXHB_PI_ATT R7104, R7108, R7103
TXLB_H4FILTER C7108, C7120, L7504
TXHB_H2FILTER C7109, C7101, L7106
FEM_TxCtl VC1,VC2, VC3, PAEN
FEM_TxCtrlRes R7106, R7110, R7113,R7100
FEM_TxCtrlCap C7105, C7107, C7110,C7132
FEM_BatComp L7707, C7135, C7125, C7117, C7111
RM-704
RF Troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 – 19
Copyright © 2011 Nokia. All rights reserved.

Nokia C2-00 Specifications

General

Display type	TFT
Display diagonal	1.8 \
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
User memory	10 MB
Internal memory	16 MB
Flash card support	Yes
Maximum memory card size	32 GB
Rear camera resolution	640 x 480 pixels
Rear camera resolution (numeric)	0.3 MP
Playback formats	MP3, WMA, AAC, eAAC, eAAC +
USB 2.0 ports quantity	1
USB version	2.0
Headphone connectivity	3.5 mm
Data network	CSD, GPRS, GSM, HSCSD
SIM card capability	Dual SIM
GPRS multislot class	12
2G bands (primary SIM)	900, 1800 MHz
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Maximum frame rate	10 fps
Video capture resolution (max)	128 x 96 pixels
Ringer type	Polyphonic
Audio formats supported	AAC, MP3, WMA
Form factor	Bar
Personalization	Menu, Themes
Phonebook capacity	500 entries
Text prediction system type	T9
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Converter, Notes, To-do list
Operating system installed	40
Product color	White
Battery type	BL-5C
Talk time (2G)	4 h
Battery capacity	1020 mAh
Standby time (2G)	396 h
Volume control	Digital
Subscription type	-
Bluetooth version	2.1+EDR

Weight and Dimensions

Depth	14.65 mm
Width	45 mm
Height	108 mm
Volume	67.9 cm³
Weight	74.1 g
