Nokia C2-00 Service Manual

Service tools
Product specific tools
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-704. For the correct use of the service devices, and the best effort of workbench setup,
please refer to various concepts.

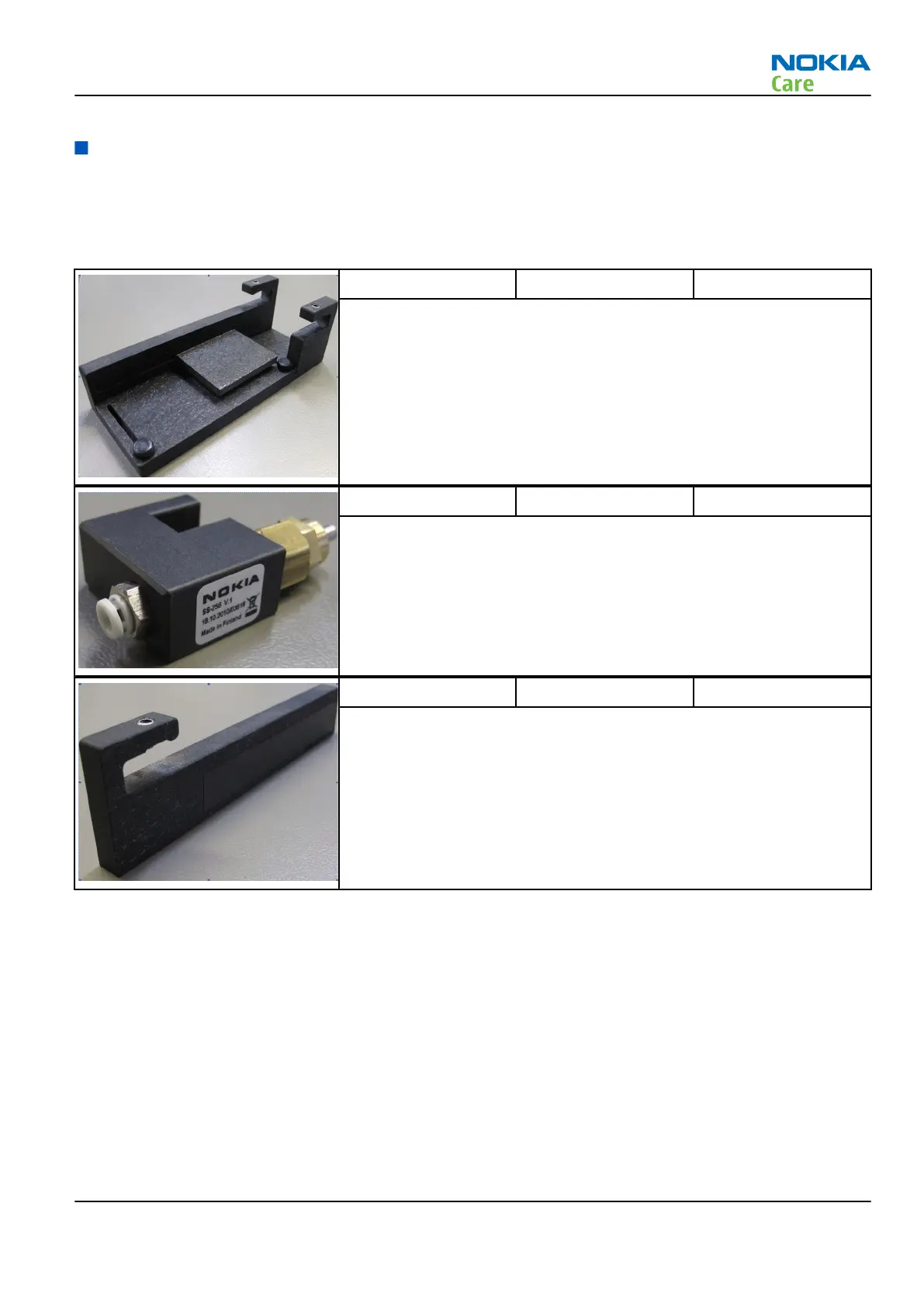

SS-255 Protection plate
SS-255 is designed as protection plate working with SS-256 for OKI
soldering machine.
SS-256 Blowing nozzle
SS-256 is a blowing nozzle which can be used with protection plates
for different soldering machines.
SS-257 Protection plate
SS-257 is designed as protection plate working with SS-256 for Martin
soldering machine.
General tools
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-704. For the correct use of the service devices, and the best effort of workbench setup,
please refer to various concepts.
RM-704
Service Tools and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 – 5
Copyright © 2011 Nokia. All rights reserved.

Nokia C2-00 Specifications

General

Display type	TFT
Display diagonal	1.8 \
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
User memory	10 MB
Internal memory	16 MB
Flash card support	Yes
Maximum memory card size	32 GB
Rear camera resolution	640 x 480 pixels
Rear camera resolution (numeric)	0.3 MP
Playback formats	MP3, WMA, AAC, eAAC, eAAC +
USB 2.0 ports quantity	1
USB version	2.0
Headphone connectivity	3.5 mm
Data network	CSD, GPRS, GSM, HSCSD
SIM card capability	Dual SIM
GPRS multislot class	12
2G bands (primary SIM)	900, 1800 MHz
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Maximum frame rate	10 fps
Video capture resolution (max)	128 x 96 pixels
Ringer type	Polyphonic
Audio formats supported	AAC, MP3, WMA
Form factor	Bar
Personalization	Menu, Themes
Phonebook capacity	500 entries
Text prediction system type	T9
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Converter, Notes, To-do list
Operating system installed	40
Product color	White
Battery type	BL-5C
Talk time (2G)	4 h
Battery capacity	1020 mAh
Standby time (2G)	396 h
Volume control	Digital
Subscription type	-
Bluetooth version	2.1+EDR

Weight and Dimensions

Depth	14.65 mm
Width	45 mm
Height	108 mm
Volume	67.9 cm³
Weight	74.1 g
