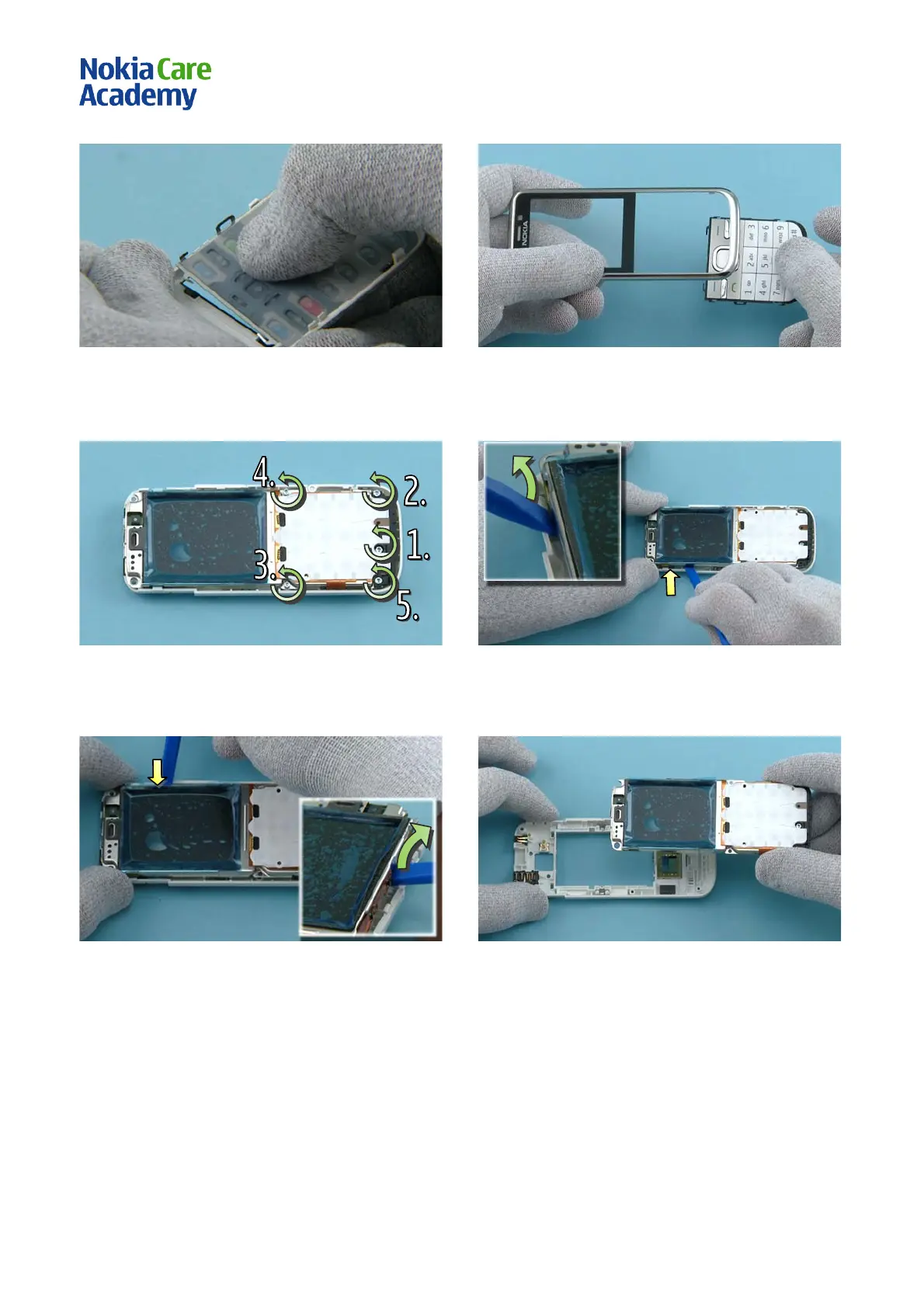

13) Press out the KEYMAT ASSY fro m the A-COVER
ASSY.
14) Remove the KEYMAT ASSY.
15) Unscrew the four TORX+ size 6 screws in the
order shown.
16) To release the engine board, open the first
shown clip holding the B-COVER ASSY with the SS-93.
17) Open the second shown clip of the B-COVER
ASSY.
18) Lift up the PWB together w ith UI SHI ELD, LCD
and ANTENNA.
