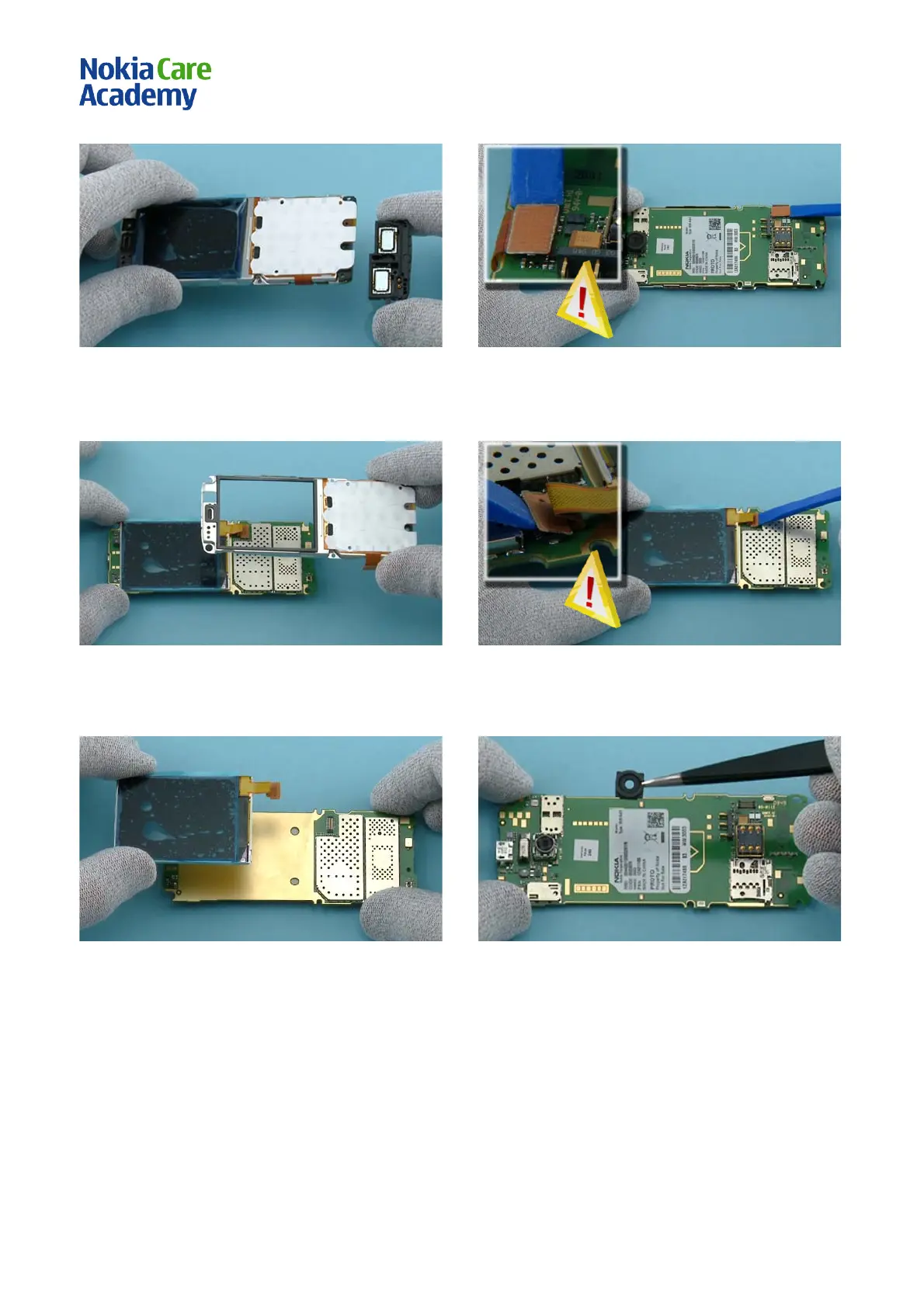

19) Remove the ANTENNA.
20) Use the SS-93 to open the UI CONNECTOR.
Be careful not to damage the connector or the
components nearby!
21) Remove the UI SHIELD ASSY.
22) Use the SS-93 to open the LCD CONNECTOR.
Be careful not to damage the connector!
23) Remove the LCD.
24) Use the tweezers to remove the CAMERA BOOT.
