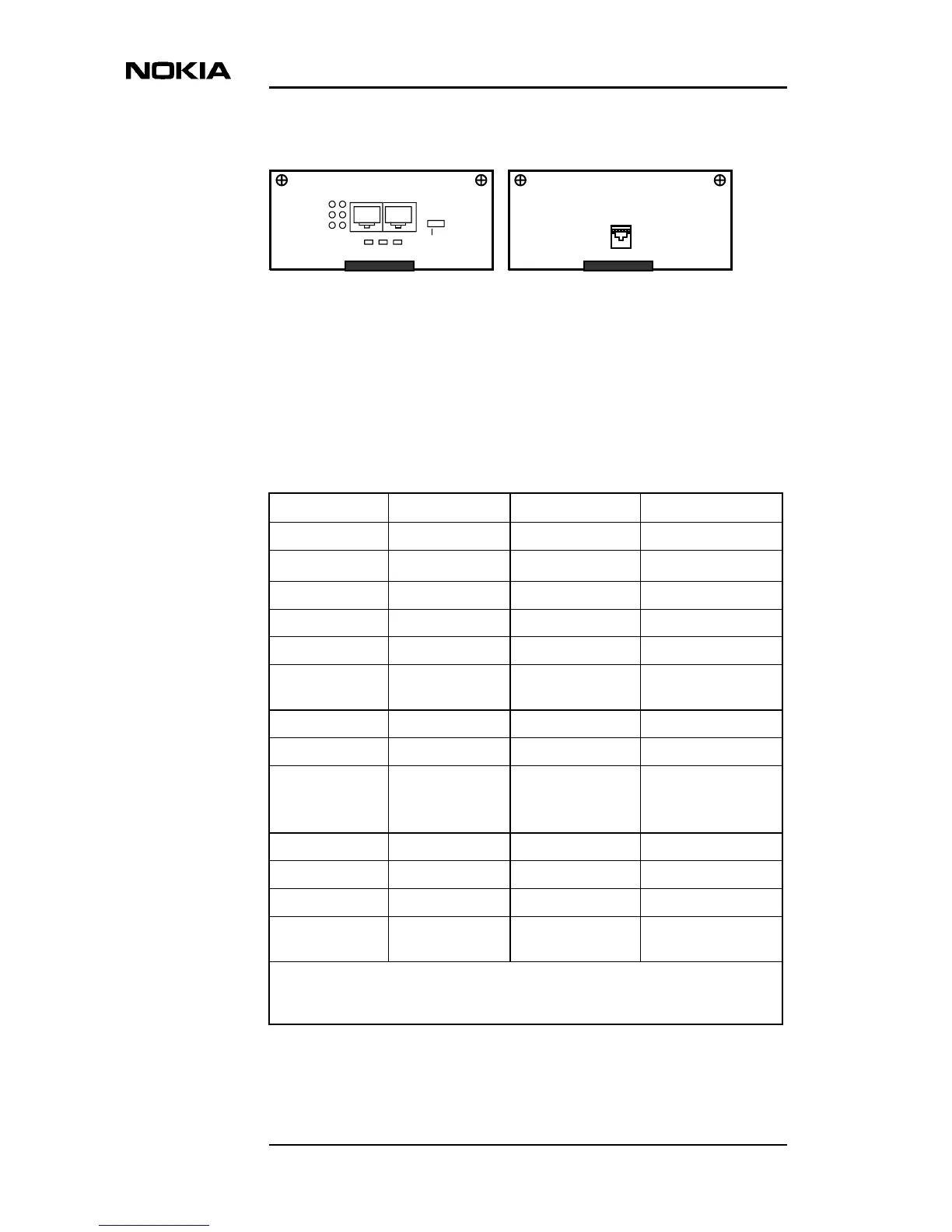

Figure 10. DTE interface options (continued)
The interface type is selected by installing an appropriate interface unit. You can
do this without opening the terminal's case. The interface unit types are given in
Table 2.
Ethernet
18
LMI 10Base-T
EC PWR
EA
EL WL
CAS
Table 2. DTE interface adapter units
Adapter type Electrically Connector type Product code
V.11 V.11, V.10 D37F DS 62603.11
V.24
V.28
1)
D25F DS 62602.11
V.35 V.35, V.28 34F DS 62604.11
X.21 V.11 D15F DS 62605.11
G.703/64k G.703 D15F DS 62609.11
G.703/2M G.703 SMBM, BNC or
D9F
DS 62607.11
G.704/2M G.703 SMBM or D9F DS 62608.11
EIA-530-A V.11, V.10 D25F DS 62610.11
ET 10Base-T RJ45 E66210.02
(Router/Bridge)
E66210.22 (Bridge)
D2048 G.703 RJ45 E62628.01
D2048 G.703 RJ45 or BNC E62628.10
D2048 G.703 RJ45 or SMB E62628.11
VF Analogue 2/4-
wire
RJ45 E62612.02
1) In accordance with the ITU-T Recommendation V.28, this type of electrical
interface can be used up to 19.2 kbit/s. With proper cabling, however, operation up to
64 kbit/s is possible.
