Nokia DNT2Mi sp/mp - Page 88

Data Network Terminal Single-port and Multiport Operating Instructions
88 (128) © Nokia Corporation DN01145897
Nokia Proprietary and Confidential Issue2-0en

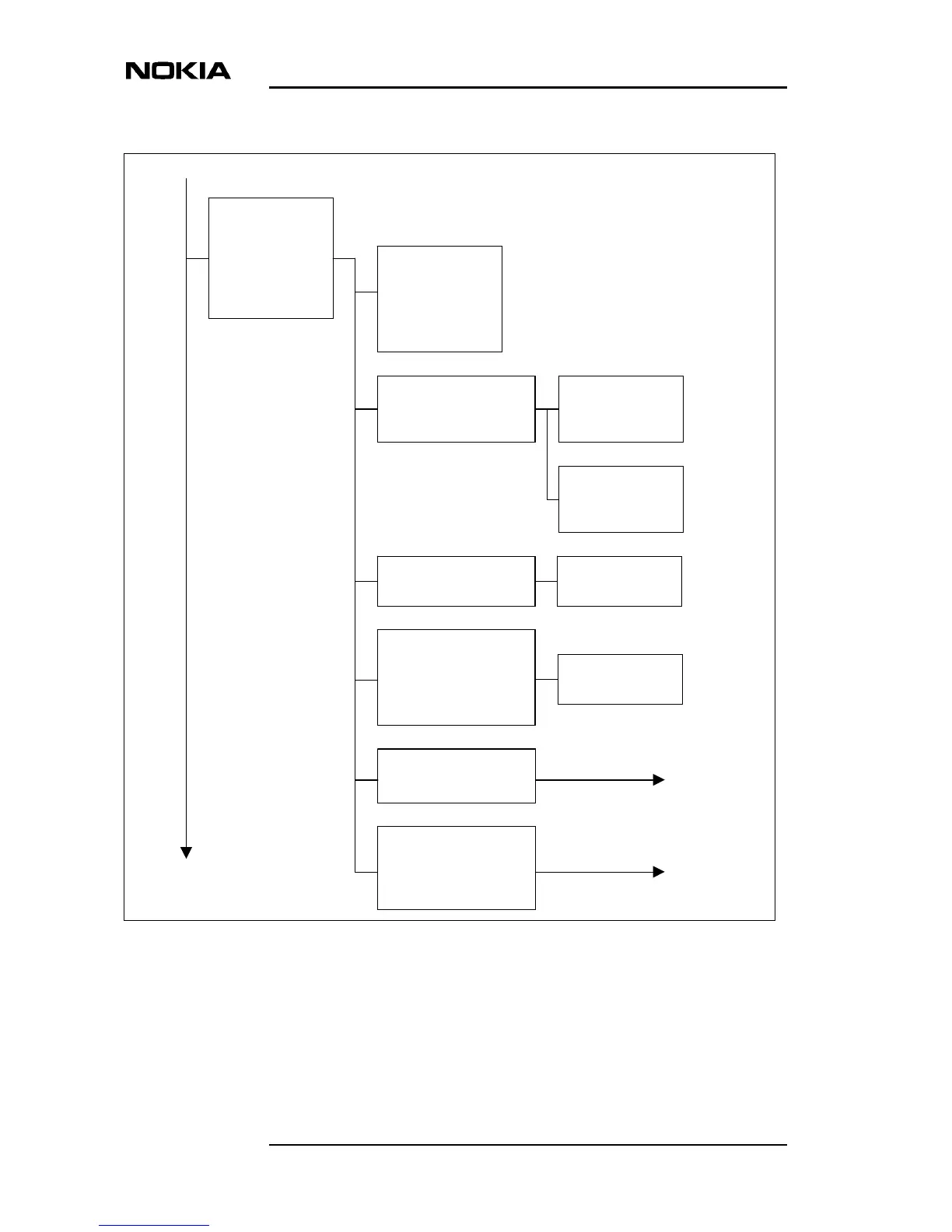

Figure 65. Settings menu structure (continued), G.704/2M & D2048 adapters
6,4,Port#,3
Idle channels:
0 Display
1 Modify code
6,4,port #,3,1
6,4,port #,3,5
G.704/2M & D2048 Interface settings:
G.704/2M DTE:
0 Display
1 Framing format
4 TS map
5 Idle channels
6 Sa bits usage
7 BER alarm limit
8 BER alarm severity
6,4, port #, 3
Framing format:
0 Display
1 No frame
2 Basic frame
3 CRC multiframe
4 BF monitoring *)
5 CRC monitoring *)
*) Only with D2048 adapter
6,4,port #,3,4
TS map:
0 Display
1 Set equal to line
2 Select 1st TS
3 Select 1st TS & special TS
Sa bits usage:
0 Display
1 Fill Sa4
2 Fill Sa5
3 Fill Sa6
4 Fill Sa7
5 Fill Sa8
6,4,port #,3,6
BER alarm limit:
0 Display
1 E-3
2 E-6
6,4,port #,3,7
BER alarm severity:
0 Display
1 No alarm
2 A-level alarm
3 B-level alarm
4 AS-level alarm
6,4,port #,3,8
6,4,port #,3,7,0..2
6,4,port #,3,8,0..4
TS map:
Give 1st TS (1...31)
6,4,port #,3,4,2
6,4,port #,3,6,1..5
Give filling value:
0 or 1
6,4,port #,3,5,1
Give idle code:
0 to FF
TS map:
Give 1st TS and
special TS (eg. 2.31)
6,4,port #,3,4,3
