Nokia N86 Service Manual

Nokia N86 8MP
RM-484 / RM-485 / RM-486
Service Manual Level 1&2
15 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

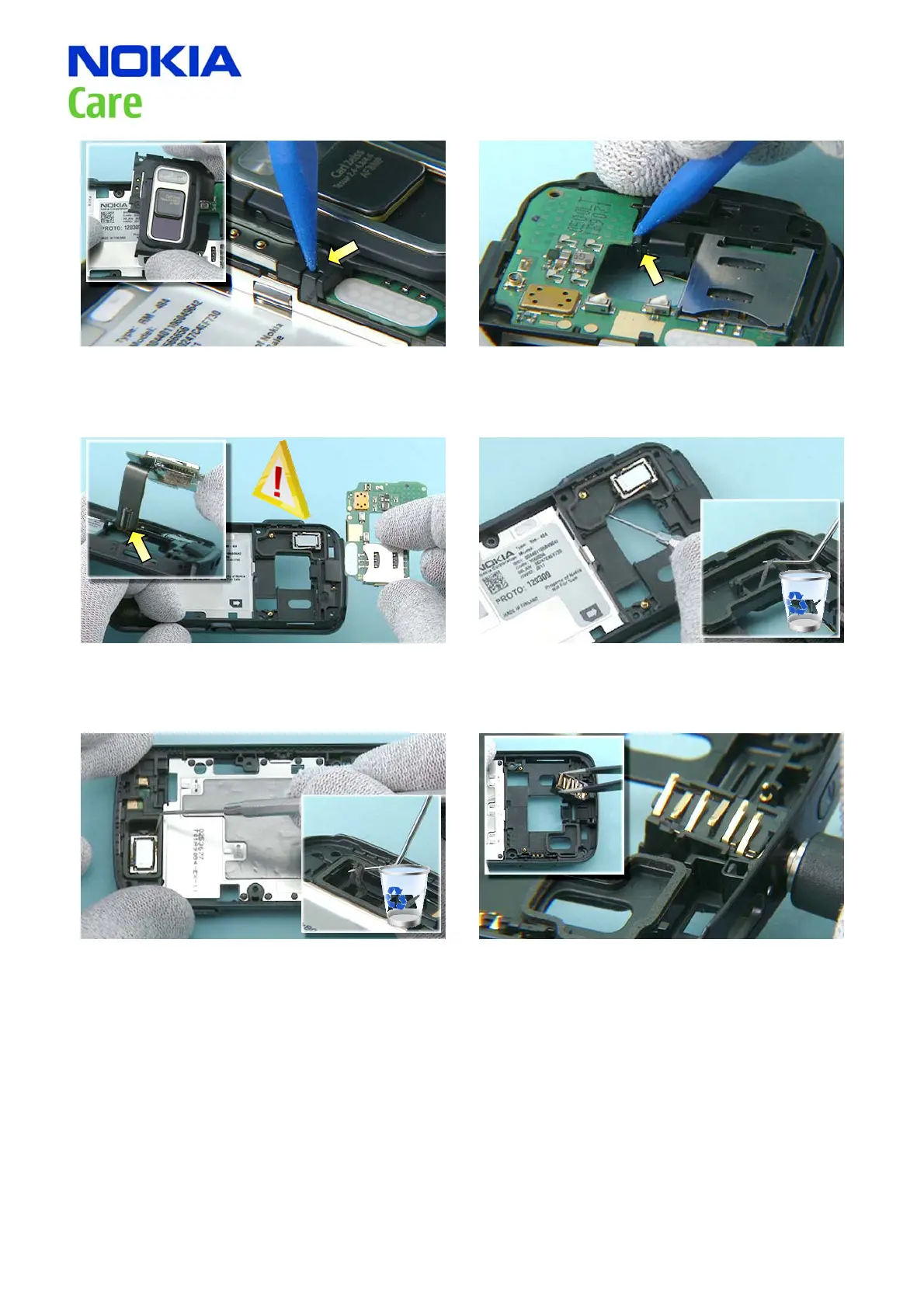

19) Turn the lower block and release the second clip
of the CAMERA BEZEL assembly. Then remove the
assembly.
20) Use the sharp end of the SS-93 to release the
2SS 2ND ENGINE MODULE from B-COVER ASSY.
21) Be careful not to damage the CONNECTION FLEX,
while removing the 2nd engine module.
22) Use the dental tool to release the IHF speaker.
The IHF adhesive cannot be reused.
23) Use the dental tool to release the second IHF
speaker. The IHF adhesive cannot be reused.
24) Push out the AV connector with the AV plug and
remove the connector with the tweezers.

Nokia N86 Specifications

General

Display diagonal	2.6 \
Display resolution	320 x 240 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Internal memory	8000 MB
Sensor type	CMOS
Rear camera type	Single camera
Rear camera resolution	3264 x 2448 pixels
Video capture resolution (max)	640 x 480 pixels
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Countdown timer, Notes, Stopwatch, To-do list
Headphone connectivity	3.5 mm
Text prediction system type	T9
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Form factor	Slider
Product color	Black
Talk time (2G)	6.9 h
Battery capacity	1200 mAh
Standby time (2G)	363 h
2G standards	EDGE, GPRS
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	16.5 mm
Width	51.4 mm
Height	103.4 mm
Weight	149 g
