Nokia N86 Service Manual

Nokia N86 8MP
RM-484 / RM-485 / RM-486
Service Manual Level 1&2
16 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

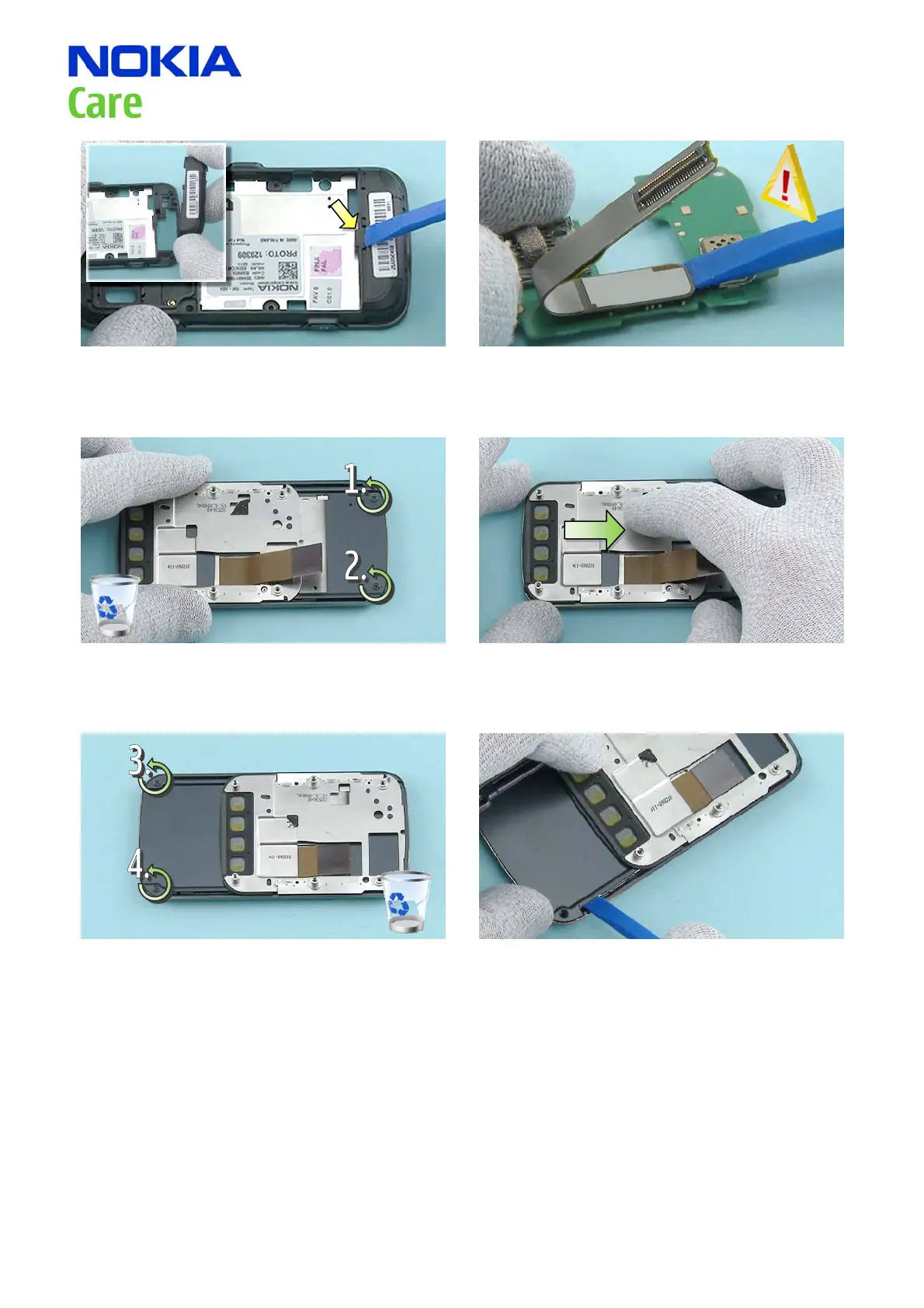

25) Use the SS-93 to detach the antenna and then
remove it.
26) Disconnect the CONNECTION FLEX from the 2SS
2ND ENGINE MODULE with the SS-93. Be careful with
the components around the connector!
27) Unscrew the two Phillips size 00 screws in the
order shown. Do not use them again.
28) Drag the slide to the opposite side.
29) Then unscrew these two Phillips size 00 screws
in the order shown. These screws cannot be used
again.
30) Detach the SLIDE MODULE from the A-COVER assy
by lifting it up with the SS-93.

Nokia N86 Specifications

General

Display diagonal	2.6 \
Display resolution	320 x 240 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Internal memory	8000 MB
Sensor type	CMOS
Rear camera type	Single camera
Rear camera resolution	3264 x 2448 pixels
Video capture resolution (max)	640 x 480 pixels
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Countdown timer, Notes, Stopwatch, To-do list
Headphone connectivity	3.5 mm
Text prediction system type	T9
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Form factor	Slider
Product color	Black
Talk time (2G)	6.9 h
Battery capacity	1200 mAh
Standby time (2G)	363 h
2G standards	EDGE, GPRS
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	16.5 mm
Width	51.4 mm
Height	103.4 mm
Weight	149 g
