Nokia N86 Service Manual

Nokia N86 8MP
RM-484 / RM-485 / RM-486
Service Manual Level 1&2
17 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

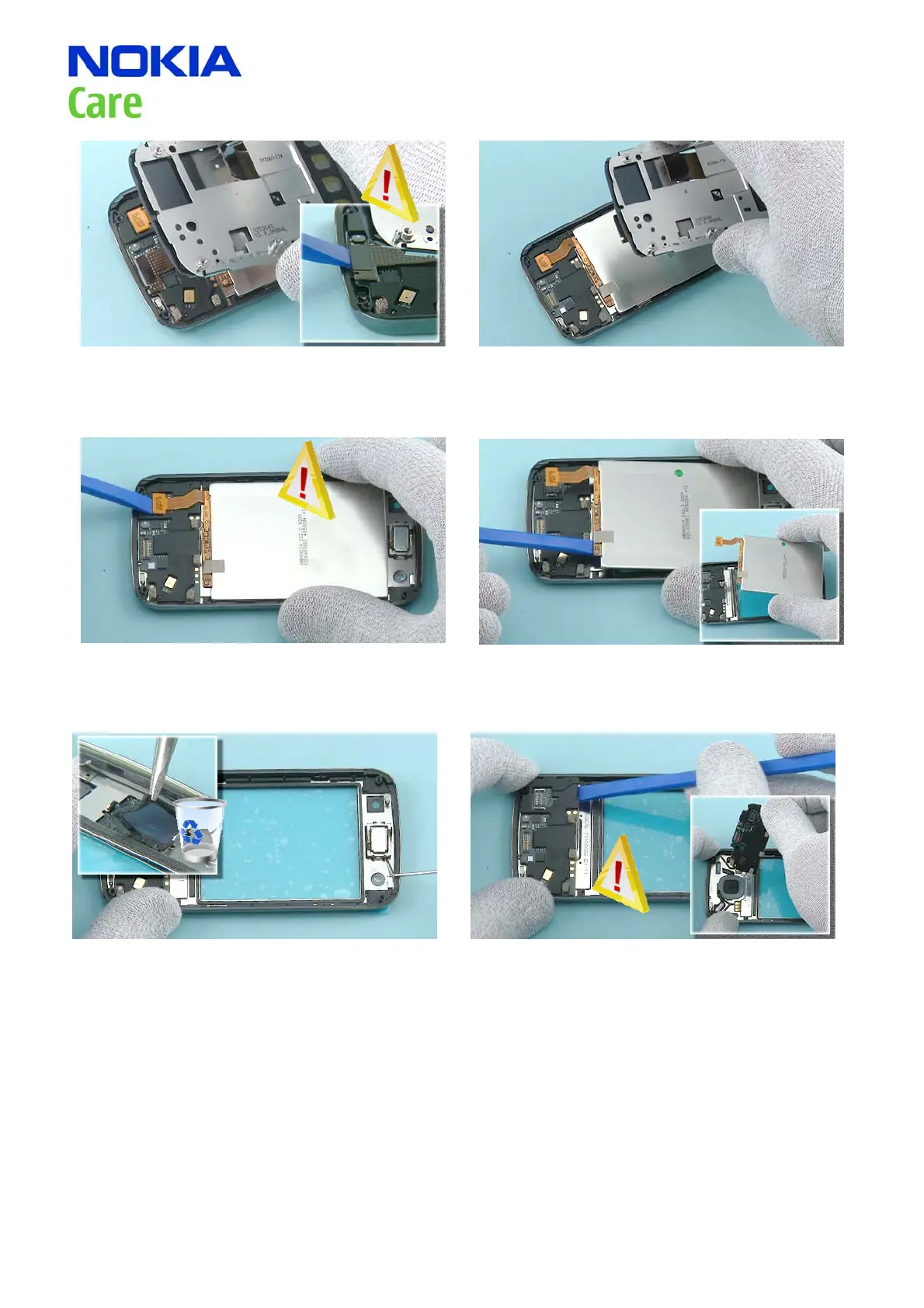

31) Lift up the SLIDE MODULE slightly and use the SS-
93 to disconnect the SLIDE FPC assembly. Be careful
to not to damage the connector.
32) The slide assy can now be removed.
33) Disconnect the LCD connector with the SS-93. 34) Lift the LCD up with the SS-93 and remove the
LCD.
35) Lift up the EARPIECE with the dental tool and
then remove it. Remove the DUSTNET EARPIECE with
the tweezers. It cannot be reused.
36) Carefully detach the S 60 FPC assembly with the
SS-93 and remove the assembly.

Nokia N86 Specifications

General

Display diagonal	2.6 \
Display resolution	320 x 240 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Internal memory	8000 MB
Sensor type	CMOS
Rear camera type	Single camera
Rear camera resolution	3264 x 2448 pixels
Video capture resolution (max)	640 x 480 pixels
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Countdown timer, Notes, Stopwatch, To-do list
Headphone connectivity	3.5 mm
Text prediction system type	T9
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Form factor	Slider
Product color	Black
Talk time (2G)	6.9 h
Battery capacity	1200 mAh
Standby time (2G)	363 h
2G standards	EDGE, GPRS
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	16.5 mm
Width	51.4 mm
Height	103.4 mm
Weight	149 g
