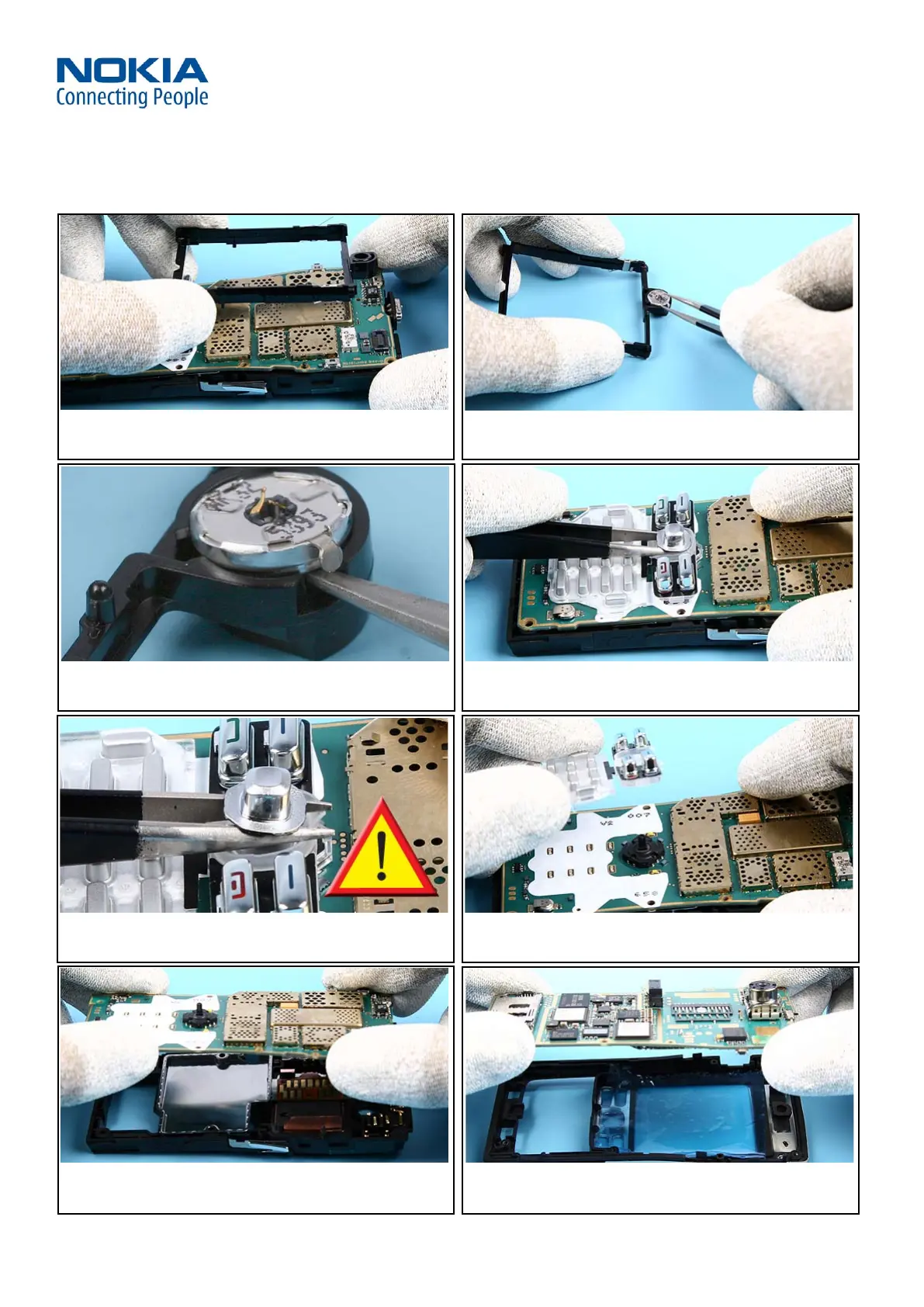

25. Remove the DISPLAY FRAME ASSEMBLY.
28. Use the tweezers when lifting off the BUTTON JOYSTICK.
29. Take care of the T9 KEYMAT ASSEMBLY.
30. Lift up the T9 KEYMAT ASSEMBLY.
26. Note the grounding clips of the DISPLAY FRAME ASSEMBLY
when removing the EARPIECE.
27. Lift up and remove the EARPIECE with tweezers carefully.
31. Remove the ENGINE MODULE. 32. Use an A-COVER as support when removing the
CAMERA MODULE.
