Service Manual N91 RM-43 / RM-158
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 3.0
MGR
Page (34)

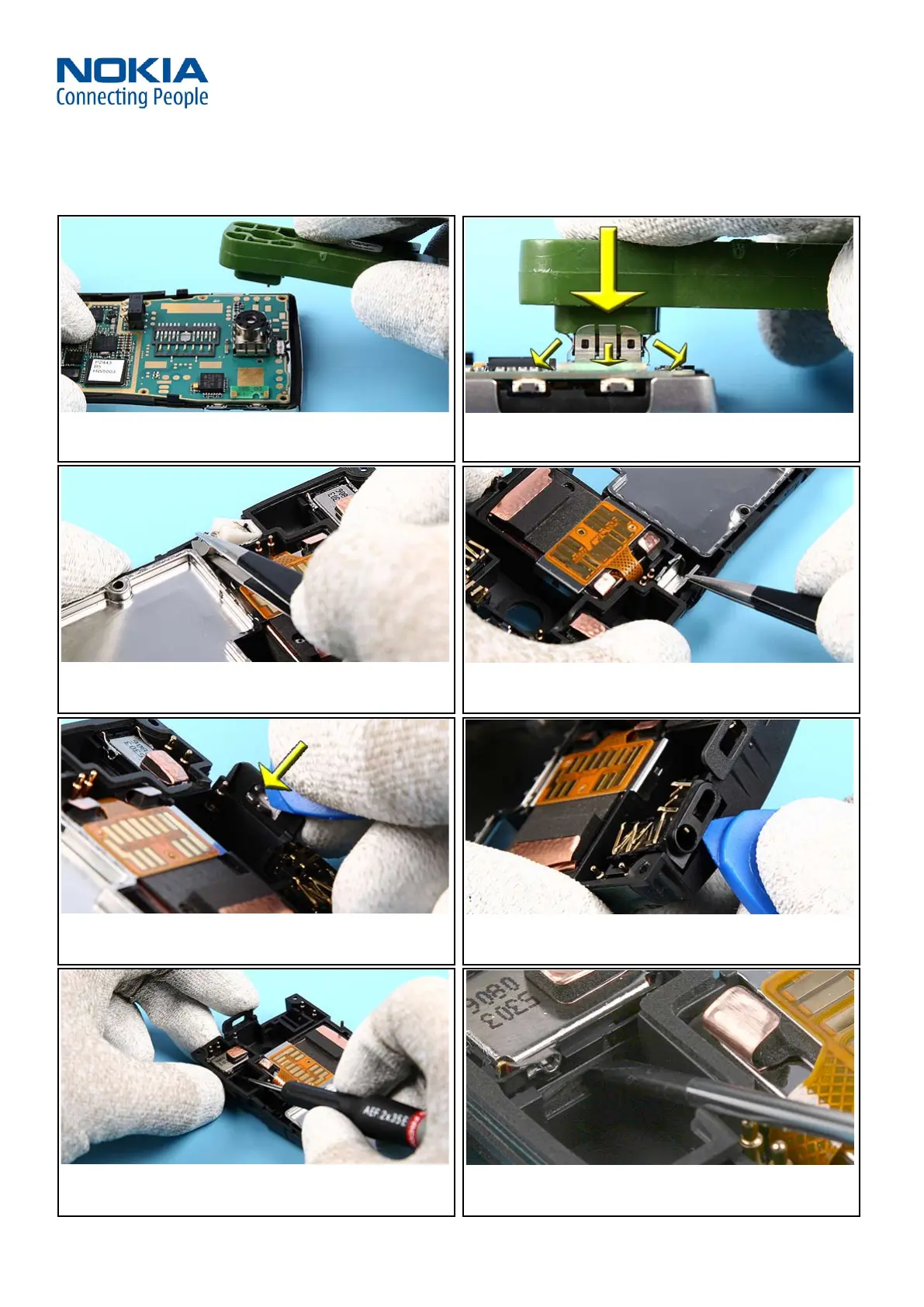

33. Position the SS-15 Camera removal tool and grip it. 34. Pull out the CAMERA MODULE after the clips are released.
35. Remove the VIBRA ASSY. 36. Pull out the VIBRA SHIELD. Mind the grounding clips.
37. Unlock and remove the HOLD SWITCH HANDLE with the SRT-6. 38. Lift the 3,5 AUDIO JACK and remove it.
39. Use the slotted screwdriver to release the IHF SPEAKER.
40. Note not to damage the speaker adhesive.
