Dialog mode: modal

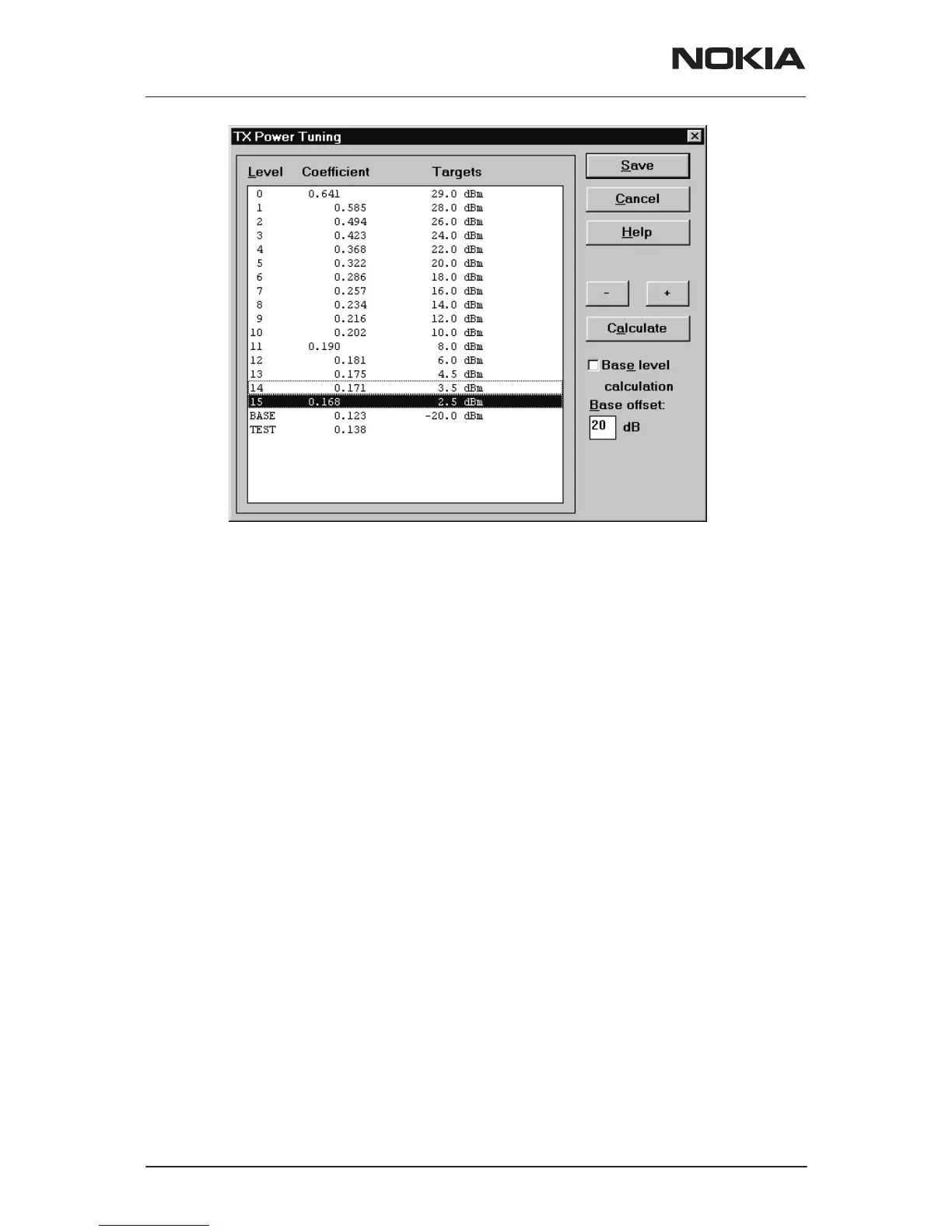

TX Power Tuning dialog includes following items:
Level, Coefficient and Targets list box (ALT+L):
The power is presented in GSM or PCN values. The base pow-
er is selected automatically when the dialog is opened. The
test value is not saved to the EEPROM. The test value can be
changed during tuning as other power coefficients and the pro-
gram remembers its value when tuning function is activated
later again.
If there is more power levels in the phone that can fit into win-
dow the window is scrollable. When phone is initialised the pro-
gram asks the number of power levels used in the phone.
Only three power coefficients (highest, third smallest and low-
est) are needed to tune (left justified Coefficients) and the rest
of them are calculated.
The tuning position is highlighted and can be tuned with +/–
keys or left/right cursor keys.
Calculate button (ALT+C):
The calculation is activated with this button. The power coeffi-
cients which are calculated from the tuned coefficients are dis-
played on the different columns than the others. All values can
be tuned if needed. When Base level calculation is checked,
base level is calculated and new base level target to list box is
updated.
Base level calculation check box:
If this box is checked the base level is calculated.
