NSM–3/3D
Non Serviceable Accessories
PAMS Technical Documentation
Page 8
Issue 3 11/2000
Nokia Mobile Phones Ltd.

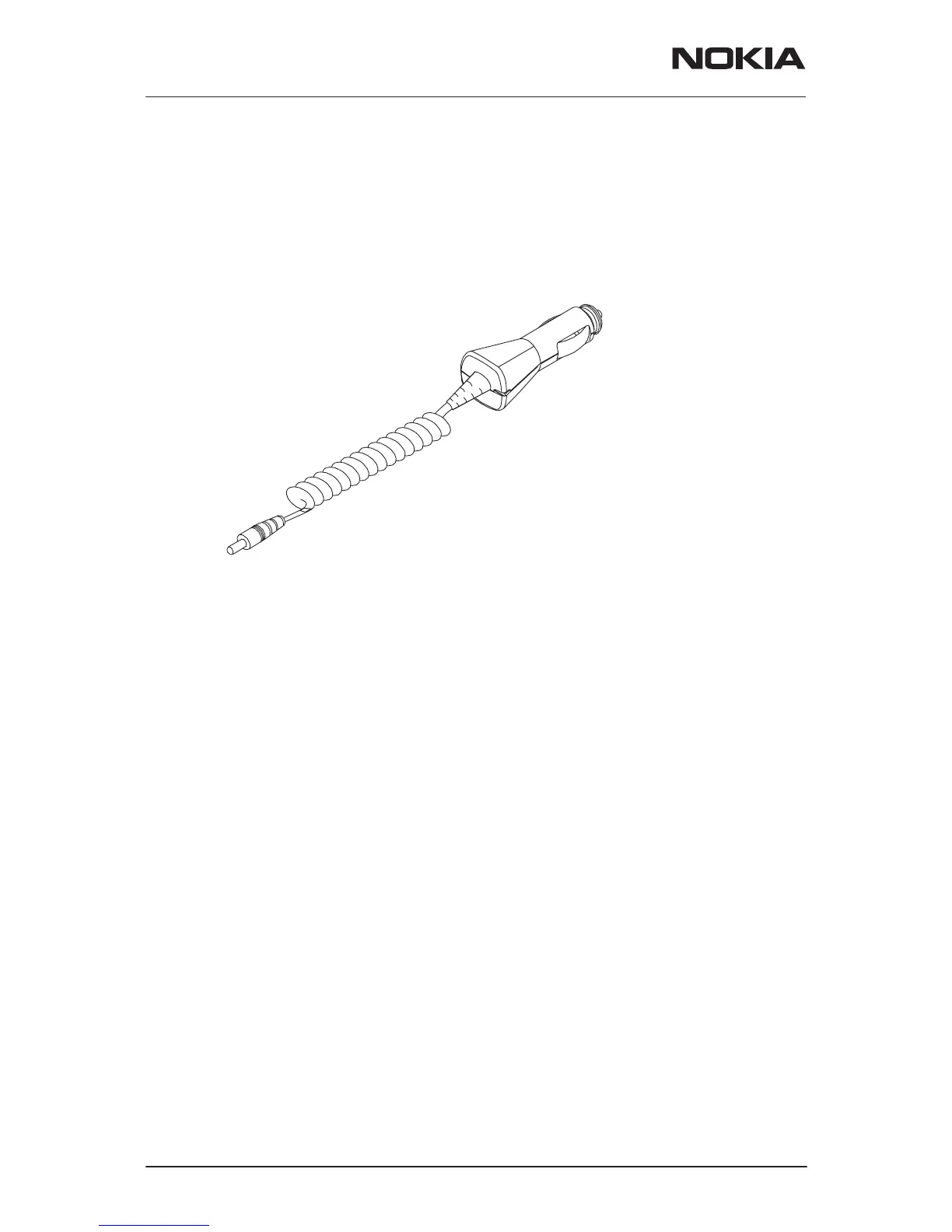

Cigarette Lighter Charger LCH–9
A green light indicates that the cigarette lighter charger is ready for charg-
ing. Check the charging status on the phone display. The input voltage
can be from 11 or 32 V d.c., negative grounding.
Universal mobile charger can be used with all car accessories provided
for your phone.
Product Code
Cigarette lighter charger LCH–9:
0675120
Specification
Connectors
• input:
D 21/23 mm
• output:
3.5 mm DC plug
Protection:
input fused, output current limit 850 mA
Voltage
• input:
11...32 V
• output (nominal):
8.4 V
Nominal output current:
800 mA
