NSM–3/3D
Service Tools
PAMS Technical Documentation
Page 5
Issue 4 02/2002
Nokia Corporation.
Test Jig MJS-9
The Test Jig MJS-9 is used for repair of system/RF module*. The zoom in
picture contains two changeable over voltage protection components:
SM Fuse F2.0 A 32V 1206 F 001 T 5119002 (larger of the two)
VWM 5.6V VC15.5 R 008 T 1825019
See next page for additional info.
Product Code
Module Jig MJS-9: 0770154

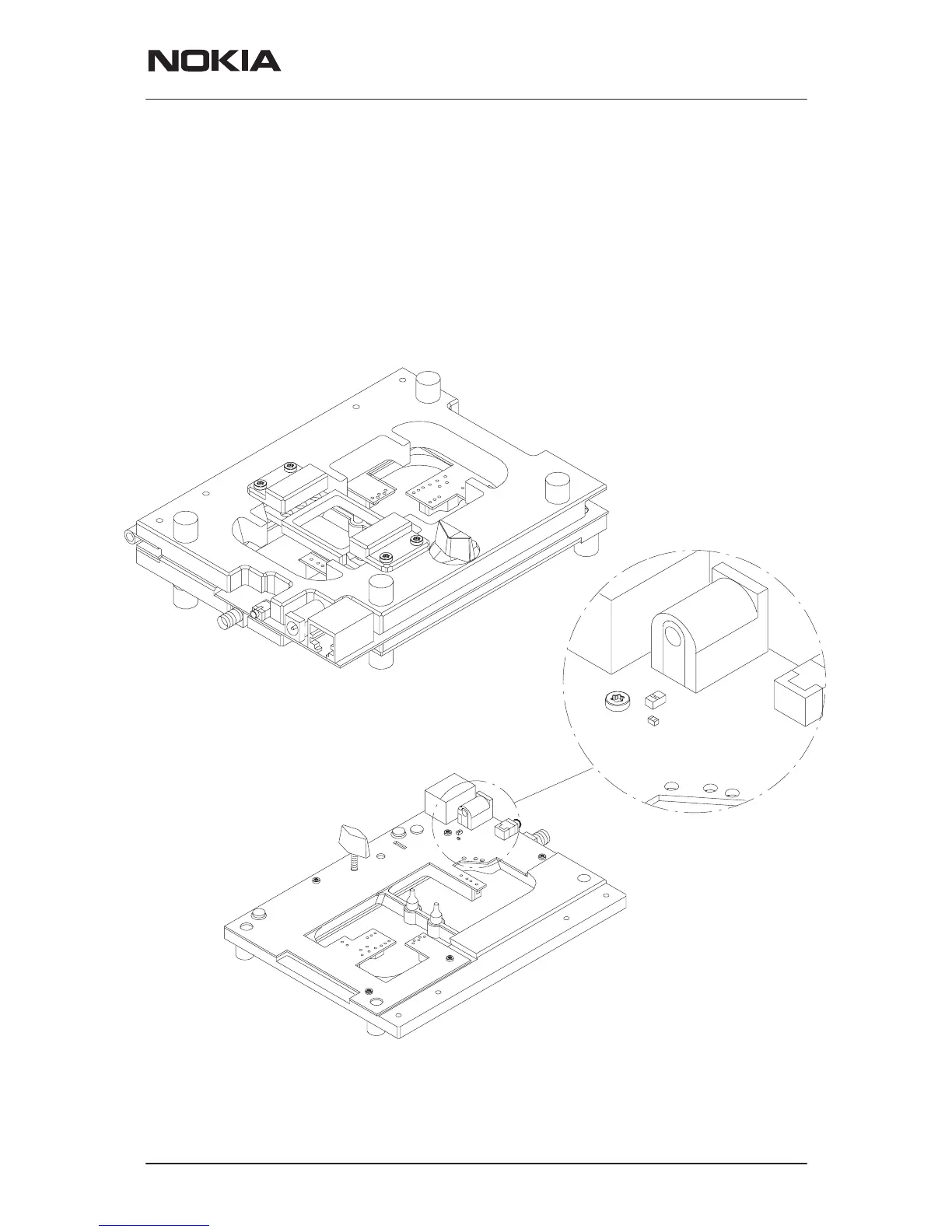

View of MJS-9
*Note: The nominal supply voltage for MJS-9 is +8.0 V.
The supply voltage must not exceed +15.0 V.
(MJS-9 has overvoltage protection).
