NSM–3/3D
Service Software Instructions
PAMS Technical Documentation
Page 30
Issue 4 02/2002
Nokia Mobile Phones Ltd.
Dialog mode: modal

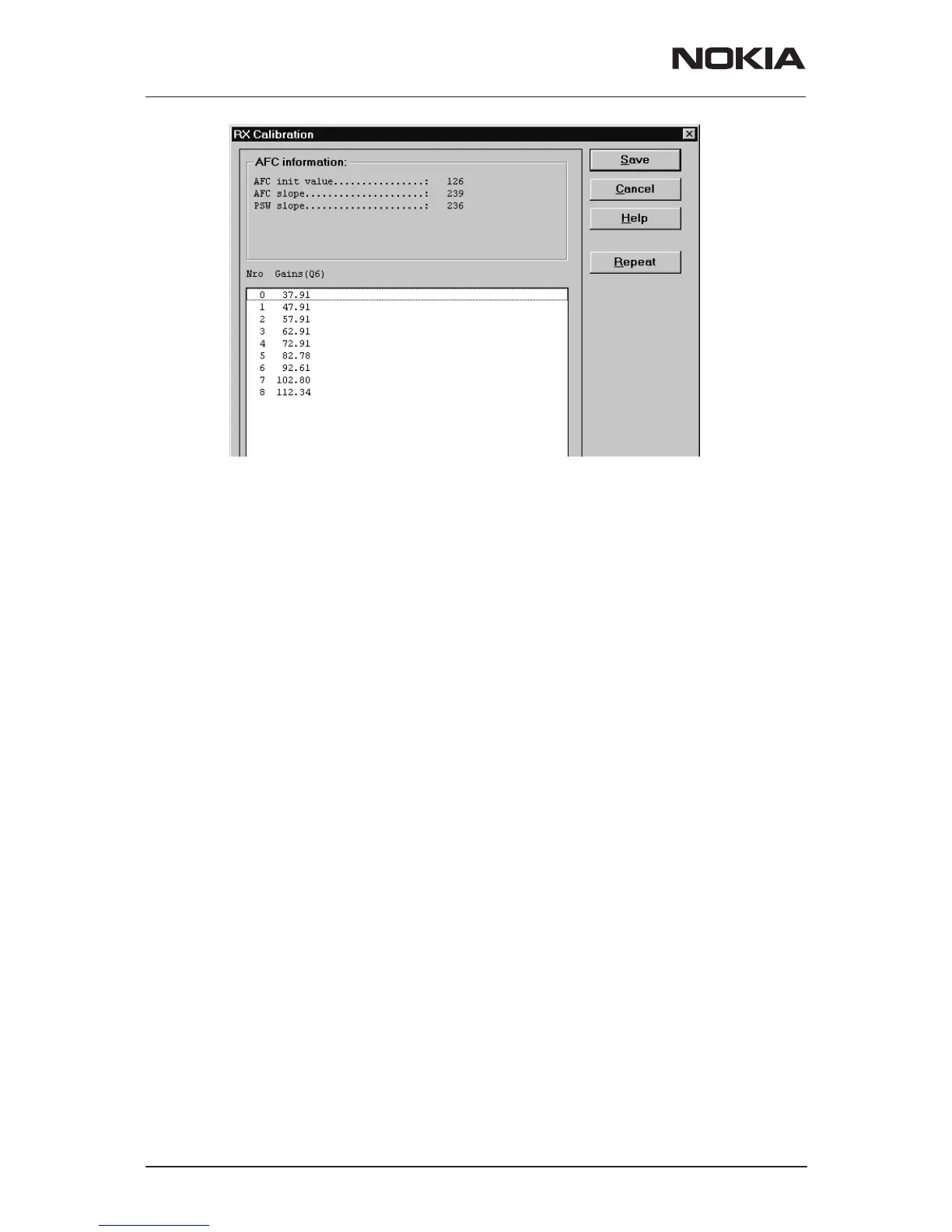

RX Calibration dialog includes the following items:
AFC information box:
Shows AFC init value, AFC slope and PSW slope values.
AGC List box (ALT+A):
AGC, DAC, Voltage.
Repeat button (ALT+R):
Measurement can be started again by pressing this button.
Save button (ALT+S):
Dialog is closed and tuning
is saved
to phone.
Cancel button (ESC):
Dialog is closed and tuning
is not saved
to phone.
When calibration is ended, the DAC value checking is made and if it is not
successful, error message is shown.
When exit is made, the next selections are set to the values which were
selected before this adjustment.
Operation Mode
Update RF Information window
The exit and the use of AGC–control values is done same way as exit
from power level tuning and power coefficient use:
NOTE: After GSM calibration the same tuning must be made for the PCN
band also! To change the band go to
Product Menu
and select
Band
,
PCN.
