Nokia RM-217 - Service Concept for RF Testing and RF;BB Tuning

Type Description
Cables
PCS-1 Power cable
XCS-4 Modular cable
XRS-6 RF cable
GPIB control cable
USB cable
Service concept for RF testing and RF/BB tuning

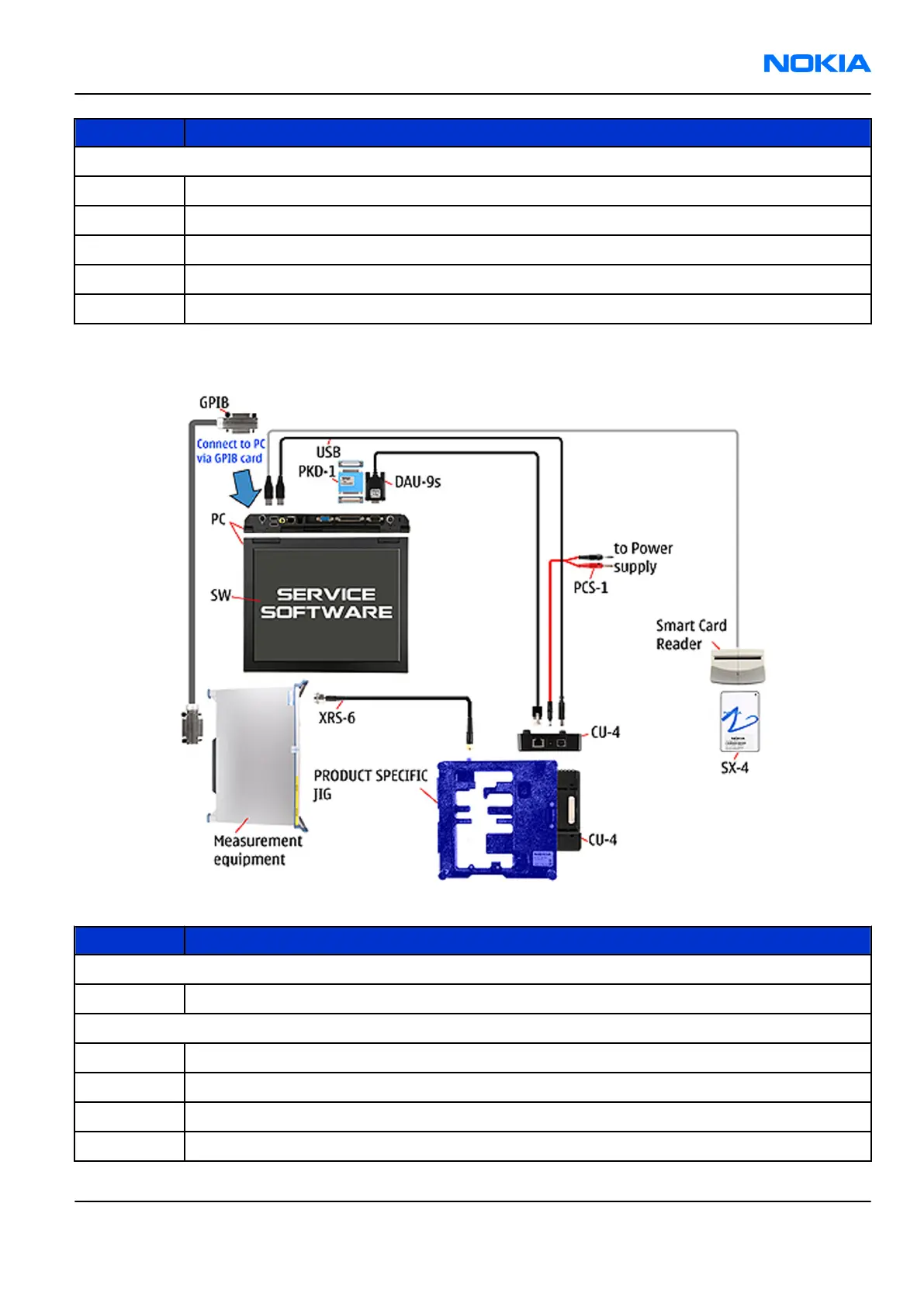

Figure 32 Service concept for RF testing and RF/BB tuning
Type Description
Product specific tools
MJ-122 Module jig
Other tools
CU-4 Control unit
SX-4 Smart card
Measurement equipment
Smart card reader
RM-217; RM-222
