Nokia RM-307 Service Manual

2505 (RM-307)
Nokia Customer Care

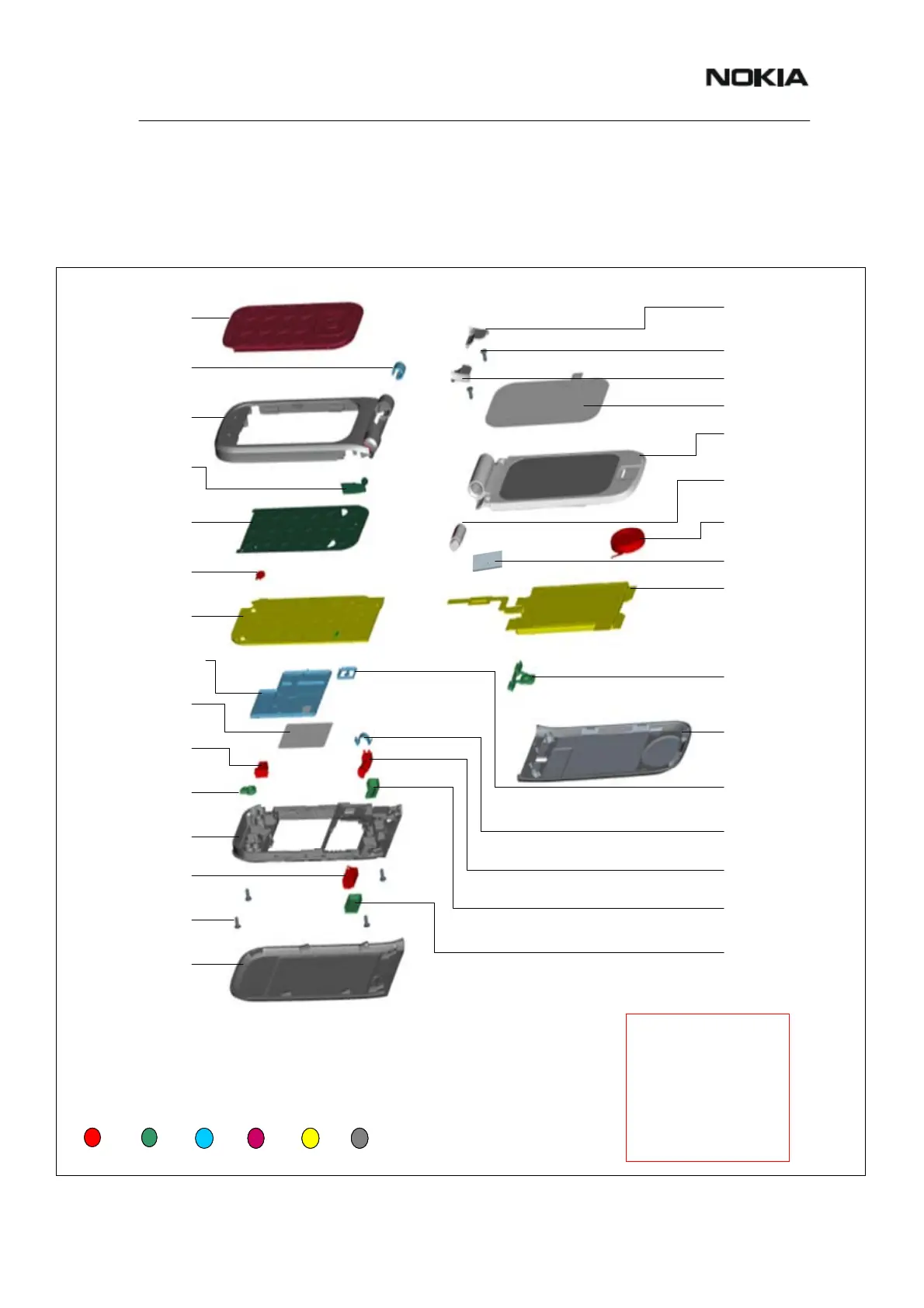

Exploded View and Component Disposal
Refer to the image below for the recommended ecologically sound disposal of
components. Colorized components show the different categories.
Electro
Silicon Metal Plastic PWB Cover
Disposal Legend:
A1 = B Cover Assy
A2 = C Cover Assy
A3 = LCD Module Assy
A4 = A Cover Assy
A5 = Engine Module Assy
A6 = D Cover Assy
Only Available as Assembly
Left Screw Cover
I0001
Screw M1.4X2.8
I0003
Lens Protect Film (A1)
I0004
Hinge (A1)
I0006
Speaker (A1)
I0008
LCD Module Assy (A3)
I0013
Button Stopper
I0014
A Cover Assy (A4)
I0015
Keymat
I0009
Shaft Alloy (A2)
I0010
C Cover Sub-Assy (A2)
I0011
Earphone Jack Cover
I0012
Domesheet Assy (A5)
I0016
Microphone (A5)
I0017
Engine Module (A5)
I0018
＊
＊
FM Shielding Cover (A5)
I0020
Vibrator Clip (A6)
I0024
Vibrator (A6)
I0025
Vibrator Rubber (A6)
I0026
Main Shielding Cover (A5)
I0019
Type Label
I0021
DC Jack (A6)
I0022
Microphone Guider (A6)
I0023
D Cover Sub-Assy (A6)
I0027 ＊
Earphone Jack Rubber (A6)
I0029
Earphone Jack (A6)
I0028
Screw D14X0.57X4mm
I0030
Battery Cover Assy
I0031
Right Screw Cover
I0002
B Cover Sub-Assy (A1)
I0005 ＊
Magnet (A1)
I0007
Electro
Silicon Metal Plastic PWB Cover
Disposal Legend:
Electro
SiliconSilicon Metal PlasticPlastic PWBPWB CoverCover
Disposal Legend:
A1 = B Cover Assy
A2 = C Cover Assy
A3 = LCD Module Assy
A4 = A Cover Assy
A5 = Engine Module Assy
A6 = D Cover Assy
Only Available as Assembly
Left Screw Cover
I0001
Screw M1.4X2.8
I0003
Lens Protect Film (A1)
I0004
Hinge (A1)
I0006
Speaker (A1)
I0008
LCD Module Assy (A3)
I0013
Button Stopper
I0014
A Cover Assy (A4)
I0015
Keymat
I0009
Shaft Alloy (A2)
I0010
C Cover Sub-Assy (A2)
I0011
Earphone Jack Cover
I0012
Domesheet Assy (A5)
I0016
Microphone (A5)
I0017
Engine Module (A5)
I0018
＊
＊
FM Shielding Cover (A5)
I0020
Vibrator Clip (A6)
I0024
Vibrator (A6)
I0025
Vibrator Rubber (A6)
I0026
Main Shielding Cover (A5)
I0019
Type Label
I0021
DC Jack (A6)
I0022
Microphone Guider (A6)
I0023
D Cover Sub-Assy (A6)
I0027 ＊
Earphone Jack Rubber (A6)
I0029
Earphone Jack (A6)
I0028
Screw D14X0.57X4mm
I0030
Battery Cover Assy
I0031
Right Screw Cover
I0002
B Cover Sub-Assy (A1)
I0005 ＊
Magnet (A1)
I0007
