Nokia RM-340 - Bluetooth Self Tests in Phoenix

Results
Bit Error Rate test result is displayed in the Bit Error Rate (BER) Tests pane in the Bluetooth LOCALS window.

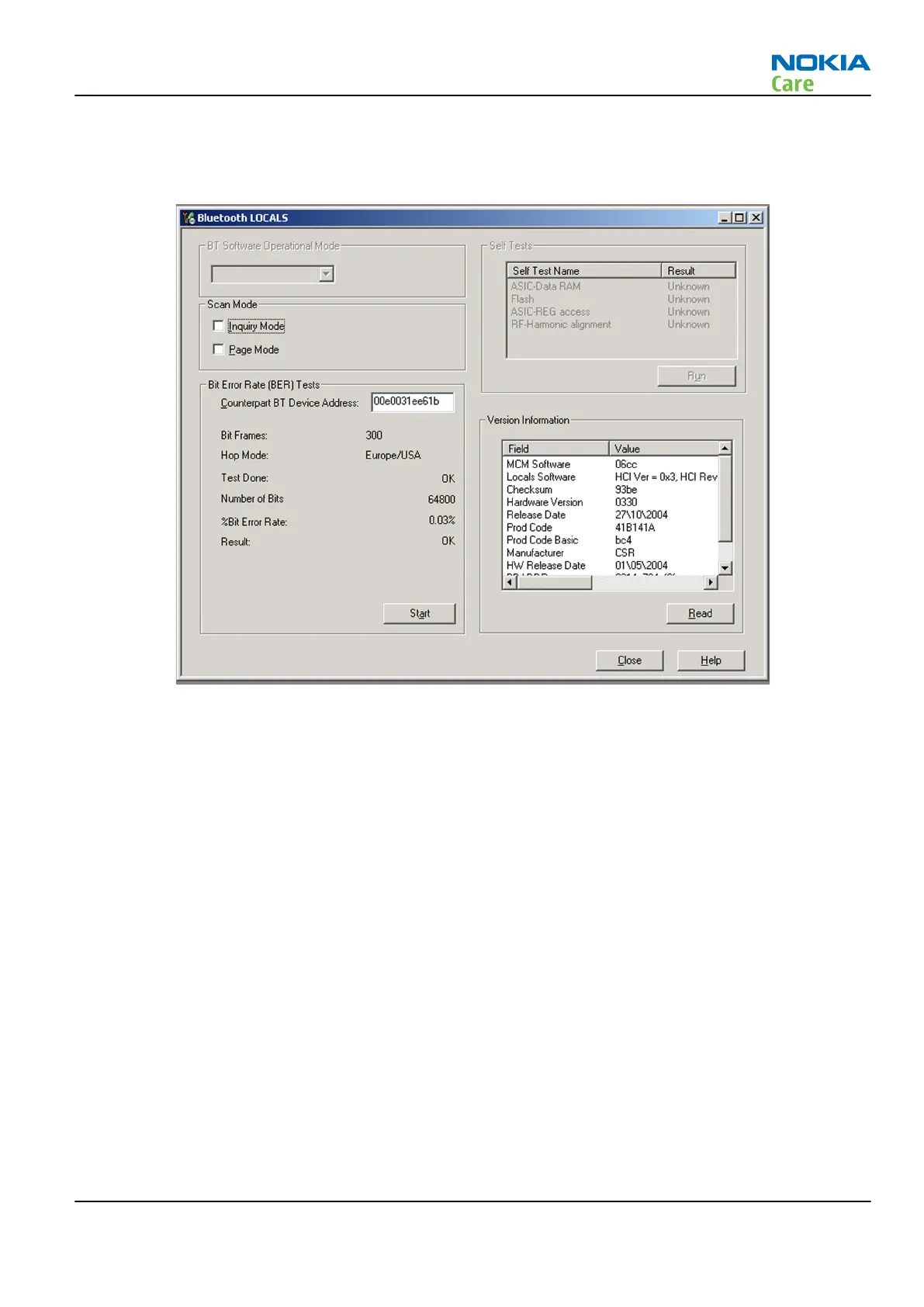

Figure 87 BER test result
Bluetooth self tests in Phoenix
Steps
1. Start
Phoenix service software.
2. ChooseFile→Scan Product.
3. Place the phone to a flash adapter.
4. From the Mode drop-down menu, set mode to Local.
5. Choose Testing→Self Tests.
6. In the
Self Tests window check the following Bluetooth related tests:
• ST_LPRF_IF_TEST
• ST_LPRF_AUDIO_LINES_TEST
• ST_BT_WAKEUP_TEST
